Miniature Stile & Rail
These miniature Stile and Rail sets from Whiteside work just like their full size counterparts (see below). They feature a reduced flattern and a reduced tongue and groove (5/32" x 1/4") suitable for smaller projects. Works with 7/16" to 3/4" thick stock.

 Place your order for Whiteside Router bits before 2:30pm ET Mon-Fri to have your order ship same Day!

Pattern Reveal Width Large Diameter Stock Size Set Number Stile Cutter Number Rail Cutter Number
1/2" SHANK

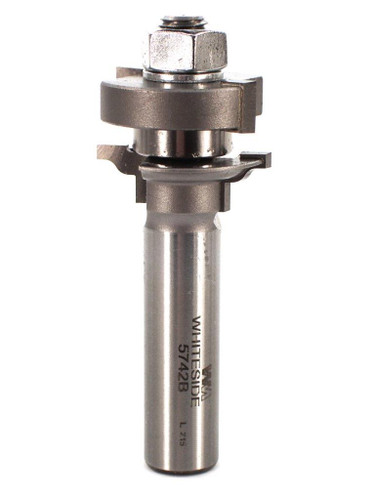

Round 3/16" 1 1/8" 7/16"-3/4" 5740 5740A 5740B
Ogee 1/4" 1 1/8" 7/16"-3/4" 5742 5742A 5742B



For Individual Bits:  Add A to Part Number for Stile Cutter.
  Add B to Part Number for Rail Cutter.
  Example: 5740A - Round Stile Cutter
Replacement Parts:  Stile Groover - 5740AG
  Rail Groover - 5740BG
  Bearing - B27



Full Size Stile & Rail

Make full size Stile and Rail joints on your router table. The interlocking design plus the raised panel groove are both cut in one pass. Ball bearing guides control the cutting depth and also allow use on rounded, arched, or special shaped doors. With these two piece sets, simply switch router bits to change from cutting stiles to cutting rails. Ideal for stock from 5/8" to 7/8" thick.



Pattern Reveal Width Cutting Length Large Diameter Set Number Stile Cutter Number Rail Cutter Number
1/2" SHANK

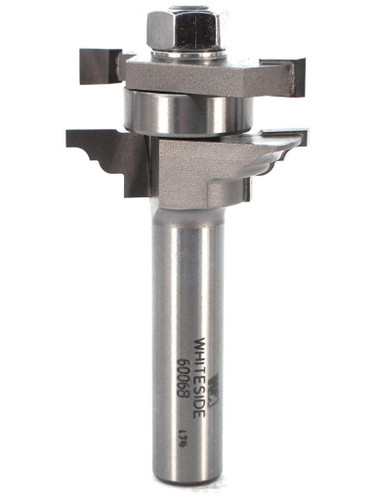

Round 1/4" 1" 1 5/8" 6001 6001A 6001B
Ogee 3/8" 7/8" 1 5/8" 6002 6002A 6002B
Bead 3/8" 7/8" 1 5/8" 6003 6003A 6003B
Straight 3/8" 7/8" 1 5/8" 6004 6004A 6004B
Traditional 3/8" 7/8" 1 5/8" 6005 6005A 6005B
Classical 3/8" 7/8" 1 5/8" 6006 6006A 6006B



For Individual Bits: Add A to Part Number for Stile Cutter.
  Add B to Part Number for Rail Cutter.
  Example: 6001A - Round Stile Cutter
Replacement Parts: Groover - 6001G
  Bearing - B5



Plywood Panel Stile & Rail
This set-up is for cabinet door construction with undersized 1/4" plywood panels. (Actual panel thickness of 7/32" or 5.5 mm). Whiteside's conversion kit #6000X converts the regular full size Stile and Rail Bits to the narrower groove required for these plywood panels. This kit gives you the flexibility to do either plywood panels or raised panels. Plus, it can be used on any Whiteside full size Stile and Rail bits that you may already own.
Our two most popular Stile and Rail sets are also available ready to use just for plywood panel construction. Order Part Number 6001X for round pattern or Part Number 6002X for ogee pattern. 1/2" Shank only.



Stile & Rail Glass Doors

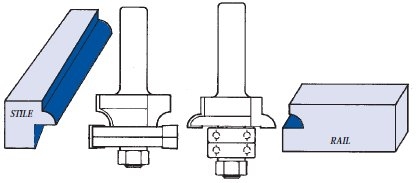

Make the Stile & Rail cuts for glass doors using Whiteside's full size Stile & Rail Sets. No extra components are required. All that's needed is to stagger the cutting edges and "stack" both groovers on the Stile bit. Use both bearings (no groover) on the Rail bit. See Drawing. Now make your cuts just like in normal door construction - Cut the inside edges of all four pieces with the Stile Bit. Trim the ends of the Rails with the Rail bit. Assemble door and insert glass pane. Use clips or corner trim mold on the back side to hold the pane in place.

Whiteside Shaker Stile and Rail Bits

Whiteside Shaker Stile and Rail Bits are ideal for making Shaker or Misshion Style doors.  These Stile and Rail bits are intended for Plywood material 7/32" thick.  The set includes a Stile Bit with a 1/2" shank and one 7/32" kerf groover, and a Rail bit with 1/2" shank and 2- 5/16" kerf groovers.

Whiteside 5990

!
