2 Flute Compression Spirals
2 Flute Compression (Up-Down) Spiral Router Bits - Left-Hand Rotation, Solid Carbide - Southeast Tool
| Cutting Diameter | Cutting Length | Shank Diameter | Overall Length | Part # |
|---|---|---|---|---|
| 1/4" | 1" | 1/4" | 2 1/2" | SLUD648 |
| 3/8" | 1 1/4" | 3/8" | 3" | SLUD650 |
| 1/2" | 1 1/4" | 1/2" | 3" | SLUD655 |

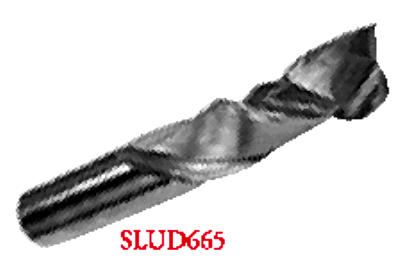

| 1/2" | 1 5/8" | 1/2" | 3 1/2" | SLUD665 |
| 1/2" | 2" | 1/2" | 4" | SLUD673 |
| 5/8" | 1 1/2" | 5/8" | 4" | SLUD675 |
| 5/8" | 2" | 5/8" | 4" | SLUD680 |
| 3/4" | 1 1/2" | 3/4" | 4" | SLUD685 |
| 3/4" | 2" | 3/4" | 4" | SLUD690 |
| 3/4" | 2 1/2" | 3/4" | 5" | SLUD696 |
2 Flute Compression (Up-Down) Spiral Router Bits - Right-Hand Rotation, Solid Carbide - Southeast Tool
Chipbreakers can be added to compression bits by adding CB to end of part number: SUD555CB
| Cutting Diameter | Cutting Length | Shank Diameter | Overall Length | Part # |
|---|---|---|---|---|
| 1/4" | 1" | 1/4" | 2 1/2" | SUD448 |
| 5/16" | 1 1/4" | 5/16" | 3" | *SUD460 |
| 5/16" | 1" | 5/16" | 3" | *SUD462 |
| 3/8" | 1 1/4" | 3/8" | 3" | SUD550 |
| 3/8" | 1 1/4" | 3/8" | 3" | SUD551 |
| 3/8" | 1 1/2" | 3/8" | 3" | SUD551A |
| 1/2" | 1" | 1/2" | 3" | *SUD553 |
| 1/2" | 1" | 1/2" | 3 1/2" | SUD553A |
| 1/2" | 1.125 | 1/2" | 3" | SUD554 |
| 1/2" | 1 1/4" | 1/2" | 3" | SUD555 |
| 1/2" | 1 1/4" | 1/2" | 3" | *SUD557 |
| 1/2" | 1 3/8" | 1/2" | 3 1/2" | SUD560 |
| 1/2" | 1 5/8" | 1/2" | 3 1/2" | SUD565 |
| 1/2" | 1 5/8" | 1/2" | 3 1/2" | *SUD567 |
| 1/2" | 1 5/8" | 1/2" | 4" | SUD570 |
| 1/2" | 1 3/4" | 1/2" | 4" | SUD571 |
| 1/2" | 2" | 1/2" | 4" | SUD573 |
| 5/8" | 1 1/2" | 5/8" | 4" | SUD575 |
| 5/8" | 2" | 5/8" | 4" | SUD580 |
| 3/4" | 1 1/2" | 3/4" | 4" | SUD585 |
| 3/4" | 2" | 3/4" | 4" | SUD590 |
| 3/4" | 2 1/2" | 3/4" | 4" | SUD592 |
| 3/4" | 3" | 3/4" | 6" | SUD594 |
*3/16" Upcut For Mortise Cuts
