V-Groove Router Bits
 |
V-groove router bits create a V shaped channel and are most often used to create an architectural detail, breaking up large panels or hiding seams. We carry a variety of angles and sizes for large cuts or intricate detail work in both CNC and hand routing operations. |
60 Degree V-Grooving Bits
|
Angle Degree |
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|---|
| 60 deg | 6mm | 12mm | 6mm | 64mm | Vortex | 3860 |
| 60 deg | 1/4" | 1/2" | 1/4" | 3" | Vortex | 3830 |
| 60 deg | 1/4" | 7/32" | 1/4" | 1-1/2" | Whiteside | 1540 |
| 60 deg | 1/4" | 7/32" | 1/4" | 2" | Whiteside | 1541 |
| 60 deg | 1/4" | 7/32" | 1/2" | 2" | Southeast Tool | SE1541 |
| 60 deg | 1/4" | 7/32" | 1/4" | 1-1/2" | Southeast Tool | SCVG264 |
| 60 deg | 1/4" | 7/32" | 1/4" | 2-1/2" | Southeast Tool | SCVG264-212 |
| 60 deg | 3/8" | 5/8" | 3/8" | 3" | Vortex | 3840 |
| 60 deg | 12mm | 16mm | 12mm | 76mm | Vortex | 3870 |
| 60 deg | 1/2" | 7/16" | 1/4" | 2" | Whiteside | 1550 |
| 60 deg | 1/2" | 5/8" | 1/4" | 2" | Southeast Tool | SE1550 |
| 60 deg | 1/2" | 7/16" | 1/2" | 2-1/4" | Whiteside | 1560 |
| 60 deg | 1/2" | 5/8" | 1/2" | 2-1/4" | Southeast Tool | SE1560 |
90 Degree V-Grooving Bits
|
Angle Degree |
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|---|
| 90 deg | 6mm | 12mm | 6mm | 64mm | Vortex | 3865 |
| 90 deg | 1/4" | 1/2" | 1/4" | 3" | Vortex | 3835 |
| 90 deg | 1/4" | 1/8" | 1/4" | 1-1/2" | Whiteside | 1500 |
| 90 deg | 1/4" | 1/8" | 1/4" | 1-1/2" | Southeast Tool | SCVG260 |
| 90 deg | 3/8" | 5/8" | 3/8" | 3" | Vortex | 3845 |
| 90 deg | 3/8" | 3/16" | 1/4" | 1-7/8" | Whiteside | 1501 |
| 90 deg | 3/8" | 1/2" | 1/4" | 1-3/4" | Southeast Tool | SE1501 |
| 90 deg | 12mm | 16mm | 12mm | 76mm | Vortex | 3875 |
| 90 deg | 1/2" | 13/64" | 1/2" | 3" | Vortex | 3880 |
| 90 deg | 1/2" | 5/8" | 1/2" | 3" | Vortex | 3855 |
| 90 deg | 1/2" | 1/4" | 1/4" | 1-7/8" | Whiteside | 1502 |
| 90 deg | 1/2" | 1/2" | 1/4" | 1-3/4" | Southeast Tool | SE1502 |
| 90 deg | 1/2" | 1/2" | 1/4" | 2" | Whiteside | 1503 |
| 90 deg | 1/2" | 1/2" | 1/2" | 2-1/4" | Southeast Tool | SE1503 |
| 90 deg | 5/8" | 5/8" | 1/4" | 2" | Southeast Tool | SE1502A |
| 90 deg | 3/4" | 3/8" | 1/2" | 2-1/4" | Whiteside | 1504 |
| 90 deg | 3/4" | 5/8" | 1/2" | 2-1/2" | Southeast Tool | SE1504 |
| 90 deg | 3/4" | 5/8" | 1/4" | 2" | Southeast Tool | SE1502B |
| 90 deg | 1" | 1/2" | 1/2" | 2-1/4" | Whiteside | 1506 |
| 90 deg | 1" | 3/4" | 1/2" | 2-3/4" | Southeast Tool | SE1505 |
| 90 deg | 1-1/2" | 3/4" | 1/2" | 2-3/4" | Whiteside | 1508 |
| 90 deg | 1-1/2" | 1" | 1/2" | 2-1/2" | Southeast Tool | SE1507 |
| 90 deg | 2" | 1-1/4" | 1/2" | 2-3/4" | Southeast Tool | SE1508 |

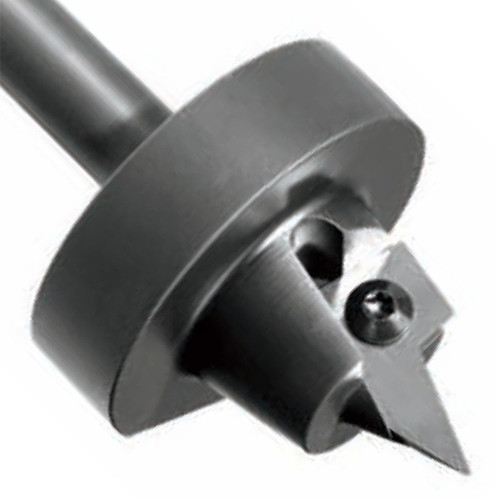

Insert V-Groove Bits
|
Angle Degree |
Cutting Depth |
Shank Diameter |
Manufacturer |
Part # |
|---|---|---|---|---|
| 45 deg | 5/8" | 1/2" | Vortex | 7075 |
| 45 deg | 1" | 1/2" | Vortex | 7080 |
| 60 deg | .966" | 1/2" | Vortex | 7085 |
| 90 deg | .730" | 1/2" | Vortex | 7050 |
| 90 deg | 1" | 1/2" | Vortex | 7055 |
| 90 deg | 1" | 3/4" | Vortex | 7060 |
| 90 deg | 15.5mm | 1/2" | Southeast Tool | SEIV90-12 |
| 91 deg | 12mm | 1/2" | Southeast Tool | SEIV91-12 |
-
Southeast Tool
V-Groove Bit, 120deg Angle, 1-3/4 Dia, 1/2 Cut Length, 1/2 Shank, Southeast Tool SE1526V-Groove Router Bits (120deg Angle) 60deg per side - 1/2 Shank, Carbide Tipped - Southeast Tool SE15…
MSRP: $68.89$59.68 -
Southeast Tool
V-Groove Bit, 90deg Angle, 2" Dia, 1-1/4 Cut Length, 1/2 Shank, Southeast Tool SE1508V-Groove Router Bits (90deg Angle) 45deg per side - 1/2 Shank, Carbide Tipped - Southeast Tool SE150…
MSRP: $93.62$81.11 -
Southeast Tool
V-Groove Bit, 60deg Angle, 1/2 Dia, 5/8 Cut Length, 1/4 Shank, Southeast Tool SE1550V-Groove Router Bits (60deg Angle) 30deg per side - 1/4 Shank, Carbide Tipped - Southeast Tool SE155…
MSRP: $25.27$21.89 -
Vortex
90 Degree V-Point Bit, 1/2 Dia, 13/64 Cut Length, 1/2 Shank, Vortex 388090 degree, V-Point, Straight Router Bits, Solid Carbide - Vortex 3880. Cutting Edge Diameter 1/2, Cu…
MSRP: $143.93$131.93 -
Vortex
60deg V-Groove Insert Bit, .966" Cut Depth, 1/2" Shank, Vortex 708560deg (30deg per side) V-Groove Insert router bit Features a .966" depth of cut with a 1/2&nb…
$440.78 -
Vortex
45deg V-Groove Insert Bit, 1" Cut Depth, 1/2" Shank, Vortex 708045deg V-Groove Insert router bit Features a 1" depth of cut with a 1/2 shank. Ideal for…
$440.78 -
Vortex
45deg V-Groove Insert Bit, 5/8" Cut Depth, 1/2" Shank, Vortex 707545deg (22-1/2deg per side) V-Groove Insert router bit Features a 5/8" depth of cut with a 1/2…
$409.32 -
Vortex
90deg V-Groove Insert Bit, 3" dia, 1-1/4" Cut Depth, 3/4" Shank, Vortex 706590deg V-Groove Insert router bit Features a 3" diameter, 1-1/4" depth of cut with a 3/4" shan…
$447.12 -
Vortex
90deg V-Groove Insert Bit, 2-1/4" Dia, 1" Cut Depth, 3/4" Shank, Vortex 706090deg V-Groove Insert router bit Features a 2-1/4" diameter, 1" depth of cut with a 3/4" shan…
$434.50 -
Vortex
90deg V-Groove Insert Bit, 2-1/4" Dia, 1" Cut Depth, 1/2" Shank, Vortex 705590deg V-Groove Insert router bit Features a 2-1/4" diameter, 1" depth of cut with a 1/2" shan…
$428.22 -
Vortex
90deg V-Groove Insert Bit, 1-1/2" Dia, .730" Cut Depth, 1/2" Shank, Vortex 705090deg V-Groove Insert router bit Features a1-1/2" Diameter, .730" depth of cut with a 1…
$409.28 -
Vortex
90 Degree V-Point Bit, 12mm Dia, 16mm Cut Length, 12mm Shank, Vortex 387590 degree, V-Point, Straight Router Bits, Solid Carbide - Vortex 3875. Cutting Edge Diameter 12mm, C…
MSRP: $161.14$147.72 -
Vortex
60 Degree V-Point Bit, 12mm Dia, 16mm Cut Length, 12mm Shank, Vortex 387060 degree, V-Point, Straight Router Bits, Solid Carbide - Vortex 3870. Cutting Edge Diameter 12mm, C…
MSRP: $165.19$151.42 -
Vortex
90 Degree V-Point Bit, 6mm Dia, 12mm Cut Length, 6mm Shank, Vortex 386590 degree, V-Point, Straight Router Bits, Solid Carbide - Vortex 3865. Cutting Edge Diameter 6mm, Cu…
MSRP: $75.06$68.80 -
Vortex
60 Degree V-Point Bit, 6mm Dia, 12mm Cut Length, 6mm Shank, Vortex 386060 degree, V-Point, Straight Router Bits, Solid Carbide - Vortex 3860. Cutting Edge Diameter 6mm, Cu…
MSRP: $77.54$71.08 -
Southeast Tool
1 Flute 90deg V-Groove Insert Bit, 25mm Dia, 15.5mm Cut Length, 1/2" Shank, Southeast Tool SEIV90-12Insert Router Bit with replaceable carbide inserts. This Insert V-Groove router bit fro…
MSRP: $253.61$219.70 -
Southeast Tool
1 Flute 91deg V-Groove Insert Bit, 18mm Dia, 12mm Cut Length, 1/2" Shank, Southeast Tool SEIV91-12Insert Router Bit with replaceable carbide inserts. This Insert V-Groove router bit fro…
MSRP: $253.61$219.70 -
Vortex
90 Degree V-Point Bit, 1/2 Dia, 5/8 Cut Length, 1/2 Shank, Vortex 385590 degree, V-Point, Straight Router Bits, Solid Carbide - Vortex 3855. Cutting Edge Diameter 1/2", C…
MSRP: $132.73$121.67 -
Vortex
60 Degree V-Point Bit, 1/2 Dia, 5/8 Cut Length, 1/2 Shank, Vortex 385060 degree, V-Point, Straight Router Bits, Solid Carbide - Vortex 3850. Cutting Edge Diameter 1/2", C…
MSRP: $135.55$124.25 -
Vortex
90 Degree V-Point Bit, 3/8 Dia, 5/8 Cut Length, 3/8 Shank, Vortex 384590 degree, V-Point, Straight Router Bits, Solid Carbide - Vortex 3845. Cutting Edge Diameter 3/8", C…
MSRP: $100.22$91.87
