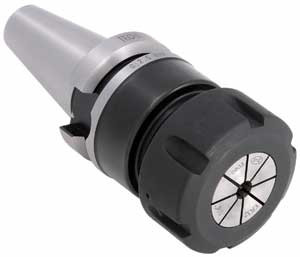

BT30 and BT35 CNC Tool Holders

All our BT30 CNC Tool Holders Include Collet Nut and are balanced to 25,000 RPMs at G2.5 and includes an individual lab certification. They measure .0001" from taper to collet pocket and are taper ground to AT3 standard.

BT 30 ER Collet Chuck Toolholders and BT 30 Syoz Toolholders allow you to handle a wide range of machining jobs without having to buy new tool holders. Simply choose the right size collet for the job, set tool depth and tighten the collet nut and pull stud to the proper torque using a torque wrench and tightening fixture.

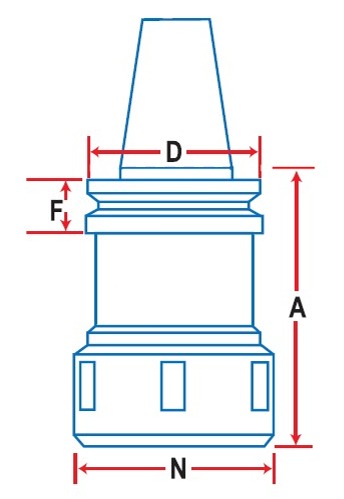

Description	D	A	F	N	Wrench	Brand	Part #
BT30 x SYOZ 25-70mm	46	70	20	60	SE03691	Southeast Tool	SE06001
BT30 x SYOZ 25-70mm w/o Slots	46	70	20	60	SE03691	Southeast Tool	SE06001-W
BT30 x ER 20-70mm w/o Slots	46	70	20	34	SE04614	Southeast Tool	SE06106-W
BT30 x ER20-70mm w/ Slots	46	70	20	35	SE04614	Southeast Tool	SE06106-slotnut
BT30 x ER20-135mm w/o Slots	46	135	20	35	SE04614	Southeast Tool	SE06107
BT30 x ER20-135mm w/ Slots	46	135	20	35	SE04614	Southeast Tool	SE06107-slotnut
BT30 x ER20-2.5” w/o Slots	46	64	20	34	SE04610	Southeast Tool	SE06108-2.5
BT30 x ER20-2.5” w/ Slots	46	64	20	35	SE04614	Southeast Tool	SE06108-2.5-slotnut
BT30 x ER25-70mm	46	70	20	42	SE04615	Southeast Tool	SE06109
BT30 x ER25-60mm	46	60	20	42	SE04615	Southeast Tool	SE06110-W-60
BT30 x ER25-135mm	46	135	20	42	SE04615	Southeast Tool	SE06111
BT30 x ER25-90mm	46	90	20	42	SE04615	Southeast Tool	SE06111-90
BT30 x ER 32-60mm w/ Slots	46	60	20	50	SE04616	Southeast Tool	SE06112
BT30 x ER 32-60mm w/o Slots	46	60	20	50	SE04616	Southeast Tool	SE06113-W-60
BT30 x ER32-60mm Komo*	46	60	20	50	SE04616	Southeast Tool	SE06113-W-60-A
BT30 x ER 32-60mm Left Hand	46	60	20	50	SE04616	Southeast Tool	SE06113-W-60L
BT30 x ER 32-70 w/ Slots	46	70	20	50	SE04616	Southeast Tool	SE06113
BT30 x ER 32-90mm w/o Slots	46	90	20	50	SE04616	Southeast Tool	SE06113-W-90
BT30 x ER 32-100mm	46	100	20	50	SE04616	Southeast Tool	SE06114
BT30 x ER40-80mm	46	80	20	63	SE04616	Southeast Tool	SE06115
BT30 x SYOZ 25-70mm w/o Slots	46	70	20	60	SE03691	Southeast Tool	SE06001-W
BT30 x SYOZ 25-70mm	46	70	20	60	SE03691	Southeast Tool	SE06001
BT35 x SYOZ 25-76mm	53	76	22	60	SE03691	Southeast Tool	SE06010
BT35 x ER 32-76mm	53	76	22	50	SE04616	Southeast Tool	SE061BT353276

Dimensions in millimeters
*Includes pull stud

Techniks
CNC Tool Holder, BT35 x ER 32, 50mm Dia, 76mm Length,Techniks 161BT35-ER3276
BT35 CNC Tool Holer, BT35 x ER 32- 76mm - Techniks 061BT35-ER3276; Collet Nut is in…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $252.00

Was:

Now: $207.72
Southeast Tool
CNC Tool Holder, BT30 x ER25, 42mm Dia, 60mm Length, Southeast Tool SE06110-W-60
BT30 CNC Tool Holer, BT30 x ER25- 60mm without nut - Southeast Tool SE06110-W-60; Us…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $242.99

Was:

Now: $210.49
Southeast Tool
CNC Tool Holder, BT30 x ER40, 63mm Dia, 80mm Length, Southeast Tool SE06115
BT30 CNC Tool Holer, BT30 x ER40-80mm - Southeast Tool SE06115; Collet Nut is included with CN…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $278.65

Was:

Now: $241.38
Southeast Tool
CNC Tool Holder, BT30 x ER32, 41mm Flat Komo, 50mm Dia, 60mm Length, Southeast Tool SE06113-W-60-A
BT30 CNC Tool Holer for Komo, BT30 x ER32-60mm with collet nut - Southeast Tool SE06…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $336.12

Was:

Now: $291.16
Southeast Tool
CNC Tool Holder, BT30 x ER 32, 50mm Dia, 100mm Length, Southeast Tool SE06114
BT30 CNC Tool Holer, BT30 x ER32-100mm - Southeast Tool SE06114; Collet Nut is included with C…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $249.48

Was:

Now: $216.12
Southeast Tool
CNC Tool Holder, BT30 x ER25, 42mm Dia, 70mm Length, Southeast Tool SE06109
BT30 CNC Tool Holer, BT30 x ER25-70mm - Southeast Tool SE06109; Collet Nut is included with CNC Tool…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $219.03

Was:

Now: $189.74
Southeast Tool
CNC Tool Holder, BT30 x ER25, 42mm Dia, 90mm Length, Southeast Tool SE06111-90
BT30 CNC Tool Holer, BT30 x ER25-70mm - Southeast Tool SE06111-90; Collet Nut is included with…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $242.99

Was:

Now: $210.49
Southeast Tool
CNC Tool Holder, BT30 x ER25, 42mm Dia, 135mm Length, Southeast Tool SE06111
BT30 CNC Tool Holer, BT30 x ER25-135mm - Southeast Tool SE06111; Collet Nut is included with C…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $242.99

Was:

Now: $210.49
Southeast Tool
CNC Tool Holder, BT30 x ER20 w/ Slots, 35mm Dia, 63.5 Length, Southeast Tool SE06108-2.5-SLOTNUT
BT30 CNC Tool Holer, BT30 x ER20-2.5" with slotted nut - Southeast Tool SE06108-2.5-slotnut; Co…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $222.86

Was:

Now: $193.05
Southeast Tool
CNC Tool Holder, BT30 x ER20 w/ Slots, 35mm Dia, 135mm Length, Southeast Tool SE06107-SLOTNUT
BT30 CNC Tool Holer, BT30 x ER20-135mm, with slotted nut - Southeast Tool SE06106-slotnut…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $244.30

Was:

Now: $211.63
Southeast Tool
CNC Tool Holder, BT30 x ER20 w/ Slots, 35mm Dia, 70mm Length, Southeast Tool SE06106-SLOTNUT
BT30 CNC Tool Holer, BT30 x ER20-70mm with sloted nut - Southeast Tool SE06106-slotnut; Collet …

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $202.51

Was:

Now: $175.42
Southeast Tool
CNC Tool Holder, BT35 x ER 32, 50mm Dia, 76mm Length, Southeast Tool SE061BT353276
BT35 CNC Tool Holer, BT35 x ER 32- 76mm - Southeast Tool SE061BT353276; Collet Nut …

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $361.03

Was:

Now: $312.74
Southeast Tool
CNC Tool Holder, BT30 x ER 32 w/o Slots, 50mm Dia, 90mm Length, Southeast Tool SE06113-W-90
BT30 and BT35 Chucks - Southeast Tool SE06113-W-90; Order Collet Nut separately unless it is i…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $442.26

Was:

Now: $383.12
Southeast Tool
LH CNC Tool Holder, BT30 x ER 32, 50mm Dia, 60mm Length, Southeast Tool SE06113-W-60L
Left Hand BT30 CNC Tool Holer, BT30 x ER32-60mm - Southeast Tool SE06113-W-60L; Collet Nut is …

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $423.89

Was:

Now: $367.20
Southeast Tool
CNC Tool Holder, BT30 x ER 32 w/o Slots, 50mm Dia, 60mm Length, Southeast Tool SE06113-W-60
BT30 CNC Tool Holer, BT30 x ER32-60mm without slots - Southeast Tool SE06113-W-60; Collet Nut i…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $277.59

Was:

Now: $240.46
Southeast Tool
CNC Tool Holder, BT30 x ER 32 w/ Slots, 50mm Dia, 70mm Length, Southeast Tool SE06113
BT30 CNC Tool Holer, BT30 x ER32-70mm with slots - Southeast Tool SE06113; Collet Nut is includ…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $224.66

Was:

Now: $194.61
Southeast Tool
CNC Tool Holder, BT30 x ER 32 w/ Slot, 50mm Dia, 60mm Length, Southeast Tool SE06112
BT30 CNC Tool Holer, BT30 x ER32-60mm with slots - Southeast Tool SE06112; Collet Nut is includ…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $224.66

Was:

Now: $194.61
Southeast Tool
CNC Tool Holder, BT30 x ER 20 w/o Slot, 34mm Dia, 70mm Length , Southeast Tool SE06106-W
BT30 CNC Tool Holer, BT30 x ER20-70mm, without slots - Southeast Tool SE06106-W; Collet Nu…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $221.14

Was:

Now: $191.55
Southeast Tool
CNC Tool Holder, BT35 x SYOZ 25, 60mm Dia, 76mm Length, Southeast Tool SE06010
BT35 CNC Tool Holer, BT35 x SYOZ 25-76mm - Southeast Tool SE06010; Collet Nut is included…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $377.62

Was:

Now: $327.12
Southeast Tool
CNC Tool Holder, BT30 x SYOZ 25 w/o Slots, 60mm Dia, 70mm Length, Southeast Tool SE06001-W
BT30 CNC Tool Holer, BT30 x SYOZ 25-70mm, without slots - Southeast Tool SE06001-W; Colle…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $299.46

Was:

Now: $259.41
