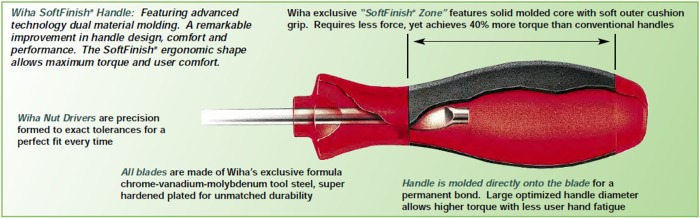

Wiha nut drivers are precision formed from CVM hardened steel for a perfect fit on the fastener. The large diameter SoftFinish handle is bonded directly to the blade and formed from two different soft components allowing additional torque to be applied with ease.
Size | Blade Length (mm) | Overall Length (mm) | Part # |
---|---|---|---|
9/64 | 125 | 238 | 34134 |
5/32 | 125 | 238 | 34135 |
3/16 | 125 | 238 | 34136 |
7/32 | 125 | 238 | 34137 |
1/4 | 125 | 246 | 34138 |
5/16 | 125 | 246 | 34139 |
11/32 | 125 | 246 | 34140 |
3/8 | 125 | 246 | 34141 |
7/16 | 125 | 246 | 34142 |
1/2 | 125 | 246 | 34143 |
9/16 | 125 | 246 | 34144 |
5/8 | 125 | 246 | 34145 |
Size | Blade Length (mm) | Overall Length (mm) | Part # |
---|---|---|---|
5 | 125 | 238 | 34120 |
5.5 | 125 | 238 | 34121 |
6 | 125 | 238 | 34122 |
7 | 125 | 238 | 34123 |
8 | 125 | 238 | 34124 |
9 | 125 | 238 | 34125 |
10 | 125 | 238 | 34126 |
11 | 125 | 247 | 34127 |
12 | 125 | 247 | 34128 |
13 | 125 | 247 | 34129 |
14 | 125 | 247 | 34130 |
15 | 125 | 247 | 34131 |
16 | 125 | 247 | 34132 |
17 | 125 | 247 | 34133 |
Sizes Included | Part # | |
---|---|---|
3/16, 1/4, 5/16, 11/32, 3/8, 7/16, 1/2" | 34193 | |
5, 5.5, 6, 7, 8, 10, 13mm |
34194 | |
3/16, 7/32, 1/4, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8" | 34195 |
SoftFinish® Heavy Duty Nut Drivers |
|
Hex bolster for additional torque |
Size | Blade Length (mm) | Overall Length (mm) | Part # |
---|---|---|---|
3/16 | 125 | 231 | 34753 |
1/4 | 125 | 238 | 34759 |
5/16 | 125 | 238 | 34765 |
3/8 | 125 | 238 | 34771 |
7/16 | 125 | 246 | 34774 |
1/2 | 125 | 246 | 34777 |
Size | Blade Length (mm) | Overall Length (mm) | Part # |
---|---|---|---|
7 | 125 | 238 | 34712 |
8 | 125 | 238 | 34715 |
9 | 125 | 238 | 34718 |
10 | 125 | 238 | 34721 |
11 | 125 | 247 | 34724 |
12 | 125 | 247 | 34727 |
13 | 125 | 247 | 34730 |
Sizes Included | Part # | |
---|---|---|
5.0*, 6.0*, 8.0, 10.0, 11.0mm | 34791 | |
3/16, 1/4, 5/16, 3/8, 7/16, 1/2 | 34792 |
*Standard blade - no hex bolster
