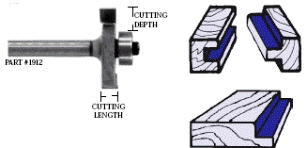

Slotting and Rabbeting Router Bits


Slotting & Rabbeting - Whiteside

Place your order for Whiteside Router bits before 2:30pm ET Mon-Fri to have your order ship same Day

Large DiameterCutting LengthCutting DepthOverall LengthPart Number
1/4" SHANK
1 1/4" 1/8" 3/8" 2" 1904
1 1/2" 5/32" 1/2" 1 3/4" *1908
1 1/4" 1/4" 3/8" 2" 1912
1 1/4" 3/8" 3/8" 2" 1916
1 1/2" 1/2" 1/2" 2" 1920
1/2" SHANK
1 1/4" 1/8" 3/8" 2" 1906
1 1/2" 5/32" 1/2" 2" *1910
1 1/4" 1/4" 3/8" 2" 1914
1 1/4" 3/8" 3/8" 2 1/8" 1918
1 1/2" 1/2" 1/2" 2 1/4" 1922
1 1/4" 3/4" 3/8" 2 1/2" 1924

B3 Bearing supplied.
*Proper Size for Biscuit Joining
BB501 - Bearing Kit with Wrench. Increase the versatility of your Rabbeting Bits by simply changing the bearing size to vary your cutting depth. This set allows 1/4", 5/16", 3/8", & 7/16" cutting depth on all 1 1/4" bits or 3/8", 7/16", 1/2", & 9/16" cutting depth on all 1 1/2" bits.

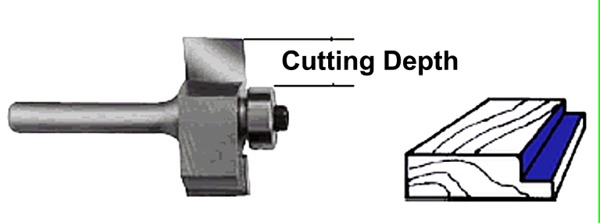

Rabbet Bits

Large DiameterCutting LengthCutting DepthBearing NumberPart Number
1/4" SHANK
7/8" 1/2" 1/4" B2 1880
1 1/4" 1/2" 3/8" B3 1900
1 3/8" 1/2" 1/2" B2 1951
1/2" SHANK
7/8" 5/8" 1/4" B2 1890
1 1/4" 1/2" 3/8" B3 1901
1 3/8" 1/2" 1/2" B2 1954
1 7/8" 1" 3/4" B2 1959





Mulit Rabbet Bit Sets

whitesidemachine-multi-rabbet-set-bits.jpg whitesidemachine-multi-rabbet-set-profile.jpg
Large DiameterCutting LengthShank# of BearingsCutting DepthPart Number
1 3/8" 1/2" 1/4" 8 1/8", 3/16", 1/4", 1/2", 7/16", 3/8", 5/16" 1952
1 3/8" 1/2" 1/2" 8 1/8", 3/16", 1/4", 1/2", 7/16", 3/8", 5/16" 1955
1 7/8" 1" 1/2" 5 1/2", 9/16", 11/16", 5/8", 3/4" 1960

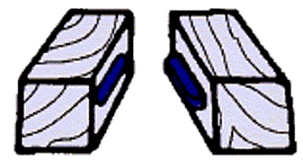

Biscuit Joining Kit

This kit contains our 5/32" Rabbeting Bit with 1/2" B3 bearing for cutting slots to cut #20 Biscuits. Also includes alternate bearings B14 and B15 to cut slots for #0 and #10 Biscuits. Hex Wrench included.

DescriptionPart Number
1/4" shank kit 1940
1/2" shank kit 1945
