Chamfer Router Bits
45 Degree Chamfer Bits - Whiteside
Chamfer bits are used to cut a beveled edge on the profile. They can also be used to create angled edges for constructing boxes. For a 4-sided box, use a 45 degree chamfer bit. For a 6 sided box, use a 30 degree chamfer bit and for an 8 sided box use a 22 1/2 degree chamfer bit. Whiteside Chamfer bits have a reputation for quality and dependability. Choose from one of the standard Whiteside Chamfer bits below, or get a quote on a custom Chamfer bit.
Place your order for Whiteside Router bits before 2:30pm ET Mon-Fri to have your order ship same Day!

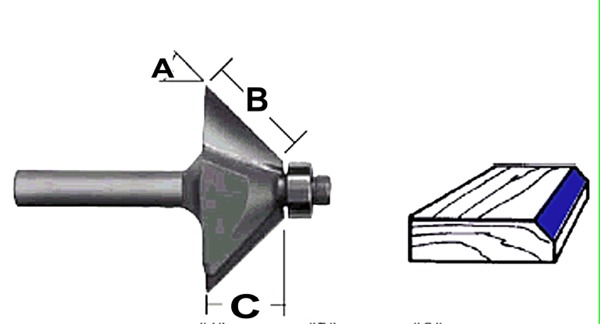

| "A" Degree of Angle | "B" Cutting Length | "C" Cutting Height | Overall Length | Part Number |
|---|---|---|---|---|
| 1/4" SHANK | ||||
| 45° | 5/8" | 7/16" | 2" | 2302 |
| 1/2" SHANK | ||||
| 45° | 5/8" | 7/16" | 2 1/4" | 2305 |
| 45° | 1 1/16" | 3/4" | 2 1/2" | 2306 |
| 45° | 1 1/2" | 1 1/16" | 3" | 2310 |
Bearing Number: B3
Edge Bevel
Choose from a great selection of Whiteside Edge Bevel bits with varying bevel angles and cutting lengths and depths. Choose from one of the standard Whiteside Edge Bevel Bits below, or get a quote on a custom Edge Bevel Bit.

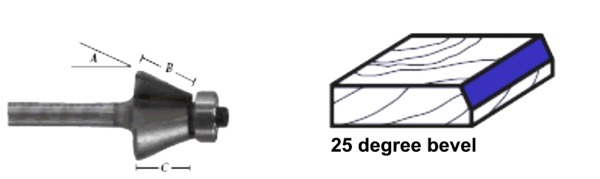

| "A" Degree of Angle | "B" Cutting Length | "C" Cutting Height | Overall Length | Part Number |
|---|---|---|---|---|
| 1/4" SHANK | ||||
| 7° | 3/8" | 3/8" | 2 1/8" | * 2298 |
| 15° | 1/2" | 1/2" | 2" | 2300 |
| 15° | 1/4" | 1/4" | 2" | * 2300A |
| 25° | 9/16" | 1/2" | 2" | 2301 |
| 30° | 7/8" | 3/4" | 2 3/4" | (1) 2308 |
| 1/2" SHANK | ||||
| 15° | 1" | 15/16" | 2 3/4" | (3) 2325 |
| 22 1/2° | 15/16" | 7/8" | 2 3/4" | (2) 2307 |
| 30° | 7/8" | 3/4" | 2 3/4" | (1) 2309 |
| 60° | 1" | 9/16" | 2 1/4" | 2318 |
| Bearing Number: B3 |
| * Used on Laminate Trim |
| (1) Used for six sided boxes |
| (2) Used for eight sided boxes |
| (3) Used for twelve sided boxes |
-
Whiteside
45deg Chamfer Bit, 7/16 Cut Length, 1/4 Shank, Whiteside 229245deg Chamfer Router Bits - 1/4" Shank, Carbide Tipped - Whiteside 2292; 45 Degree Angle, 7/16" Cutt…
MSRP: $33.60$28.56 -
Whiteside
3 Piece Chamfer Bit Set, 1/2 Shank, Whiteside 445Whiteside 445 is a 3 Piece Chamfer Bit Set that includes our most popular sizes: Whiteside 2305-&nbs…
MSRP: $100.00$98.80 -
Whiteside
60 deg Edge Bevel Bit, 9/16 Cut Length, 1/2 Shank, Whiteside 2318Edge Bevel Router Bits (60deg Bevel) - 1/2" Shank, Carbide Tipped - Whiteside 2318; 60 Degree A…
MSRP: $101.10$85.94 -
Whiteside
15deg Edge Bevel Bit, 1/4 Cut Length, 1/4 Shank, Whiteside 2300AEdge Bevel Router Bits (15deg Bevel) - 1/4" Shank, Carbide Tipped - Whiteside 2300A; (For Laminate T…
MSRP: $25.89$22.01 -
Whiteside
15deg Edge Bevel Bit, 1" Cut Length, 1/2 Shank, Whiteside 2325Edge Bevel Router Bits (15deg Bevel) - 1/2" Shank, Carbide Tipped - Whiteside 2325; (Twelve Sided Bo…
MSRP: $39.20$33.32 -
Whiteside
45deg Chamfer Bit, 1-1/2 Cut Length, 1/2 Shank, Whiteside 231045deg Chamfer Router Bits - 1/2" Shank, Carbide Tipped - Whiteside 2310; 45 Degree Angle, 1-1/2" Cut…
MSRP: $109.20$92.82 -
Whiteside

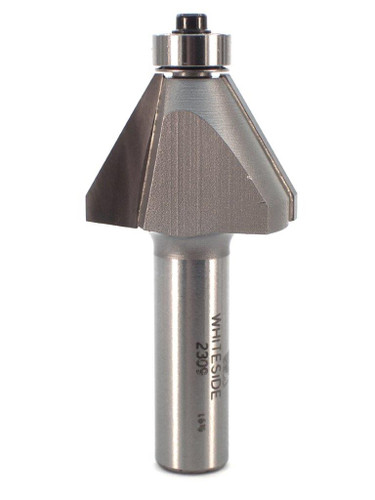

30deg Edge Bevel Bit, 7/8 Cut Length, 1/2 Shank, Whiteside 2309Edge Bevel Router Bits (30deg Bevel) - 1/2" Shank, Carbide Tipped - Whiteside 2309; (Six Sided Boxes…
MSRP: $43.39$36.88 -
Whiteside
30deg Edge Bevel Bit, 7/8 Cut Length, 1/4 Shank, Whiteside 2308Edge Bevel Router Bits (30deg Bevel) - 1/4" Shank, Carbide Tipped - Whiteside 2308; (Six Sided Boxes…
MSRP: $47.60$40.46 -
Whiteside
22-1/2deg Edge Bevel Bit, 15/16 Cut Length, 1/2 Shank, Whiteside 2307Edge Bevel Router Bits (22-1/2deg Bevel) - 1/2" Shank, Carbide Tipped - Whiteside 2307; (Eight Sided…
MSRP: $41.31$35.11 -
Whiteside

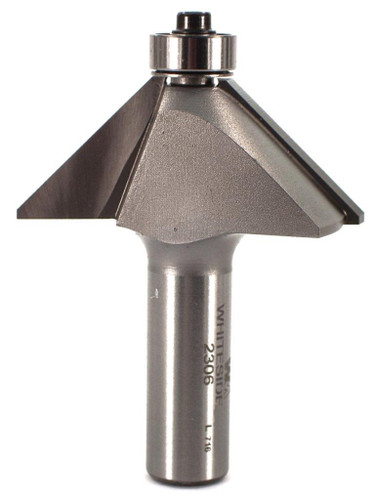

45deg Chamfer Bit, 1-1/16 Cut Length, 1/2 Shank, Whiteside 230645deg Chamfer Router Bits - 1/2" Shank, Carbide Tipped - Whiteside 2306; 45 Degree Angle, 1-1/16" Cu…
MSRP: $57.75$49.09 -
Whiteside
45deg Chamfer Bit, 5/8 Cut Length, 1/2 Shank, Whiteside 230545deg Chamfer Router Bits - 1/2" Shank, Carbide Tipped - Whiteside 2305; 45 Degree Angle, 5/8" Cutti…
MSRP: $37.11$31.54 -
Whiteside
45deg Chamfer Bit, 5/8 Cut Length, 1/4 Shank, Whiteside 230245deg Chamfer Router Bits - 1/4" Shank, Carbide Tipped - Whiteside 2302; 45 Degree Angle, 5/8" Cutti…
MSRP: $37.11$31.54 -
Whiteside
25deg Edge Bevel Bit, 9/16 Cut Length, 1/4 Shank, Whiteside 2301Edge Bevel Router Bits (25deg Bevel) - 1/4" Shank, Carbide Tipped - Whiteside 2301; 25 Degree Angle,…
MSRP: $29.67$25.22 -
Whiteside
15deg Edge Bevel Bit, 1/2 Cut Length, 1/4 Shank, Whiteside 2300Edge Bevel Router Bits (15deg Bevel) - 1/4" Shank, Carbide Tipped - Whiteside 2300; 15 Degree Angle,…
MSRP: $28.55$24.27 -
Whiteside

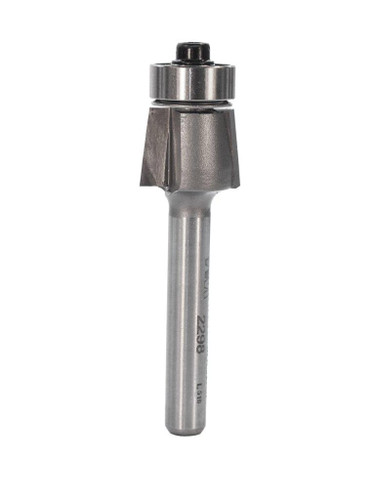

7deg Edge Bevel Bit, 3/8 Cut Length, 1/4 Shank, Whiteside 2298Edge Bevel Router Bits (7deg Bevel) - 1/4" Shank, Carbide Tipped - Whiteside 2298;(For Laminate Trim…
MSRP: $27.29$23.20
