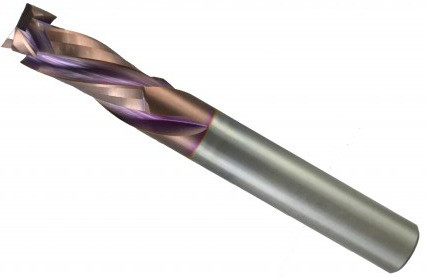

Solid Carbide MOAB Coated Compression Bits

MOAB Coated Tooling features an extended life by reducing damaging effects of heat and oxidation that occurs during cutting operations. Highly recommended for MDF, chipboard with melamine, laminates, veneered plywood and most plastics. These Southeast Tool compression bits are coated with red/brown MOAB-Plus coating for the best all around application use. MD series is extended life and HD series is max life.



2 + 2 Compression MD Series MOAB-Plus Coating

Cutting DiameterCutting LengthShankOverall LengthUpcutPart #
1/4" 7/8" 1/4" 2-1/2" 1/4" HMDUD445
3/8" 7/8" 3/8" 3" 3/16" HMDUD539
3/8" 1" 3/8" 3" 3/16" HMDUD551-1
3/8" 1-1/4" 3/8" 3" 3/16" HMDUD551
3/8" 1-1/4" 3/8" 3" 3/8" HMDUD550
1/2" 1-1/4" 1/2" 3" 5/16" HMDUD555
1/2" 1-1/4" 1/2" 3" 1/2" HMDUD558
1/2" 1-5/8" 1/2" 3-1/2" 5/16" HMDUD565
1/2" 1-5/8" 1/2" 3-1/2" 5/8" HMDUD566



3 + 3 Compression MD Series MOAB-Plus Coating

Cutting DiameterCutting LengthShankOverall LengthUpcutPart #
3/8" 7/8" 3/8" 3" 3/16" HMDUD751
3/8" 7/8" 3/8" 3" 3/8" HMDUD751A
3/8" 1-1/4" 3/8" 3" 3/16" HMDUD756
3/8" 1-1/4" 3/8" 3" 3/8" HMDUD750
1/2" 1-1/4" 1/2" 3" 3/8" HMDUD755
1/2" 1-5/8" 1/2" 3-1/2" 5/8" HMDUD795

 *3/16 Upcut for Mortise Cuts

2 + 2 Compression MD Series MOAB-Plus Coating

Cutting DiameterCutting LengthShankOverall LengthUpcutPart #
3/8" 7/8" 3/8" 3" 3/16" HHDUD539
3/8" 1" 3/8" 3" 3/16" HHDUD545
3/8" 1-1/4" 3/8" 3" 3/16" HHDUD551
3/8" 1-1/4" 3/8" 3" 3/8" HHDUD550
1/2" 1-1/4" 1/2" 3" 5/16" HHDUD555
1/2" 1-1/4" 1/2" 3" 1/2" HHDUD558
1/2" 1-5/8" 1/2" 3-1/2" 5/16" HHDUD565
1/2" 1-5/8" 1/2" 3-1/2" 5/8" HHDUD566



3 + 3 Compression MD Series MOAB-Plus Coating

Cutting DiameterCutting LengthShankOverall LengthUpcutPart #
3/8" 1-1/4" 3/8" 3" 3/16" HHDUD751
3/8" 1-1/4" 3/8" 3" 3/8" HHDUD750
1/2" 1-1/4" 1/2" 3" 3/16" HHDUD754
1/2" 1-1/4" 1/2" 3" 1/2" HHDUD758
1/2" 1-5/8" 1/2" 3-1/2" 5/8" HHDUD766
