Mortise Router Bits
 |
Mortise router bits are designed to cut a pocket (mortise) into a wood surface. Typical uses would be door hinge pockets for entry doors or the pocket half of a mortise and tennon joint in furniture building. |
Mortise Bit
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 1/2" | 3/4" | 1/4" | 2-1/8" | Whiteside | 1300 |
| 1/2" | 5/8" | 1/4" | 2" | Southeast Tool | SE1300 |
| 5/8" | 3/4" | 1/4" | 2" | Southeast Tool | SE1301 |
| 3/4" | 3/4" | 1/4" | 2" | Southeast Tool | SE1302 |
| 3/4" | 3/4" | 1/4" | 2-1/8" | Whiteside | 1302 |
| 1-1/4" | 1/2" | 1/4" | 2-1/8" | Whiteside | 1303 |
| 1-1/4" | 3/4" | 1/4" | 2" | Southeast Tool | SE1303 |
| 1-1/4" | 3/4" | 1/2" | 2-1/8" | Southeast Tool | SE1304 |
Downcut Threaded Mortise Cutter
|
Cutting Diameter |
Cutting Length |
Thread Size |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 1/2" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-500 |
| 33/64" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-515 |
| 17/32" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-531 |
| 9/16" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-562 |
| 5/8" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-625 |
| 41/64" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-640 |
| 21/32" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-656 |
| 11/16" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-687 |
| 23/32" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-719 |
| 3/4" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-750 |
| 49/64" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-765 |
| 25/32" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-781 |
| 13/16" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-812 |
| 7/8" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-875 |
| 15/16" | 5/8" | 1/4-28 | 7/8" | Whiteside | 13-937 |
| 1" | 1/2" | 1/4-28 | 1/2" | Whiteside | 13-1000 |
| 1-1/8" | 1/2" | 1/4-28 | 1/2" | Whiteside | 13-1125 |
| 1-1/4" | 1/2" | 1/4-28 | 1/2" | Whiteside | 13-1250 |
| 1-1/4" | 1/2" | 5/16-24 | 1/2" | Whiteside | 13-1250A |
Arbor for Threaded Mortise Cutter
|
Shank |
Thread Size |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|

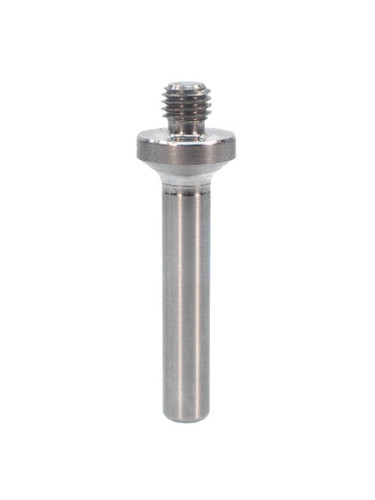

| 1/4" | 1/4-28 | 1-3/4" | Whiteside | HMA-1/4 |
| 1/2" | 1/4-28 | 1-3/4" | Whiteside | HMA-1/2 |
| 1/4" | 5/16-24 | 1-3/4" | Whiteside | HMA-1/4A |
| 1/2" | 5/16-24 | 1-3/4" | Whiteside | HMA-1/2A |
Screw-On Mortise Cutter
|
Cutting Diameter |
Cutting Length |
Thread Size |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 1/8" | 9/16" | 1/4-28 | 1-3/8" | Southeast Tool | SEH13125 |
| 9/64" | 9/16" | 1/4-28 | 1-3/8" | Southeast Tool | SEH13140 |
| 3/16+.015" | 9/16" | 1/4-28 | 1-3/8" | Southeast Tool | SEH13202 |
| 1/4-.015" | 9/16" | 1/4-28 | 1-3/8" | Southeast Tool | SEH13234 |
| 1/4" | 9/16" | 1/4-28 | 1-3/8" | Southeast Tool | SEH13250 |
| 1/4+.015" | 9/16" | 1/4-28 | 1-3/8" | Southeast Tool | SEH13265 |
| 9/32" | 9/16" | 1/4-28 | 1-3/8" | Southeast Tool | SEH13281 |
| 5/16+.15" | 9/16" | 1/4-28 | 1-3/8" | Southeast Tool | SEH13327 |
| 3/8" | 9/16" | 1/4-28 | 1-3/8" | Southeast Tool | SEH13375 |
| 3/8+.030" | 9/16" | 1/4-28 | 1-3/8" | Southeast Tool | SEH13406 |
| 15/32" | 9/16" | 1/4-28 | 1-3/8" | Southeast Tool | SEH13469 |
| 31/64" | 9/16" | 1/4-28 | 1-3/8" | Southeast Tool | SEH13484 |
| 1/2" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13500 |
| 33/64" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13515 |
| 17/32" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13531 |
| 9/16" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13562 |
| 5/8" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13625 |
| 41/64" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13640 |
| 21/32" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13656 |
| 11/16" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13687 |
| 23/32" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13719 |
| 3/4" | 5/8" | 1/4-28 | 2-3/8" | Southeast Tool | SE13750 |
| 49/64" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13764 |
| 25/32" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13781 |
| 13/16" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13812 |
| 7/8" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13875 |
| 15/16" | 5/8" | 1/4-28 | 7/8" | Southeast Tool | SE13937 |
| 1" | 1/2" | 1/4-28 | 1/2" | Southeast Tool | SE131000 |
| 1-1/8" | 1/2" | 1/4-28 | 1/2" | Southeast Tool | SE131125 |
| 1-1/4" | 1/2" | 1/4-28 | 1/2" | Southeast Tool | SE131250 |
| 1-3/8" | 1/2" | 1/4-28 | 1/2" | Southeast Tool | SE131375 |
| 1-1/4" | 5/8" | 5/16-24 | 5/8" | Southeast Tool | SE131250-516 |
| 1-1/4" | 1/2" | 5/16-24 | 5/8" | Southeast Tool | SE131250-516A |
Arbor for Screw-on Mortise Cutter
|
Shank |
Thread Size |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|
| 1/4" | 1/4-28 | 1-3/4" | Southeast Tool | SEHMA-14 |
| 1/2" | 1/4-28 | 1-3/4" | Southeast Tool | SEHMA-12 |
| 1/2" | 1/4-28 | 2-5/8" | Southeast Tool | SEHMA-12-XL |
| 1/2" | 1/4-28 | 3-1/4" | Southeast Tool | SEHMA-12-XXL |
| 1/4" | 5/16-24 | 2-5/8" | Southeast Tool | SEHMA-14-516 |
| 1/2" | 5/16-24 | 1-3/4" | Southeast Tool | SEHMA-12-516 |
Stair Tread Bits
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 3/4" | 1/2" | 1/4" | 1-7/8" | Southeast Tool | SE1590 |
| 3/4" | 1/2" | 1/2" | 2-1/2" | Southeast Tool | SE1592 |
| 1" | 1/2" | 1/2" | 2-1/2" | Southeast Tool | SE1596 |
| 1-1/2" | 1/2" | 1/2" | 2-1/2" | Southeast Tool | SE1598 |
Carving Rougher Bits
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 1/2" | 1-1/8" | 1/4" | 2-1/2" | Southeast Tool | SECR500RH |
| 5/8" | 1-1/8" | 1/4" | 2-1/2" | Southeast Tool | SECR625RH |
| 5/8" | 1-1/8" | 11mm | 2-1/2" | Southeast Tool | SECR625RH-11 |
| 3/4" | 1-1/8" | 1/4" | 2-1/2" | Southeast Tool | SECR750RH |
| 3/4" | 1-1/8" | 11mm | 2-1/2" | Southeast Tool | SECR750RH-11 |
| 3/4" | 1-1/8" | 1/2" | 2-1/2" | Southeast Tool | SECR750RH-12 |
| 1" | 1-1/8" | 1/4" | 2-1/2" | Southeast Tool | SECR1000RH-12 |
LH Carving Rougher Bits
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 1/2" | 1-1/8" | 1/4" | 2-1/2" | Southeast Tool | SECR500LH |
| 5/8" | 1-1/8" | 1/4" | 2-1/2" | Southeast Tool | SECR625LH |
| 5/8" | 1-1/8" | 11mm | 2-1/2" | Southeast Tool | SECR625LH-11 |
| 3/4" | 1-1/8" | 1/4" | 2-1/2" | Southeast Tool | SECR750LH |
| 3/4" | 1-1/8" | 11mm | 2-1/2" | Southeast Tool | SECR750LH-11 |
| 3/4" | 1-1/8" | 1/2" | 2-1/2" | Southeast Tool | SECR750LH-12 |
-
Add to Cart The item has been addedSoutheast Tool

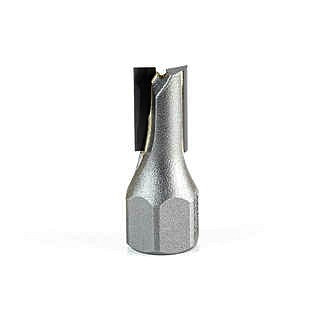

Screw-On Mortise Cutter, 1/4-28 Thread, 31/64 Dia, 9/16 Cut Length, Southeast Tool SEH13484Screw-On, Mortise Router Bits - 1/4in. x 28 Thread), Carbide Tipped - Southeast Tool SEH13484; 31/64…
MSRP: $67.96$58.88 -
Add to Cart The item has been addedSoutheast Tool
Screw-On Mortise Cutter, 1/4-28 Thread, 15/32 Dia, 9/16 Cut Length, Southeast Tool SEH13469Screw-On, Mortise Router Bits - 1/4in. x 28 Thread), Carbide Tipped - Southeast Tool SEH13469; 15/32…
MSRP: $67.96$58.88 -
Add to Cart The item has been addedSoutheast Tool
Screw-On Mortise Cutter, 1/4-28 Thread, 3/8+.030 Dia, 9/16 Cut Length, Southeast Tool SEH13406Screw-On, Mortise Router Bits - 1/4in. x 28 Thread), Carbide Tipped - Southeast Tool SEH13406; 3/8+.…
MSRP: $58.62$50.79 -
Add to Cart The item has been addedSoutheast Tool
Screw-On Mortise Cutter, 1/4-28 Thread, 3/8 Dia, 9/16 Cut Length, Southeast Tool SEH13375Screw-On, Mortise Router Bits - 1/4in. x 28 Thread), Carbide Tipped - Southeast Tool SEH13375; 3/8 D…
MSRP: $67.96$58.88 -
Add to Cart The item has been addedSoutheast Tool
Screw-On Mortise Cutter, 1/4-28 Thread, 5/16+.015 Dia, 9/16 Cut Length, Southeast Tool SEH13327Screw-On, Mortise Router Bits - 1/4in. x 28 Thread), Carbide Tipped - Southeast Tool SEH13327; 5/16+…
MSRP: $67.96$58.88 -
Add to Cart The item has been addedSoutheast Tool
Screw-On Mortise Cutter, 1/4-28 Thread, 9/32 Dia, 9/16 Cut Length, Southeast Tool SEH13281Screw-On, Mortise Router Bits - 1/4in. x 28 Thread), Carbide Tipped - Southeast Tool SEH13281; 9/32 …
MSRP: $67.96$58.88 -
Add to Cart The item has been addedSoutheast Tool
Screw-On Mortise Cutter, 1/4-28 Thread, 1/4+.015 Dia, 9/16 Cut Length, Southeast Tool SEH13265Screw-On, Mortise Router Bits - 1/4in. x 28 Thread), Carbide Tipped - Southeast Tool SEH13265; 1/4+.…
MSRP: $67.96$58.88 -
Add to Cart The item has been addedSoutheast Tool
Screw-On Mortise Cutter, 1/4-28 Thread, 1/4 Dia, 9/16 Cut Length, Southeast Tool SEH13250Screw-On, Mortise Router Bits - 1/4in. x 28 Thread), Carbide Tipped - Southeast Tool SEH13250; 1/4 D…
MSRP: $67.96$58.88 -
Add to Cart The item has been addedSoutheast Tool
Screw-On Mortise Cutter, 1/4-28 Thread, 1/4-.015 Dia, 9/16 Cut Length, Southeast Tool SEH13234Screw-On, Mortise Router Bits - 1/4in. x 28 Thread), Carbide Tipped - Southeast Tool SEH13234; 1/4-.…
MSRP: $67.96$58.88 -
Add to Cart The item has been addedSoutheast Tool
Screw-On Mortise Cutter, 1/4-28 Thread, 3/16+.015 Dia, 9/16 Cut Length, Southeast Tool SEH13202Screw-On, Mortise Router Bits - 1/4in. x 28 Thread), Carbide Tipped - Southeast Tool SEH13202; 3/16+…
MSRP: $67.96$58.88 -
Add to Cart The item has been addedSoutheast Tool
Screw-On Mortise Cutter, 1/4-28 Thread, 9/64 Dia, 9/16 Cut Length, Southeast Tool SEH13140Screw-On, Mortise Router Bits - 1/4in. x 28 Thread), Carbide Tipped - Southeast Tool SEH13140; 9/64i…
MSRP: $58.62$50.79 -
Add to Cart The item has been addedSoutheast Tool
Screw-On Mortise Cutter, 1/4-28 Thread, 1/8 Dia, 9/16 Cut Length, Southeast Tool SEH13125Screw-On, Mortise Router Bits - 1/4in. x 28 Thread), Carbide Tipped - Southeast Tool SEH13125; 1/8 D…
MSRP: $67.96$58.88
