2 Flute Compression Router Bits
These two flute CNC compression spiral router bits are designed for cutting 2 sided laminates, melamine and other sheet goods. The opposite shear design pulls both the top and bottom surfaces toward the middle of the sheet providing clean edges on both sides. Available in both right and left rotation as well as shallow upcut for mortise cuts or thinner material.
2 Flute Up/Down (2+2 Compression) Spirals
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 6mm | 25mm | 6mm | 64mm | Vortex | 3108 |
| 1/4" | 7/8" | 1/4" | 2-1/2" | Vortex | 3110 |
| 1/4" | 1" | 1/4" | 2-1/2" | Whiteside | UD2102 |
| 8mm | 28mm | 8mm | 64mm | Vortex | 3122 |
| 10mm | 35mm | 10mm | 76mm | Vortex | 3145 |
| 12mm | 35mm | 12mm | 88mm | Vortex | 3155 |
| 3/8" | 1-1/8" | 3/8" | 3" | Vortex | 3130 |
| 3/8" | 1-1/4" | 3/8" | 3" | Whiteside | UD4122 |
| 1/2" | 1" | 1/2" | 3" | Vortex | 3135 |
| 1/2" | 1" | 1/2" | 3-1/2" | Southeast Tool | SUD553A |
| 1/2" | 1-1/8" | 1/2" | 3" | Southeast Tool | SUD554 |
| 1/2" | 1-1/4" | 1/2" | 3" | Southeast Tool | SUD555 |
| 1/2" | 1-1/4" | 1/2" | 3" | Whiteside | UD5122 |
| 1/2" | 1-3/8" | 1/2" | 3-1/2" | Southeast Tool | SUD560 |
| 1/2" | 1-3/8" | 1/2" | 3-1/2" | Vortex | 3152 |
| 1/2" | 1-1/2" | 1/2" | 3-1/2" | Whiteside | UD5152 |
| 1/2" | 1-5/8" | 1/2" | 3-1/2" | Southeast Tool | SUD565 |
| 1/2" | 1-5/8" | 1/2" | 3-1/2" | Whiteside | UD5162 |
| 1/2" | 1-5/8" | 1/2" | 3-1/2" | Whiteside | UD5162M |
| 1/2" | 1-5/8" | 1/2" | 4" | Southeast Tool | SUD570 |
| 1/2" | 1-3/4" | 1/2" | 3-1/2" | Vortex | 3160 |
| 1/2" | 1-3/4" | 1/2" | 4" | Southeast Tool | SUD571 |
| 1/2" | 2" | 1/2" | 4" | Southeast Tool | SUD573 |
| 1/2" | 2" | 1/2" | 4" | Vortex | 3162 |
| 1/2" | 2" | 1/2" | 4" | Whiteside | UD5202 |
| 5/8" | 1-1/2" | 5/8" | 4" | Southeast Tool | SUD575 |
| 5/8" | 1-1/2" | 5/8" | 4" | Whiteside | UD6152 |
| 5/8" | 2" | 5/8" | 4" | Vortex | 3170 |
| 5/8" | 2" | 5/8" | 4" | Southeast Tool | SUD580 |
| 3/4" | 1-1/2" | 3/4" | 4" | Southeast Tool | SUD585 |
| 3/4" | 1-5/8" | 3/4" | 4" | Vortex | 3179 |
| 3/4" | 2" | 3/4" | 4" | Vortex | 3180 |
| 3/4" | 2" | 3/4" | 4" | Southeast Tool | SUD590 |
| 3/4" | 2" | 3/4" | 5" | Whiteside | UD7202 |
| 3/4" | 2-1/2" | 3/4" | 5" | Vortex | 3183 |
| 3/4" | 2-1/2" | 3/4" | 4" | Southeast Tool | SUD592 |
| 3/4" | 3" | 3/4" | 6" | Southeast Tool | SUD594 |
High Performance/Long Wear 2 Flute Compression Spirals
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 3/8" | 7/8" | 3/8" | 3" | Vortex | 3184XP |
| 3/8" | 7/8" | 3/8" | 3" | Vortex | 3185XP |
| 3/8" | 1-1/8" | 3/8" | 3" | Vortex | 3130XP |
| 3/8" | 1-1/4" | 3/8" | 3" | Southeast Tool | SMDUD550 |
| 3/8" | 1-1/4" | 3/8" | 3" | Whiteside | HC4122 |
| 1/2" | 1" | 1/2" | 3" | Vortex | 3135XP |
| 1/2" | 1" | 1/2" | 3" | Vortex | 3187XP |
| 1/2" | 1" | 1/2" | 3" | Vortex | 3189XP |
| 1/2" | 1-1/8" | 1/2" | 3" | Southeast Tool | SMDUD554 |
| 1/2" | 1-1/4" | 1/2" | 3" | Southeast Tool | SMDUD555 |
| 1/2" | 1-1/4" | 1/2" | 3" | Whiteside | HC5122 |
| 1/2" | 1.3" | 1/2" | 3-1/2" | Vortex | 3150XP |
| 1/2" | 1.3" | 1/2" | 3-1/2" | Vortex | 3152XP |
| 1/2" | 1-3/8" | 1/2" | 3-1/2" | Southeast Tool | SMDUD560 |
| 1/2" | 1-5/8" | 1/2" | 3-1/2" | Southeast Tool | SMDUD565 |
| 1/2" | 1.625" | 1/2" | 3-1/2" | Vortex | 3158XP |
| 1/2" | 1-3/4" | 1/2" | 3-1/2" | Southeast Tool | SMDUD571 |
| 1/2" | 2" | 1/2" | 4" | Southeast Tool | SMDUD573 |
| 3/4" | 1.625" | 3/4" | 4" | Vortex | 3179XP |
| 3/4" | 2" | 3/4" | 4" | Vortex | 3180XP |
Left Hand 2 Flute Compression Spirals
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 1/4" | 5/8" | 1/4" | 2-1/2" | Vortex | 3115L |
| 1/4" | 7/8" | 1/4" | 2-1/2" | Vortex | 3110L |
| 1/4" | 1" | 1/4" | 2-1/2" | Southeast Tool | SLUD648 |
| 3/8" | 1-1/8" | 3/8" | 3" | Vortex | 3130L |
| 3/8" | 1-1/4" | 3/8" | 3" | Southeast Tool | SLUD650 |
| 1/2" | 1" | 1/2" | 3" | Vortex | 3135L |
| 1/2" | 1-1/4" | 1/2" | 3" | Southeast Tool | SLUD655 |
| 1/2" | 1-3/8" | 1/2" | 3-1/2" | Vortex | 3152L |
| 1/2" | 1-5/8" | 1/2" | 3-1/2" | Southeast Tool | SLUD665 |
| 1/2" | 1-3/4" | 1/2" | 3-1/2" | Vortex | 3160L |
| 1/2" | 2" | 1/2" | 4" | Southeast Tool | SLUD673 |
| 1/2" | 2" | 1/2" | 4" | Vortex | 3162L |
| 5/8" | 1-1/2" | 5/8" | 4" | Southeast Tool | SLUD675 |
| 5/8" | 2" | 5/8" | 4" | Southeast Tool | SLUD680 |
| 5/8" | 2" | 5/8" | 4" | Vortex | 3170L |
| 3/4" | 1-1/2" | 3/4" | 4" | Southeast Tool | SLUD685 |
| 3/4" | 2" | 3/4" | 4" | Southeast Tool | SLUD690 |
| 3/4" | 2" | 3/4" | 4" | Vortex | 3180L |
| 3/4" | 2-1/2" | 3/4" | 5" | Vortex | 3183L |
| 3/4" | 2-1/2" | 3/4" | 5" | Southeast Tool | SLUD696 |
Left Hand High Performance 2 Flute Compression Spirals
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 3/8" | 7/8" | 3/8" | 3" | Vortex | 3185LXP |
| 3/8" | 1-1/8" | 3/8" | 3" | Vortex | 3130LXP |
| 1/2" | 1.625" | 1/2" | 3-1/2" | Vortex | 3130LXP |
-
Vortex
2 Flute Xtreme Perf Compression Bit, 3/4 Dia, 2" Cut Length, 3/4 Shank, Vortex 3180XPCutting Edge Diameter 3/4", Cutting Edge Length 2", Shank Diameter 3/4", Overall Length 4"Thes…
MSRP: $499.44$457.82 -
Vortex
2 Flute Xtreme Perf Compression Bit, 1/2 Dia, 1.3" Cut Length, 1/2 Shank, Vortex 3152XPCutting Edge Diameter 1/2", Cutting Edge Length 1-3/8", Shank Diameter 1/2", Overall Length 3-1/2.Th…
MSRP: $176.50$161.80 -
Vortex
2 Flute Xtreme Perf Compression Bit, 1/2 Dia, 1" Cut Length, 1/2 Shank, Vortex 3189XPCutting Edge Diameter 1/2", Cutting Edge Length 1", Shank Diameter 1/2", Overall Length 3" Includes …
MSRP: $171.48$157.18 -
Vortex
2 Flute Xtreme Perf Compression Bit, 1/2 Dia, 1" Cut Length, 1/2 Shank, Vortex 3187XPCutting Edge Diameter 1/2", Cutting Edge Length 1", Shank Diameter 1/2", Overall Length 3" Includes …
MSRP: $171.48$157.18 -
Vortex
2 Flute Xtreme Perf Compression Bit, 1/2 Dia, 1" Cut Length, 1/2 Shank, Vortex 3135XPCutting Edge Diameter 1/2", Cutting Edge Length 1", Shank Diameter 1/2", Overall Length 3"These high…
MSRP: $171.48$157.18 -
Vortex
2 Flute Xtreme Perf Compression Bit, 3/8 Dia, 7/8 Cut Length, 3/8 Shank, Vortex 3185XPCutting Edge Diameter 3/8", Cutting Edge Length 7/8", Shank Diameter 3/8", Overall Length 3" Include…
MSRP: $141.06$129.30 -
Vortex
2 Flute Xtreme Perf Compression Bit, 3/8 Dia, 7/8 Cut Length, 3/8 Shank, Vortex 3184XPCutting Edge Diameter 3/8", Cutting Edge Length 7/8", Shank Diameter 3/8", Overall Length 3" Include…
MSRP: $141.06$129.30 -
Vortex
2 Flute Xtreme Perf Compression Bit, 3/8 Dia, 1-1/8 Cut Length, 3/8 Shank, Vortex 3130XPCutting Edge Diameter 3/8", Cutting Edge Length 1-1/8", Shank Diameter 3/8", Overall Length 3"These …
MSRP: $141.06$129.30 -
Southeast Tool
2 Flute Compression Bit, 3/4 Dia, 2-1/2 Cut Length, 3/4 Shank, Southeast Tool SUD592Compression (Up-Down) Spiral Router Bits - Right-Hand Rotation, Solid Carbide - Southeast Tool…
MSRP: $341.29$280.17 -
Southeast Tool
2 Flute Compression Bit, 1/2 Dia, 1-3/4 Cut Length, 1/2 Shank, Southeast Tool SUD571Compression (Up-Down) Spiral Router Bits - Right-Hand Rotation, Solid Carbide - Southeast Tool SUD57…
MSRP: $128.42$105.73 -
Southeast Tool
2 Flute Compression Bit, 1/2 Dia, 1-1/8 Cut Length, 1/2 Shank, Southeast Tool SUD554Compression (Up-Down) Spiral Router Bits - Right-Hand Rotation, Solid Carbide - Southeast Tool SUD55…
MSRP: $89.08$76.65 -
Southeast Tool
2 Flute Compression Bit, 1/2 Dia, 1 Cut Length, 1/2 Shank, Southeast Tool SUD553ACompression (Up-Down) Spiral Router Bits - Right-Hand Rotation, Solid Carbide - Southeast Tool SUD55…
MSRP: $98.33$84.58 -
Southeast Tool

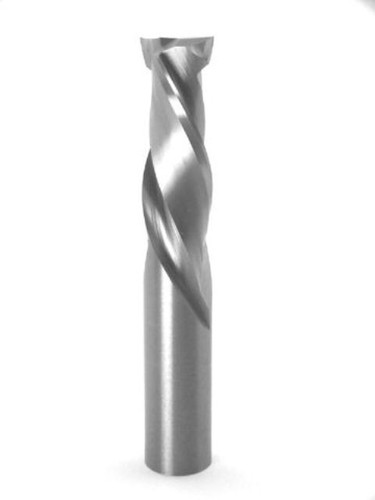

2 Flute Mortise Compression Bit, 3/8 Dia, 1-1/2 Cut Length, 3/8 Shank, Southeast Tool SUD551ACompression (Up-Down) Spiral Router Bits - Right-Hand Rotation, Solid Carbide - Southeast Tool SUD55…
MSRP: $92.55$77.63 -
Southeast Tool
2 Flute Mortise Compression Bit, 5/16 Dia, 1" Cut Length, 5/16 Shank, Southeast Tool SUD462Compression (Up-Down) Spiral Router Bits - Right-Hand Rotation, Solid Carbide - Southeast Tool SUD46…
MSRP: $67.10$60.53 -
Southeast Tool
2 Flute Mortise Compression Bit, 5/16 Dia, 1-1/4 Cut Length, 5/16 Shank, Southeast Tool SUD460Compression (Up-Down) Spiral Router Bits - Right-Hand Rotation, Solid Carbide - Southeast Tool SUD46…
MSRP: $67.10$58.77 -
Southeast Tool
2 Flute Compression Bit, MD for Long Wear, 1/2 Dia, 1-3/4 Cut Length, 1/2 Shank, Southeast Tool SMDUD571Compression, Spiral Router Bits - MD for Long Wear, Solid Carbide - Southeast Tool SMDUD571; 1/2 Cut…
MSRP: $123.79$107.23 -
Southeast Tool
2 Flute Compression Mortise Bit, MD for Long Wear, 1/2 Dia, 1-1/8 Cut Length, 1/2 Shank, Southeast Tool SMDUD554ACompression, Mortise Router Bits - MD for Long Wear, 3/16 Upcut, Solid Carbide - Southeast Tool SMDU…
MSRP: $106.43$92.20 -
Southeast Tool
2 Flute LH Compression Bit, 3/4 Dia, 2-1/2" Cut Length, 3/4 Shank, Southeast Tool SLUD696Compression (Up-Down) Spiral Router Bits - Left-Hand Rotation, Solid Carbide - Southeast Tool …
MSRP: $366.74$285.46 -
Southeast Tool
2 Flute LH Compression Bit, 1/4 Dia, 1" Cut Length, 1/4 Shank, Southeast Tool SLUD648Compression (Up-Down) Spiral Router Bits - Left-Hand Rotation, Solid Carbide - Southeast Tool SLUD64…
MSRP: $52.10$40.51 -
Vortex
LH 2 Flute Mortise Compression Bit, 3/8 Dia, 7/8 Cut Length, 3/8 Shank, Vortex 3185LMortise Compression (Left Hand), Spiral Router Bits - (2 Flute) Solid Carbide - Vortex 3185. Cutting…
MSRP: $141.74$129.93
