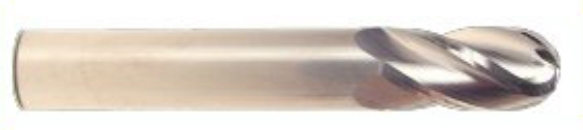

Standard End Mill- Ball End

HTC Tool manufactures high end, quality end mills for many applications.  Choose from 2 flute or 4 flute standard length ball end mills below in either uncoated, TiN Coated, HTC hard coat or progressive coat.  See coating chart to select the right coating for your application.



 Solid Ball End Mills, Standard Length




Cutting DiameterFlute LengthOverall Length2 Flute Part#4 Flute Part#
1/8" Shank
1/64" 1/16" 1-1/2" 873-135-2015 873-135-4015
1/32" 3/32" 1-1/2" 873-135-2031 873-135-4031
3/64" 1/8" 1-1/2" 873-135-2046 873-135-4046
1/16" 3/16" 1-1/2" 873-135-2062 873-135-4062
5/64" 1/4" 1-1/2" 873-135-2078 873-135-4078
3/32" 3/8" 1-1/2" 873-135-2093 873-135-4093
7/64" 3/8" 1-1/2" 873-135-2109 873-135-4109
1/8" 1/2" 1-1/2" 873-135-2125 873-135-4125
3/16" Shank
9/64" 9/16" 2" 873-135-2140 873-135-4140
5/32" 9/16" 2" 873-135-2156 873-135-4156
11/64" 9/16" 2" 873-135-2171 873-135-4171
3/16" 5/8" 2" 873-135-2187 873-135-4187
1/4" Shank
13/64" 5/8" 2-1/2" 873-135-2203 873-135-4203
7/32" 5/8" 2-1/2" 873-135-2218 873-135-4218
15/64" 3/4" 2-1/2" 873-135-2234 873-135-4234
1/4" 3/4" 2-1/2" 873-135-2250 873-135-4250
5/16" Shank
17/64" 7/8" 2-1/2" 873-135-2265 873-135-4265
9/32" 7/8" 2-1/2" 873-135-2281 873-135-4281
19/64" 7/8" 2-1/2" 873-135-2296 873-135-4296
5/16" 7/8" 2-1/2" 873-135-2312 873-135-4312
3/8" Shank
21/64" 7/8" 2-1/2" 873-135-2328 873-135-4328
11/32" 7/8" 2-1/2" 873-135-2343 873-135-4343
23/64" 7/8" 2-1/2" 873-135-2359 873-135-4359
3/8" 7/8" 2-1/2" 873-135-2375 873-135-4375
7/16" Shank
25/64" 7/8" 2-1/2" 873-135-2390 873-135-4390
13/32" 7/8" 2-1/2" 873-135-2406 873-135-4406
27/64" 7/8" 2-1/2" 873-135-2421 873-135-4421
7/16" 1" 2-1/2" 873-135-2437 873-135-4437
1/2" Shank
29/64" 1" 3" 873-135-2453 873-135-4453
15/32" 1" 3" 873-135-2468 873-135-4468
31/64" 1" 3" 873-135-2484 873-135-4484
1/2" 1" 3" 873-135-2500 873-135-4500
9/16" Shank
33/64" 1-1/4" 3-1/2" 873-135-2515 873-135-4515
17/32" 1-1/4" 3-1/2" 873-135-2531 873-135-4531
35/64" 1-1/4" 3-1/2" 873-135-2546 873-135-4546
9/16" 1-1/4" 3-1/2" 873-135-2562 873-135-4562
5/8" Shank
37/64" 1-1/4" 3-1/2" 873-135-2578 873-135-4578
19/32" 1-1/4" 3-1/2" 873-135-2593 873-135-4593
39/64" 1-1/4" 3-1/2" 873-135-2609 873-135-4609
5/8" 1-1/4" 3-1/2" 873-135-2625 873-135-4625
3/4" Shank
41/64" 1-1/2" 4" 873-135-2640 873-135-4640
21/32" 1-1/2" 4" 873-135-2656 873-135-4656
43/64" 1-1/2" 4" 873-135-2671 873-135-4671
11/16" 1-1/2" 4" 873-135-2687 873-135-4687
45/64" 1-1/2" 4" 873-135-2703 873-135-4703
23/32" 1-1/2" 4" 873-135-2718 873-135-4718
47/64" 1-1/2" 4" 873-135-2734 873-135-4734
3/4" 1-1/2" 4" 873-135-2750 873-135-4750
7/8" Shank
49/64" 1-1/2" 4" 873-135-2765 873-135-4765
25/32" 1-1/2" 4" 873-135-2781 873-135-4781
51/64" 1-1/2" 4" 873-135-2796 873-135-4796
13/16" 1-1/2" 4" 873-135-2812 873-135-4812
53/64" 1-1/2" 4" 873-135-2828 873-135-4828
27/32" 1-1/2" 4" 873-135-2843 873-135-4843
55/64" 1-1/2" 4" 873-135-2859 873-135-4859
7/8" 1-1/2" 4" 873-135-2875 873-135-4875
1" Shank
57/64" 1-1/2" 4" 873-135-2890 873-135-4890
29/32" 1-1/2" 4" 873-135-2906 873-135-4906
59/64" 1-1/2" 4" 873-135-2921 873-135-4921
15/16" 1-1/2" 4" 873-135-2937 873-135-4937
61/64" 1-1/2" 4" 873-135-2953 873-135-4953
31/32" 1-1/2" 4" 873-135-2968 873-135-4968
63/64" 1-1/2" 4" 873-135-2984 873-135-4984
1" 1-1/2" 4" 873-135-2100 873-135-4100
