Kant-Twist Clamps
KANT-TWIST clamp floating jaws stay flat on the part surfaces even if they are not parallel. The cantelever design eliminates the twisting of standard C-clamps and the built-in V-block holds round stock securely. Get the best features of both ordinary C-clamps and parallel clamps in one metalworking clamp.
Light weight steel construction with copper plated jaws and screws make KANT-TWIST clamps ideal for welding and fabrication. Metal working clamps made in the USA.

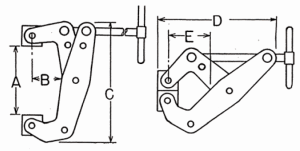

| Size | Description | A | B | C | D | E | Load | Part # |
|---|---|---|---|---|---|---|---|---|
| 3/4" | Round Handle | 3/4" | 3/8" | 1 3/8" | 1 1/2" | 3/8" | 200 | 396 |
| 1" | Round Handle | 1" | 1/2" | 1 3/4" | 2 1/S" | 1/2" | 350 | 401-1 |
| 1 1/2" | Round Handle | 1 1/2" | 1 1/S" | 3" | 3 1/16" | 1" | 600 | 403-1 |
| 2" | Round Handle | 2" | 1 1/S" | 3 1/4" | 3 1/2" | 1 1/4" | 800 | 405-1 |
| 1" | ''T'' Handle | 1" | 1/2" | 1 3/4" | 2 1/S" | 1/2" | 350 | 401 |
| 2" | 'T' Handle | 2" | 1 1/S" | 3 1/4" | 3 1/2" | 1 1/4" | 800 | 405 |
| 2 1/2" | Deep Throat | 2 7/16" | 2" | 4 1/16" | 4 1/S" | 1 13/16" | 700 | 407 |
| 3" | "T" Handle | 3" | 1 1/4" | 5" | 5 1/4" | 1 3/4" | 1500 | 410 |
| 3" | "T" Handle - Urethane Jaws | 3" | 1 1/4" | 5" | 5 1/4" | 1 3/4" | 1500 | 410-8 |
| 4 1/2" | Deep Throat | 4 1/2" | 2 1/4" | 6 3/4" | 7" | 3 13/16" | 1700 | 415 |
| 4 1/2" | Deep Throat - Urethane Jaws | 4 1/2" | 2 1/4" | 6 3/4" | 7" | 3 13/16" | 1700 | 415-8 |
| 6" | "T" Handle | 6" | 2 1/S" | S 1/4" | S 1/4" | 3 3/S" | 2000 | 420 |
| 6" | "T" Handle - Urethane Jaws | 6" | 2 1/S" | S 1/4" | S 1/4" | 3 3/S" | 2000 | 420-8 |
| 6" | Deep Throat | 6" | 4 1/2" | 10" | 11" | 5 1/2" | 2000 | 421 |
| 6" | Deep Throat - Urethane Jaws | 6" | 4 1/2" | 10" | 11" | 5 1/2" | 2000 | 421-8 |
| 9" | "T" Handle | 9" | 3 3/S" | 13" | 12" | 5 1/4" | 2500 | 430 |
| 10" | Deep Throat | 10" | 6" | 15" | 16" | 7" | 3500 | 435 |
| 12" | "T" Handle | 12" | 5" | 16 1/2" | 16 1/2" | 7" | 6000 | 440 |
| 6" | 3-Jaw | 6" | 2 1/S" | S 1/4" | S 1/4" | 3 5/S" | 2000 | 421-1 |
| 4 1/2" | 400A Terminal Lug Ground | 4 1/2" | 2 1/S" | 6 3/4" | 7" | 2 1/2" | 1700 | 415-2 |
| 1" | Round Jaw Pad "No-Mar" | 7/8" | 1/2" | 1 3/4" | 2 1/S" | 1/2" | 350 | 401-4 |
| 2" | Round Jaw Pad "No-Mar" | 1 3/4" | 1 1/S" | 3 1/4" | 3 1/2" | 1 1/4" | 800 | 405-4 |
| 3" | Round Jaw Pad "No-Mar" | 2 3/4" | 1 1/4" | 5" | 5 1/4" | 1 3/4" | 1500 | 410-4 |
| 4 1/2" | Round Jaw Pad "No-Mar" | 4 1/4" | 2 1/4" | 6 3/4" | 7" | 2 1/2" | 1700 | 415-4 |
| 2" | Stainless - 303 | 2" | 1 1/S" | 3 1/4" | 3 1/2" | 1 1/4" | 700 | 505 |
| 3" | Stainless - 303 | 3" | 1 1/4" | 5" | 5 1/4" | 1 3/4" | 1200 | 510 |
| 4 1/2" | Stainless - 303 Deep Throat | 4 1/2" | 2 1/4" | 6 3/4" | 7" | 2 1/2" | 1500 | 515 |
| 3" | No Base Plate | 1 9/10" | 1 1/2" | 2 11/16" | 2 1/4" | 4" | 1500 | 411 |
| 3" | With 'T' Slot Base & Bolt | "T" Slot | - | 2 11/16" | 2 1/4" | 4 1/S" | 1500 | 411-2 |
| 6" | No Base Plate | 2 9/10" | 2 5/S" | 3 3/4" | 3 3/4" | 6 7/S" | 3200 | 423 |
| 6" | With "T" Slot Base & Bolt | "T" Slot | - | 3 3/4" | 4" | 7 1/4" | 3200 | 423-1 |
