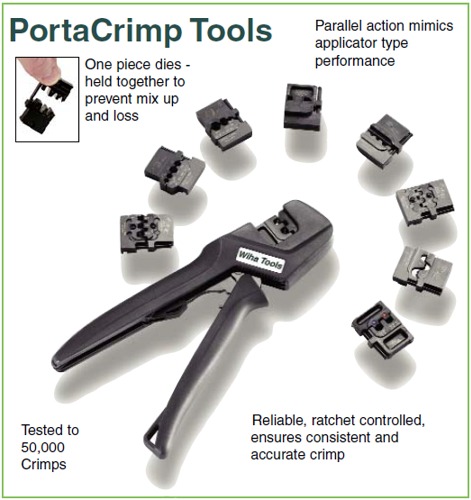

PortaCrimp Tools

Top Quality: 40,000 cycle tested frame for longest life & consistent performance
Reliable: Parallel, full cycle, ratchet controlled action ensures consistent accurate crimps
Easy To Use: Designed to give user full visibility of the crimping process
Versatile: Quickly and easily inter-change crimp dies on the job
No More Lost Die Parts! Practical design uses guide pin to keeps die components together
Practical: Pocket size dies are compact & easy to carry
Ergonomic: Reduced effort ratchet assisted crimping use one hand or two with extended grip
Economical: One tool frame to do the job of many, select only the dies you need

PortaCrimp Tool Frame

	Length (mm)	Part #
	234	43149

PortaCrimp Dies

Use	Crimp Range	AWG	Part #
Non-Insulated Terminals, Lugs & Splices	10/6/4mm	8/10/12	43139
Non-Insulated Terminals, Lugs & Splices	2.5/1.5/0.75mm	14/16/20	43137
Green & Yellow Insulated Terminals & Splices	4-6 & 0.1-0.4mm	26-22 12-10	43128
Red & Blue Insulated Terminals & Splices	1.5-2.5 & 0.5-1.5mm	22-14	43129
Non-Insulated Terminals, Lugs & Splices	4-6 & 0.5-2.5mm	12-10 22-14	43142
Wire Ferrules - Insulated & Non-Insulated	10/6/4/2.5/1-1.5/.25-.75mm	8-24	43127
Wire Ferrules - Insulated & Non-Insulated	25 & 16mm	6 & 4	43153
Wire Ferrules - Insulated & Non-Insulated	50 & 35mm	1/0 & 2	43154
PortaCrimp Open Barrel, Non-Insulated Standard Commercial Terminals & Lugs - .250"(6.3mm) Push On Terminals	4-6/1.5-2.5/0.5-1.0mm	22-10	43146
Open Barrel Non-Insulated Push On Terminals DIN 46247-1 .110" (2.8mm) tab	0.5-1.0/0.25-0.5/0.1-0.25mm	26-18	43150
Open Barrel Non-Insulated Push On Terminals DIN 46247-2 .187” (4.8mm) tab	1.5-2.5 & 0.5-1.5mm	22-14	43151
Weather Pack Open Barrel Terminals	4.0-1.0mm	12-20	43143
Fiber Optic SMA, SMB, SFR, ST, SC	4.52/5.41/3.84/3.25mm (.178/.213/.151/.128")	N/A	43141
Coaxial Network & Communications RG58, RG59, RG62AU BNC/TNC	1.69/5.41/6.48mm (.213/.255/.068"hex)	N/A	43136
Coaxial Network & Communications CATV, HDTV, Video Die set for RG6, Belden 1694A, Twinax BNC, CATV F	9.14 & 8.23mm (.360/.324")	N/A	43138
Coaxial Network & Communications RG174, RG179 BNC/TNC	4.52/3.25/1.69mm hex 0.7mm sq. (.178"/.128"/.068" hex, .028" sq.)	N/A	43140
Datacom/Telecom Modular Plug	RJ45	N/A	43144
Datacom/Telecom Modular Plug	RJ11	N/A	43132
Power Contacts	4 / .14-1 / 2.5 / 1.5mm	26-12	43147
Power Contacts	6 & 10mm	10-8	43148
Heat Shrink Connectors	0.5-1.5mm red 1.5-25mm blue	22-16 red 16-14 blue	43158
Heat Shrink Connectors	4-6mm yellow 0.32-0.75mm green	12-10 yellow 22-18 green	43162
Multi-Contact	MC3	10	43164
Multi-Contact	MC4	14-10	43165
Tyco	SOLARLOK	14-10	43166

PortaCrimp Sets

	Description	Part #
	Electrical Set Includes 43129, 43128, 43142	43190
	Industrial Set Includes 43129, 43127, 43147	43191
	Data Com Set Includes 43144, 43136, 43132	43192

Wiha
PortaCrimp Die Set for Tyco Electronics, Wiha 43166
>Wiha 43166 - PortaCrimp Die Crimps Tyco Electronics SOLARLOK 14-10AWG (2.5-6.0mm2). One piece die, …

MSRP:

Was:

Now: (Inc. Tax)

MSRP:

Was:

Now: $125.61
Wiha
PortaCrimp Die Set for Multi-Contact MC4, Wiha 43165
>Wiha 43165 - PortaCrimp Die Crimps MC5 Solar Connectors 10-14AWG (2.5-6.0mm2). One piece die, held …

MSRP:

Was:

Now: (Inc. Tax)

MSRP:

Was:

Now: $155.77
Wiha
PortaCrimp Die Set for Multi-Contact MC3, Wiha 43164
Wiha 43164 - PortaCrimp Die Crimps MC3 Solar Connectors 10AWG (2.5-6.0mm2). One piece die, hel…

MSRP:

Was:

Now: (Inc. Tax)

MSRP:

Was:

Now: $241.05
Wiha
4pc PortaCrimp Die Set for Data Com Telco, Wiha 43192
Wiha 43192 - Data Com Telco 4 Piece Die Set. Reliable, ratchet controlled, ensures consistent …

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $333.34

Was:

Now: $291.21
Wiha
4pc PortaCrimp Die Set for Industrial, Wiha 43191
Wiha 43191 - Industrial 4 Piece Die Set. Reliable, ratchet controlled, ensures consistent and …

MSRP:

Was:

Now: (Inc. Tax)

MSRP:

Was:

Now: $363.90
Wiha
4pc PortaCrimp Die Set for Electrical, Wiha 43190
Wiha 43190 - Electrical 4 Piece Die Set. Reliable, ratchet controlled, ensures consistent and …

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $314.34

Was:

Now: $274.61
Wiha
PortaCrimp Die Set for Yellow/Green heat shrink connectors, Wiha 43162
Wiha 43162 - PortaCrimp for heat shrink connectors. Crimps 4-6mm (12-10AWG) yellow, 0.32-0.75mm2 (22…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $112.78

Was:

Now: $98.53
Wiha
PortaCrimp Die Set for Blue/Red heat shrink connectors, Wiha 43158
Wiha 43158 - PortaCrimp for heat shrink connectors. Criimps 0.5-1.5mm (22-16AWG) red, 1.5-25mm2 (16-…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $112.78

Was:

Now: $98.53
Wiha
PortaCrimp Die Set for 2-1/0 AWG Wire Ferrules - Insulated & Non-Insulated, Wiha 43154
Wiha 43154 - PortaCrimp Wire Ferrules - Insulated & Non-Insulated. Crimps 50 & 35mm, 1/0 & 2 AWG One…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $73.74

Was:

Now: $64.42
Wiha
PortaCrimp Die Set for 6-4 AWG Wire Ferrules - Insulated & Non-Insulated, Wiha 43153
Wiha 43153 - PortaCrimp Wire Ferrules - Insulated & Non-Insulated. Crimps 25 & 16mm, 6 & 4 AWG One p…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $67.96

Was:

Now: $59.37
Wiha
PortaCrimp Die Set for 22-14 AWG Open Barrel Non-Insulated Push On Terminals, Wiha 43151
Wiha 43151 - PortaCrimp Open Barrel Non-Insulated Push On Terminals DIN 46247-2 .187in. (4.8mm) tab.…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $122.78

Was:

Now: $107.27
Wiha
PortaCrimp Die Set for 26-18 AWG Open Barrel Non-Insulated Push On Terminals, Wiha 43150
**This item has been discontinued by the manufacturer without replacement** Wiha 43150 - PortaCrimp …

MSRP:

Was:

Now:

MSRP:

Was:

Now:
Wiha
PortaCrimp Tool Frame, Wiha 43149
Wiha 43149 - Tool Frame Only. Parallel action frame gives better performance. Symmetrical pressure w…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $113.42

Was:

Now: $99.08
Wiha
PortaCrimp Die Set for 10-8 AWG Power Contacts, Wiha 43148
Wiha 43148 - PortaCrimp Power Contacts. Crimps 6 & 10mm, 10-8 AWG One piece die, held together to pr…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $112.78

Was:

Now: $98.53
Wiha
PortaCrimp Die Set for 26-12 AWG Power Contacts, Wiha 43147
Wiha 43147 - PortaCrimp Power Contacts. Crimps 4 / .14-1 / 2.5 / 1.5mm, 26-12 AWG One piece die, hel…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $112.78

Was:

Now: $98.53
Wiha
PortaCrimp Die Set for 22-10 AWG Open Barrel, Non-Insulated Standard Commercial Terminals & Lugs, Wiha 43146
Wiha 43146 - PortaCrimp Open Barrel, Non-Insulated Standard Commercial Terminals & Lugs - .250in.(6.…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $112.78

Was:

Now: $98.53
Wiha
PortaCrimp Die Set for RJ45 Datacom/Telecom Modular Plug, Wiha 43144
Wiha 43144 - PortaCrimp Datacom/Telecom Modular Plug. Die set for 8-position 8-contact (RJ45). One p…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $69.02

Was:

Now: $60.30
Wiha
PortaCrimp Die Set for 12-20 AWG Weather Pack Open Barrel Terminals, Wiha 43143
Wiha 43143 - PortaCrimp Weather Pack Open Barrel Terminals. Crimps 4.0-1.0mm, 12-20 AWG One pi…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $225.08

Was:

Now: $196.63
Wiha
PortaCrimp Die Set For 12-10 & 22-14 AWG Non-Insulated Terminals, Lugs & Splices, Wiha 43142
Wiha 43142 - PortaCrimp Die Set For Non-Insulated Terminals, Lugs & Splices. 4-6 & 0.5-2.5mm…

MSRP:

Was:

Now: (Inc. Tax)

MSRP:

Was:

Now: $67.35
Wiha
PortaCrimp Die Set for Fiber Optic, Wiha 43141
Wiha 43141 - PortaCrimp Fiber Optic. Die set for SMA, SMB, SFR, ST, SC fiber optic connectors (.178i…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $75.18

Was:

Now: $65.68
