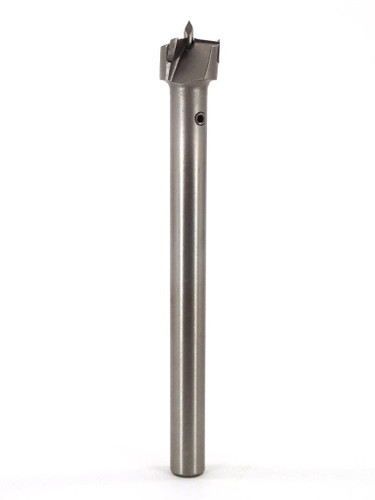

Whiteside's 3 Wing Drills bore clean and accurate holes in wood, plastic, laminates, Formica, and Masonite. These 3 Wing Drills are carbide tipped for long life, even in abrasive materials. Whiteside 3 Wing Drills feature a 1/8" diameter replaceable high speed steel center point that helps start the hole and prevents the drill from walking. The center drill can be replaced with a 1/8" diameter drill bit if needed. The Outside Spurs outline the hole and help prevent any fraying, chipping or blowout. These drills can be resharpened and retipped for even longer tool life.
Cutting Diameter |
Shank Diameter |
Overall Length |
Part # |
---|---|---|---|
11/16" | 1/2" | 6" | 8120687 |
3/4" | 1/2" | 6" | 8120750 |
13/16" | 1/2" | 6" | 8120812 |
7/8" | 1/2" | 6" | 8120875 |
1" | 1/2" | 6" | 8121000 |
1-1/8" | 1/2" | 6" | 8121125 |
1-1/4" | 1/2" | 6" | 8121250 |
1-3/8" | 1/2" | 6" | 8121375 |
1-1/2" | 1/2" | 6" | 8121500 |
1-5/8" | 1/2" | 6" | 8121625 |
1-3/4" | 1/2" | 6" | 8121750 |
1-7/8" | 1/2" | 6" | 8121875 |
2" | 1/2" | 6" | 8122000 |
2-1/8" | 1/2" | 6" | 8122125 |
2-1/4" | 1/2" | 6" | 8122250 |
2-1/2" | 1/2" | 6" | 8122500 |
