Wera stainless steel screwdrivers feature a specially hardened blade with laser etched tips (phillips, pozidriv, slotted) that bite into the fastener and prevent camout. The improved bite results in less downforce required and less fatigue. The Kraftform multi-component non-roll handle of the stainless line comes in ice blue for easy identification with tip style and size markings on the end of the handle. |
Tip Thk mm | Tip Wid mm | Blade Dia mm | Blade Length mm | Handle Length mm | Tip Wid in | Blade Length in | Pkg Qty | Part # |
---|---|---|---|---|---|---|---|---|
0.5 | 3 | 3 | 80 | 81 | 1/8" | 3 1/8" | 10 | 05032001002 |
0.6 | 3.5 | 3.5 | 100 | 81 | 9/64" | 4" | 10 | 05032002002 |
0.8 | 4 | 4 | 100 | 98 | 5/32" | 4" | 10 | 05032003002 |
1 | 5.5 | 5.5 | 125 | 98 | 7/32" | 5" | 10 | 05032004002 |
Tip Thk mm | Tip Wid mm | Blade Dia mm | Blade Length mm | Handle Length mm | Tip Wid in | Blade Length in | Pkg Qty | Part # |
---|---|---|---|---|---|---|---|---|
1.2 | 6.5 | 6 | 150 | 105 | 1/4" | 6" | 10 | 05032005002 |
1.2 | 8 | 7 | 175 | 112 | 5/16" | 7" | 10 | 05032006002 |
1.6 | 10 | 9 | 200 | 112 | 3/8" | 8" | 5 | 05032007002 |
Size | Blade Length mm | Handle Length mm | Blade Dia mm | Blade Length in | Pkg Qty | Part # |
---|---|---|---|---|---|---|
PH 0 | 60 | 81 | 3 | 2 3/8" | 5 | 05032020002 |
PH 1 | 80 | 98 | 4.5 | 3 1/8" | 10 | 05032021002 |
PH 2 | 100 | 105 | 6 | 4" | 10 | 05032022002 |
PH 3 | 150 | 112 | 8 | 6" | 5 | 05032023002 |
Size | Blade Length mm | Handle Length mm | Blade Dia mm | Blade Length in | Pkg Qty | Part # |
---|---|---|---|---|---|---|
PZ 0 | 60 | 81 | 3 | 2 3/8" | 5 | 05032030003 |
PZ 1 | 80 | 98 | 4.5 | 3 1/8" | 10 | 05032031005 |
PZ 2 | 100 | 105 | 6 | 4" | 10 | 05032032005 |
PZ 3 | 150 | 112 | 8 | 6" | 5 | 05032033003 |
Size | Blade Length mm | Handle Length mm | Blade Dia mm | Blade Length in | Pkg Qty | Part # |
---|---|---|---|---|---|---|
TX 8 | 60 | 81 | 3.5 | 2 3/8" | 10 | 05032050002 |
TX 9 | 60 | 81 | 4 | 2 3/8" | 10 | 05032051002 |
TX 10 | 80 | 81 | 4 | 3 1/8" | 10 | 05032052002 |
TX 15 | 80 | 98 | 4 | 3 1/8" | 10 | 05032053002 |
TX 20 | 100 | 98 | 4.5 | 4" | 10 | 05032054002 |
TX 25 | 100 | 105 | 5 | 4" | 10 | 05032055002 |
TX 27 | 115 | 105 | 5.5 | 4 9/16" | 10 | 05032056002 |
TX 30 | 115 | 105 | 6 | 4 9/16" | 10 | 05032057002 |
TX 40 | 130 | 112 | 7 | 5 3/16" | 10 | 05032058002 |
Size | Blade Length mm | Handle Length mm | Blade Dia mm | Blade Length in | Pkg Qty | Part # |
---|---|---|---|---|---|---|
# 1 | 80 | 98 | 4.5 | 3 1/8" | 10 | 05032070002 |
# 2 | 100 | 105 | 6 | 4" | 10 | 05032071002 |

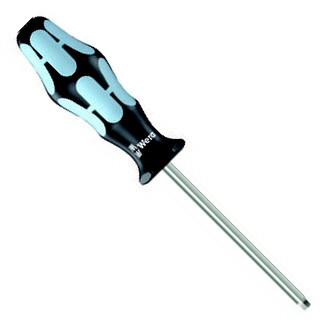

# 3 | 150 | 112 | 8 | 6" | 5 | 05032072002 |
Tip Thk mm | Tip Wid mm | Blade Length mm | Handle Length mm | Tip Wid in | Blade Length in | Pkg Qty | Part # |
---|---|---|---|---|---|---|---|
0.5 | 3 | 80 | 81 | 1/8" | 3 1/8" | 10 | 05022729002 |
0.6 | 3.5 | 100 | 81 | 9/64" | 4" | 10 | 05022730002 |
0.8 | 4 | 100 | 98 | 5/32" | 4" | 10 | 05022731002 |
1 | 5.5 | 125 | 98 | 7/32" | 5" | 10 | 05022732002 |
Size | Blade Length mm | Handle Length mm | Blade Length in | Pkg Qty | Part # |
---|---|---|---|---|---|
PH 1 | 80 | 98 | 3 1/8" | 10 | 05022733002 |
PH 2 | 100 | 105 | 4" | 10 | 05022734002 |
Set | Item | Contents | Pkg Qty | Part # |
---|---|---|---|---|
3334/6 | 3334 | 1 x 1.2x6.5x150 | 1 | 05032060002 |
3335 | 1 x 0.5x3.0x80*; 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 | |||
3350 PH | 1 x PH 1x80; 1 x PH 2x100 |
Set | Item | Contents | Pkg Qty | Part # |
---|---|---|---|---|
3334/3355/6 | 3334 | 1 x 1.2x6.5x150 | 1 | 05032061003 |
3335 | 1 x 0.5x3.0x80*; 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 | |||
3355 PZ | 1 x PZ 1x80; 1 x PZ 2x100 |
Set | Item | Contents | Pkg Qty | Part # |
---|---|---|---|---|
3334/3350/3355/6 | 3334 | 1 x 1.2x6.5x150 | 1 | 05032063005 |
3335 | 1 x 0.5x3.0x80* | |||
3350 PH | 1 x PH 1x80; 1 x PH 2x100 | |||
3355 PZ | 1 x PZ 1x80; 1 x PZ 2x100 |
Set | Item | Contents | Pkg Qty | Part # |
---|---|---|---|---|
3367/3355/6 | 3355 PZ | 1 x PZ 1x80; 1 x PZ 2x100 | 1 | 05032062005 |
3367 TORX | 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100 |
Set | Item | Contents | Pkg Qty | Part # |
---|---|---|---|---|
3334/12 | 3334 | 1 x 1.2x6.5x150; 1 x 1.2x8.0x175 | 1 | 05347903001 |
3335 | 1 x 0.5x3.0x80*; 1 x 0.6x3.5x100; 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 | |||
3350 PH | 1 x PH 0x60*; 1 x PH 1x80; 1 x PH 2x100; 1 x PH 3x150 | |||
3368 | 1 x # 1x80; 1 x # 2x100 |
Set | Item | Contents | Pkg Qty | Part # |
---|---|---|---|---|
3160 i/7 | 3160 i VDE | 1 x 0.5x3.0x80*; 1 x 0.6x3.5x100; 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 | 1 | 05022728002 |
3162 i VDE | 1 x PH 1x80; 1 x PH 2x100 | |||
3247 | 1 x 0.5x3.0x70 |
