L-Keys

Wera Hex-Plus Geometry

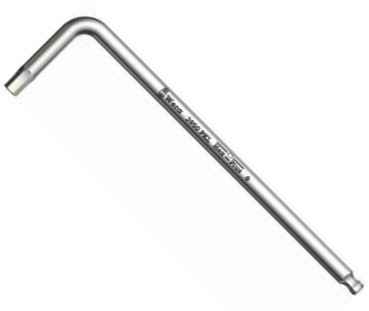

Wera stainless steel hex L-keys feature a ball-end on the long end for screwing at odd angles and Hex-Plus geometry on the short end for greater surface contact with the fastener. The Hex-Plus geometry allows greater torque to be applied without deforming the fastener head.

3950 PKL Hex L-key, metric, stainless steel

Size mm	Length mm	Wid mm	Length in	Wid in	Pkg Qty	Part #
1.5	90	14	3 1/2"	9/16"	10	05022700003
2	101	16	4"	5/8"	10	05022701003
2.5	112	19	4 7/16"	3/4"	10	05022702003
3	123	21	4 7/8"	27/32"	10	05022703003
4	137	24	5 3/8"	1"	10	05022704003
5	154	27	6 1/16"	1 1/16"	10	05022705003
6	172	31	6 3/4"	1 1/4"	10	05022706003
8	195	37	7 11/16"	1 7/16"	10	05022708003
10	224	42	9"	1 11/16"	10	05022709003

3950 PKL Hex L-key, imperial, stainless steel

Size	Length mm	Wid mm	Length in	Wid in	Pkg Qty	Part #
3/32"	112	19	4 7/16"	3/4"	10	05022710002
7/64"	119	20	4 3/4"	25/32"	10	05022711002
1/8"	123	21	4 7/8"	27/32"	10	05022712002
9/64"	130	22	5 3/16"	29/32"	10	05022713002
5/32"	137	24	5 3/8"	1"	10	05022714002
3/16"	154	27	6 1/16"	1 1/16"	10	05022715002
1/4"	185	34	7 1/4"	1 5/16"	10	05022716002
5/16"	195	37	7 11/16"	1 7/16"	10	05022717002
3/8"	224	42	9"	1 11/16"	5	05022718002

Stainless Steel Hex L-Key Sets

Set	Item	Contents	Pkg Qty	Part #
3950 PKL/9 L-key set, metric	3950 PKL	1 x 1.5x90; 1 x 2.0x101; 1 x 2.5x112; 1 x 3.0x123; 1 x 4.0x137; 1 x 5.0x154; 1 x 6.0x172; 1 x 8.0x195; 1 x 10.0x224	1	05022720005
3951 PKL/9 L-key set, imperial	3950 PKL	1 x 3/32"x112; 1 x 7/64"x119; 1 x 1/8"x123; 1 x 9/64"x130; 1 x 5/32"x137; 1 x 3/16"x154; 1 x 1/4"x185; 1 x 5/16"x195; 1 x 3/8"x224	1	05022721002
