Carbon Steel Dies
Carbon steel dies from Triumph Twist Drill are available in two different configurations:
- Standard - Fits in 1" or 1-7/16" hex die stock (depending on size) or can be used with a ratchet or adjustable wrench.
- Rethreading - Outer size matches corresponding nut size so you don't have to switch wrenches when repairing threads.
Carbon Steel Standard Dies
For use in a die stock or with appropriately sized wrench or socket
| Size/ Pitch | Thread Designation | Across Flats | Pkg Qty | Part # |
|---|---|---|---|---|
| 6-32 | NC | 1 | 1 | 083502 |
| 6-32 | NC | 1 | 5 | 083474 |
| 8-32 | NC | 1 | 1 | 083503 |
| 8-32 | NC | 1 | 5 | 083475 |
| 10-24 | NC | 1 | 1 | 083504 |
| 10-24 | NC | 1 | 5 | 083476 |
| 10-32 | NF | 1 | 1 | 083505 |
| 10-32 | NF | 1 | 5 | 083477 |
| 12-24 | NC | 1 | 1 | 083506 |
| 12-24 | NC | 1 | 5 | 083478 |
| 14-20 | NS | 1 | 1 | 083507 |
| 14-20 | NS | 1 | 5 | 083479 |
| 1/4-20 | NC | 1 | 1 | 083508 |
| 1/4-20 | NC | 1 | 5 | 083480 |
| 1/4-28 | NF | 1 | 1 | 083509 |
| 1/4-28 | NF | 1 | 5 | 083481 |
| 5/16-18 | NC | 1 | 1 | 083510 |
| 5/16-18 | NC | 1 | 5 | 083482 |
| 5/16-24 | NF | 1 | 1 | 083511 |
| 5/16-24 | NC | 1 | 5 | 083483 |
| 3/8-16 | NC | 1 | 1 | 083512 |
| 3/8-16 | NC | 1 | 5 | 083484 |
| 3/8-24 | NF | 1 | 1 | 083513 |
| 3/8-24 | NF | 1 | 5 | 083485 |
| 7/16-14 | NC | 1 | 1 | 083514 |
| 7/16-14 | NC | 1 | 5 | 083486 |
| 7/16-20 | NF | 1 | 1 | 083515 |
| 7/16-20 | NF | 1 | 5 | 083487 |
| 1/2-13 | NC | 1 | 1 | 083516 |
| 1/2-13 | NC | 1 | 5 | 083488 |
| 1/2-20 | NF | 1 | 1 | 083518 |
| 1/2-20 | NF | 1 | 5 | 083490 |
| 1/8-27 | NPT | 1 | 1 | 083519 |
| 1/8-27 | NPT | 1 | 5 | 083491 |
| 1/4-18 | NPT | 1 | 1 | 083520 |
| 1/4-18 | NPT | 1 | 5 | 083492 |
| 9/16-18 | NF | 1-7/16 | 1 | 083493 |
| 5/8-11 | NC | 1-7/16 | 1 | 083494 |
| 5/8-18 | NF | 1-7/16 | 1 | 083495 |
| 3/4-10 | NC | 1-7/16 | 1 | 083496 |
| 3/4-16 | NF | 1-7/16 | 1 | 083497 |
| 1/8-27 | NPT | 1-7/16 | 1 | 083498 |
| 1/4-18 | NPT | 1-7/16 | 1 | 083499 |
| 3/8-18 | NPT | 1-7/16 | 1 | 083500 |
| 1/2-14 | NPT | 1-7/16 | 1 | 083501 |

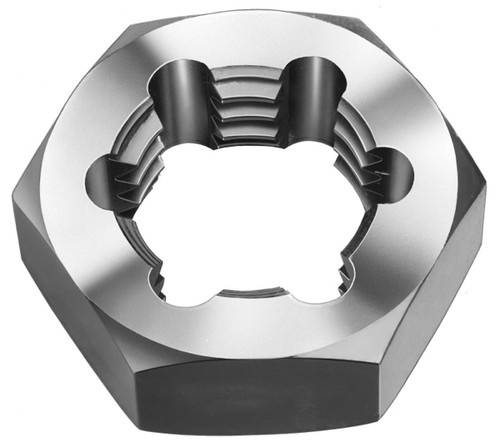

Carbon Steel Rethreading Dies
For use with a wrench or socket size to match the corresponding nut
| Size/ Pitch | Thread Designation | Across Flats | Pkg Qty | Part # |
|---|---|---|---|---|
| 1/4–20 | NC | 19/32 | 5 | 083528 |
| 1/4–28 | NF | 19/32 | 5 | 083529 |
| 5/16–18 | NC | 11/16 | 5 | 083530 |
| 5/16–24 | NF | 11/16 | 5 | 083531 |
| 3/8–16 | NC | 25/32 | 5 | 083532 |
| 3/8–24 | NF | 25/32 | 5 | 083533 |
| 7/16–14 | NC | 7/8 | 5 | 083534 |
| 7/16–20 | NF | 7/8 | 5 | 083535 |
| 1/2–13 | NC | 1-1/16 | 5 | 083536 |
| 1/2–20 | NF | 1-1/16 | 5 | 083537 |
| 9/16–12 | NC | 1-1/16 | 5 | 083538 |
| 9/16–18 | NF | 1-1/16 | 5 | 083539 |
| 5/8–11 | NC | 1-1/4 | 1 | 083540 |
| 5/8–18 | NF | 1-1/4 | 1 | 083541 |
| 11/16–11 | NS | 1-7/16 | 1 | 083542 |
| 11/16–16 | NS | 1-7/16 | 1 | 083543 |
| 3/4–10 | NC | 1-7/16 | 1 | 083544 |
| 3/4–16 | NF | 1-7/16 | 1 | 083543 |
| 7/8–9 | NC | 1-5/8 | 1 | 083546 |
| 7/8–14 | NF | 1-5/8 | 1 | 083547 |
| 1–8 | NC | 1-13/16 | 1 | 083548 |
| 1–12 | NF | 1-13/16 | 1 | 083549 |
| 1–14 | NS | 1-13/16 | 1 | 083550 |
| 1-1/8–7 | NC | 2 | 1 | 083551 |
| 1-1/8–12 | NF | 2 | 1 | 083552 |
| 1-1/4–7 | NC | 2-3/16 | 1 | 083553 |
| 1-1/4–12 | NF | 2-3/16 | 1 | 083554 |
| 1-3/8–6 | NC | 2-3/8 | 1 | 083521 |
| 1-3/8–12 | NF | 2-3/8 | 1 | 083522 |
| 1-1/2–6 | NC | 2-9/16 | 1 | 083523 |
| 1-1/2–12 | NF | 2-9/16 | 1 | 083524 |
| 1/8–27 | NPT | 25/32 | 5 | 083525 |
| 1/4–18 | NPT | 1-1/16 | 5 | 083526 |
| 3/8–18 | NPT | 1-1/4 | 1 | 083527 |
| 1/2–14 | NPT | 1-7/16 | 1 | 083555 |
| 3/4–14 | NPT | 1-13/16 | 1 | 083556 |
| 1–11-1/2 | NPT | 2-13/16 | 1 | 083557 |
-
Triumph Twist Drill
Hex Rethreading Dies, Size 1/2-20 NF, Pkg of 5, Northland 083537Northland 83537 - Hex Rethreading Dies, Size 1/2-20 NF, Pkg of 5Outer size matches corresponding nut…
MSRP: $84.04$50.00 -
Triumph Twist Drill
Hex Rethreading Dies, Size 1/2-13 NC, Pkg of 5, Northland 083536Northland 83536 - Hex Rethreading Dies, Size 1/2-13 NC, Pkg of 5Outer size matches corresponding nut…
MSRP: $84.04$50.00 -
Triumph Twist Drill
Hex Rethreading Dies, Size 7/16-20 NF, Pkg of 5, Northland 083535Northland 83535 - Hex Rethreading Dies, Size 7/16-20 NF, Pkg of 5Outer size matches corresponding nu…
MSRP: $77.56$46.15 -
Triumph Twist Drill
Hex Rethreading Dies, Size 7/16-14 NC, Pkg of 5, Northland 083534Northland 83534 - Hex Rethreading Dies, Size 7/16-14 NC, Pkg of 5Outer size matches corresponding nu…
MSRP: $77.56$46.15 -
Triumph Twist Drill
Hex Rethreading Dies, Size 3/8-24 NF, Pkg of 5, Northland 083533Northland 83533 - Hex Rethreading Dies, Size 3/8-24 NF, Pkg of 5Outer size matches corresponding nut…
MSRP: $62.86$37.40 -
Triumph Twist Drill
Hex Rethreading Dies, Size 3/8-16 NC, Pkg of 5, Northland 083532Northland 83532 - Hex Rethreading Dies, Size 3/8-16 NC, Pkg of 5Outer size matches corresponding nut…
MSRP: $62.86$37.40 -
Triumph Twist Drill
Hex Rethreading Dies, Size 5/16-24 NF, Pkg of 5, Northland 083531Northland 83531 - Hex Rethreading Dies, Size 5/16-24 NF, Pkg of 5Outer size matches corresponding nu…
MSRP: $61.01$36.30 -
Triumph Twist Drill
Hex Rethreading Dies, Size 5/16-18 NC, Pkg of 5, Northland 083530Northland 83530 - Hex Rethreading Dies, Size 5/16-18 NC, Pkg of 5Outer size matches corresponding nu…
MSRP: $61.01$36.30 -
Triumph Twist Drill
Hex Rethreading Dies, Size 1/4-28 NF, Pkg of 5, Northland 083529Northland 83529 - Hex Rethreading Dies, Size 1/4-28 NF, Pkg of 5Outer size matches corresponding nut…
MSRP: $54.54$32.45 -
Triumph Twist Drill
Hex Rethreading Dies, Size 1/4-20 NC, Pkg of 5, Northland 083528Northland 83528 - Hex Rethreading Dies, Size 1/4-20 NC, Pkg of 5Outer size matches corresponding nut…
MSRP: $54.54$32.45 -
Triumph Twist Drill
Hex Rethreading Dies, Size 3/8-18 NPT, Pkg of 5, Northland 083527Northland 83527 - Hex Rethreading Dies, Size 3/8-18 NPT, Pkg of 5Outer size matches corresponding nu…
MSRP: $31.53$18.76 -
Triumph Twist Drill
Hex Rethreading Dies, Size 1/4-18 NPT, Pkg of 5, Northland 083526Northland 83526 - Hex Rethreading Dies, Size 1/4-18 NPT, Pkg of 5Outer size matches corresponding nu…
$48.26 -
Triumph Twist Drill
Hex Rethreading Dies, Size 1/8-27 NPT, Pkg of 5, Northland 083525Northland 83525 - Hex Rethreading Dies, Size 1/8-27 NPT, Pkg of 5Outer size matches corresponding nu…
$36.78 -
Triumph Twist Drill
Hex Rethreading Dies, Size 1-1/2-12 NF, Northland 083524Northland 83524 - Hex Rethreading Dies, Size 1-1/2-12 NFOuter size matches corresponding nut size so…
MSRP: $81.29$48.37 -
Triumph Twist Drill
Hex Rethreading Dies, Size 1-1/2-6 NC, Northland 083523Northland 83523 - Hex Rethreading Dies, Size 1-1/2-6 NCOuter size matches corresponding nut size so …
MSRP: $81.29$48.37 -
Triumph Twist Drill
Hex Rethreading Dies, Size 1-3/8-12 NF, Northland 083522Northland 83522 - Hex Rethreading Dies, Size 1-3/8-12 NFOuter size matches corresponding nut size so…
MSRP: $72.62$43.21 -
Triumph Twist Drill
Hex Rethreading Dies, Size 1-3/8-6 NC, Northland 083521Northland 83521 - Hex Rethreading Dies, Size 1-3/8-6 NCOuter size matches corresponding nut size so …
MSRP: $72.62$43.21 -
Triumph Twist Drill
Standard Hex Dies, 1" O.D., Size 1/4-18 NPT, Northland 083520Northland 83520 - Standard Hex Dies, 1in O.D., Size 1/4-18 NPTFits in 1" or 1-7/16" hex die stock (d…
MSRP: $6.59$3.92 -
Triumph Twist Drill
Standard Hex Dies, 1" O.D., Size 1/8-27 NPT, Northland 083519Northland 83519 - Standard Hex Dies, 1in O.D., Size 1/8-27 NPTFits in 1" or 1-7/16" hex die stock (d…
MSRP: $6.59$3.92 -
Triumph Twist Drill
Standard Hex Dies, 1" O.D., Size 1/2-20 NF, Northland 083518Northland 83518 - Standard Hex Dies, 1in O.D., Size 1/2-20 NFFits in 1" or 1-7/16" hex die stock (de…
MSRP: $6.59$3.92
