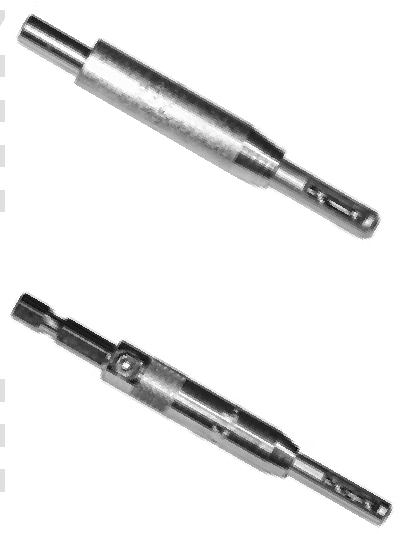

Self Centering Drill Guides (VIX Bits)
Self Centering Drill Guides (VIX Bits) - Southeast Tool
Designed to drill centered screw holes for cabinet and builders hardware.
| Drill Diameter | Screw Size | Shank Diameter | Overall Length | Part # |
|---|---|---|---|---|
| 5/64" | 3 & 4 | 1/4" | 3" | SE56401 |
| 5/64" | 3 & 4 | 1/4" HEX | 4" | SE56401HX |
| 7/64" | 5 & 6 | 1/4" | 3 1/4" | SE76401 |
| 7/64" | 5 & 6 | 1/4" HEX | 4" | SE76401HX |
| 9/64" | 8, 9 & 10 | 1/4" | 3 1/2" | SE96401 |
| 9/64" | 8, 9 & 10 | 1/4" HEX | 4" | SE96401HX |
| 11/64" | 12 | 3/8" | 5" | SE116401 |
| 11/64" | 12 | 1/4" HEX | 4 1/2" | SE116401HX |
| 13/64" | 14 | 3/8" | 4 1/2" | SE136401 |
| 13/64" | 14 | 1/4" HEX | 4 1/2" | SE136401HX |
Replacement Drills
| Drill Size | Replacement for Stock Numbers | Shank Diameter | Overall Length | Part # |
|---|---|---|---|---|
| 5/64" | SE56401, SE56401HX | 5/64" | 2 1/2" | SE56402 |
| 7/64" | SE76401, SE76401HX | 7/64" | 2 7/18" | SE76402 |
| 9/64" | SE96401, SE96401HX | 9/64" | 3 1/8" | SE96402 |
| 11/64" | SE116401, SE116401HX | 11/64" | 4 1/8" | SE116402 |
| 13/64" | SE136401, SE136401HX | 13/64" | 4 1/8" | SE136402 |
Replacement Springs
| Spring Size | Replacement for Stock Numbers | Part # |
|---|---|---|
| 5/64" | SE56401, SE56401HX | SE56403 |
| 7/64" 5 | SE76401, SE76401HX | SE76403 |
| 9/64" | SE96401, SE96401HX | SE96403 |
| 11/64" | SE116401, SE116401HX | SE116403 |
| 13/64" | SE136401, SE136401HX | SE136403 |
Replacement Guides
| Guide Size | Replacement for Stock Numbers | Part # |
|---|---|---|
| 5/64" | SE56401, SE56401HX | SE56404 |
| 7/64" | SE76401, SE76401HX | SE76404 |
| 9/64" | SE96401, SE96401HX | SE96404 |
| 11/64" | SE116401, SE116401HX | SE116404 |
| 13/64" | SE136401, SE136401HX | SE136404 |
-
Southeast Tool
Vix Bit Replacement Guide, 9/64, Southeast Tool SE96404Replacement Guides for Self Centering Drill guides - Southeast Tool SE96404 ; 9/64 Guide size. Repla…
MSRP: $6.24$5.39 -
Southeast Tool
Vix Bit Replacement Spring, 9/64, Southeast Tool SE96403Replacement Springs for Self Centering Drill guides - Southeast Tool SE96403 ; 9/64 Spring size. Rep…
MSRP: $3.57$3.10 -
Southeast Tool
Vix Bit Replacement Drill, 9/64, Southeast Tool SE96402Replacement Drills for Self Centering Drill guides - Southeast Tool SE96402; Made in the USA, HSS, …
MSRP: $5.29$4.59 -
Southeast Tool
Self Centering Drill Guide (VIx Bit), 9/64 Drill, 1/4 Hex Shank, Southeast Tool SE96401HxSelf Centering Drill Guides (VIx Bits) - Southeast Tool SE96401Hx; Made in the USA, HSS, 9/64 Drill …
MSRP: $19.65$17.03 -
Southeast Tool
Self Centering Drill Guide (VIx Bit), 9/64 Drill, 1/4 Shank, Southeast Tool SE96401**This item has been discontinued by the manufacturer. Please see Southeast Tool SE96401HX for a pos…
-
Southeast Tool
Vix Bit Replacement Guide, 7/64, Southeast Tool SE76404Replacement Guides for Self Centering Drill guides - Southeast Tool SE76404 ; 7/64 Guide size. Repla…
MSRP: $6.02$5.23 -
Southeast Tool
Vix Bit Replacement Spring, 7/64, Southeast Tool SE76403Replacement Springs for Self Centering Drill guides - Southeast Tool SE76403 ; 7/64 Spring size. Rep…
MSRP: $3.34$2.89 -
Southeast Tool
Vix Bit Replacement Drill, 7/64, Southeast Tool SE76402Replacement Drills for Self Centering Drill guides - Southeast Tool SE76402; Made in the USA, HSS, …
MSRP: $5.29$4.58 -
Southeast Tool
Self Centering Drill Guide (VIx Bit), 7/64 Drill, 1/4 Hex Shank, Southeast Tool SE76401HxSelf Centering Drill Guides (VIx Bits) - Southeast Tool SE76401Hx; Made in the USA, HSS, 7/64 Drill …
MSRP: $17.86$15.47 -
Southeast Tool
Self Centering Drill Guide (VIx Bit), 7/64 Drill, 1/4 Shank, Southeast Tool SE76401Self Centering Drill Guides (VIx Bits) - Southeast Tool SE76401; Made in the USA, HSS, 7/64 Drill si…
MSRP: $18.42$15.96 -
Southeast Tool
Vix Bit Replacement Guide, 5/64, Southeast Tool SE56404Replacement Guides for Self Centering Drill guides - Southeast Tool SE56404 ; 5/64 Guide size. Repla…
MSRP: $6.69$5.80 -
Southeast Tool
Vix Bit Replacement Spring, 5/64, Southeast Tool SE56403Replacement Springs for Self Centering Drill guides - Southeast Tool SE56403 ; 5/64 Spring size. Rep…
MSRP: $3.34$2.90 -
Southeast Tool
Vix Bit Replacement Drill, 5/64, Southeast Tool SE56402Replacement Drills for Self Centering Drill guides - Southeast Tool SE56402; Made in the USA, HSS, …
MSRP: $7.35$6.36 -
Southeast Tool
Self Centering Drill Guide (VIx Bit), 5/64 Drill, 1/4 Hex Shank, Southeast Tool SE56401HxSelf Centering Drill Guides (VIx Bits) - Southeast Tool SE56401Hx; Made in the USA, HSS, 5/64 Drill …
MSRP: $19.57$16.96 -
Southeast Tool
Self Centering Drill Guide (VIx Bit), 5/64 Drill, 1/4 Shank, Southeast Tool SE56401Self Centering Drill Guides (VIx Bits) - Southeast Tool SE56401; Made in the USA, HSS, 5/64 Drill si…
MSRP: $19.64$17.02 -
Southeast Tool
Vix Bit Replacement Guide, 13/64, Southeast Tool SE136404Replacement Guides for Self Centering Drill guides - Southeast Tool SE136404 ; 13/64 Guide size. Rep…
MSRP: $15.50$13.43 -
Southeast Tool
Vix Bit Replacement Spring, 13/64, Southeast Tool SE136403Replacement Springs for Self Centering Drill guides - Southeast Tool SE136403 ; 13/64 Spring size. R…
MSRP: $4.90$4.24 -
Southeast Tool
Vix Bit Replacement Drill, 13/64, Southeast Tool SE136402Replacement Drills for Self Centering Drill guides - Southeast Tool SE136402; Made in the USA, HSS,…
MSRP: $9.81$8.49 -
Southeast Tool
Self Centering Drill Guide (VIx Bit), 13/64 Drill, 1/4 Hex Shank, Southeast Tool SE136401HxSelf Centering Drill Guides (VIx Bits) - Southeast Tool SE136401Hx; Made in the USA, HSS, 13/64 Dril…
MSRP: $35.74$30.97 -
Southeast Tool
Self Centering Drill Guide (VIx Bit), 13/64 Drill, 3/8 Shank, Southeast Tool SE136401Self Centering Drill Guides (VIx Bits) - Southeast Tool SE136401; Made in the USA, HSS, 13/64 Drill …
MSRP: $66.86$57.92
