Rabbeting Router Bits

 Rabbet Joint

 Rabbeting router bits create a groove or "rabbet" along one edge of a panel, enabling another panel to be joined at 90 degrees. Rabbets may be run completely from one end to the other or stopped short (known as a blind rabbet) to create the illusion of a butt-joint.

By varying the bearing size and router depth virtually any size panels can be joined. Choose a complete rabbet bit set or a single size to meet your needs.



Rabbeting Router Bits

Cutting DiameterCutting LengthCutting DepthShank DiameterOverall LengthPart #
1 1/4" 1/2" 3/8" 1/4" 2 1/8" SE1900
1 1/4" 1/2" 3/8" 1/2" 2 3/8" SE1901
1 3/8" 1/2" 1/2" 1/4" 2 3/8" SE1951
1 3/8" 1/2" 1/2" 1/2" 2 1/2" SE1954
2" 1" 3/4" 1/2" 2 7/8" SE1962





Rabbet Bit Sets

Cutting DiameterCutting Length# of BearingsShank DiameterManufacturerPart #
1-1/4" 1/2" 4 1/4" Southeast Tool SE1902
1-3/8" 1/2" 8 1/4" Whiteside 1952
1-1/4" 1/2" 4 1/2" Southeast Tool SE1903

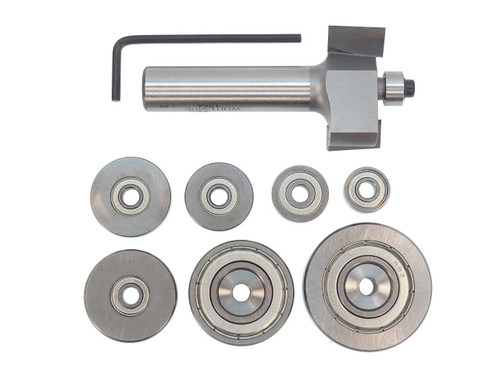

1-3/8" 1/2" 8 1/2" Whiteside 1955
1-1/4" 1/2" 8 1/2" Southeast Tool SE1965

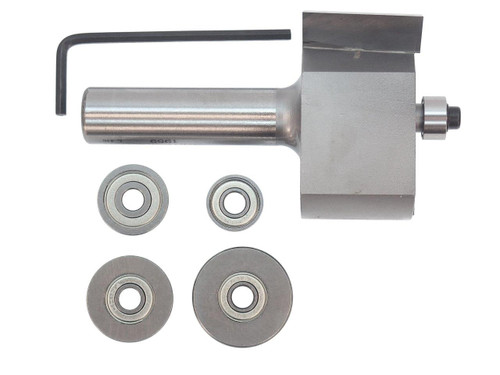

1-7/8" 1" 5 1/2" Whiteside 1960
