Profile Groove Router Bits
 |
Profile grooving router bits are available in a multitude of shapes and sizes. Typically used in CNC panel processing to simulate raised panels, these bits can also be used in hand held plunge routers with the addition of a shank bearing and a template or to cut interior profiles in natural wood. |
Classical Flat Bottom Bit
|
Radius |
Large Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|---|
| 7/64" | 3/4" | 3/8" | 1/4" | 2" | Whiteside | 3770 |
| 13/64" | 1-3/8" | 9/16" | 1/2" | 2-1/2" | Whiteside | 3780 |
Classical Round Bottom Bit
|
Radius |
Large Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|---|
| 3/32" | 1/2" | 3/8" | 1/4" | Southeast Tool | SE3719 | |
| 1/8" | 3/4" | 1/2" | 1/4" | 2" | Whiteside | 3725 |
| 5/32" | 3/4" | 1/2" | 1/2" | Southeast Tool | SE3733 | |
| 5/32" | 3/4" | 1/2" | 1/4" | Southeast Tool | SE3728 | |
| 3/16" | 7/8" | 1/2" | 1/4" | 2" | Whiteside | 3730 |
| 3/16" | 7/8" | 1/2" | 1/2" | 2-1/8" | Whiteside | 3735 |
| 3/16" | 1-1/8" | 1/2" | 1/2" | 2-1/8" | Whiteside | 3740 |
| 7/32" | 1" | 5/8" | 1/2" | Southeast Tool | SE3738 | |
| 7/32" | 1-3/8" | 9/16" | 1/2" | 2-1/2" | Whiteside | 3750 |
| 3/8" | 1-1/2" | 3/4" | 1/2" | Southeast Tool | SE3752 |
Plunge Ogee Bit
|
Radius |
Small Diameter |
Large Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|---|---|
| 1/16" | 3/8" | 3/8" | 1/2" | Southeast Tool | SE3605 | ||
| 1/16" | 3/8" | 3/8" | 1/4" | Southeast Tool | SE3601 | ||
| 3/32" | 1/2" | 3/8" | 1/2" | Southeast Tool | SE3605A | ||
| 3/32" | 1/2" | 3/8" | 1/4" | Southeast Tool | SE3602 | ||
| 3/32" | 1/8" | 1/2" | 1/4" | 1/4" | 1-3/4" | Whiteside | 3602 |
| 1/8" | 3/4" | 7/16" | 1/2" | Southeast Tool | SE3605B | ||
| 1/8" | 3/4" | 7/16" | 1/4" | Southeast Tool | SE3603 | ||
| 3/16" | 7/8" | 1/2" | 1/4" | Southeast Tool | SE3604 | ||
| 3/16" | 3/16" | 7/8" | 1/2" | 1/4" | 2" | Whiteside | 3604 |
| 3/16" | 7/8" | 5/8" | 1/2" | Southeast Tool | SE3606 | ||
| 3/16" | 3/16" | 7/8" | 1/2" | 1/2" | 2" | Whiteside | 3606 |
| 3/16" | 1-1/4" | 11/16" | 1/2" | Southeast Tool | SE3608 | ||
| 3/16" | 3/8" | 1-1/8" | 1/2" | 1/2" | 2-1/4" | Whiteside | 3608 |
MDF Door Bit
|
Profile |
Diameter |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| Bead | 7/8" | 1/2" | 2-1/2" | Whiteside | 5610 |
| Bead | 7/8" | 1/2" | 2-1/2" | Southeast Tool | SE5610 |
| Cove | 5/8" | 3/4" | Vortex | 7963 | |
| Cove | 1-1/2" | 1/2" | 2-1/2" | Whiteside | 5710 |
| Cove | 1-1/2" | 1/2" | 2-1/2" | Southeast Tool | SE5710 |
| Ogee | 1-1/4" | 1/2" | 2-1/2" | Whiteside | 5630 |
| Ogee | 1-1/2" | 1/2" | 2-1/2" | Whiteside | 5725 |
| Ogee | 1-1/2" | 1/2" | 2-1/2" | Southeast Tool | SE5725 |
| Ogee | 2.5" | 3/4" | Vortex | 7966 | |
| Double Ogee | 2.5" | 3/4" | Vortex | 8215 | |
| Shaker | 1-1/4" | 1/2" | Vortex | 8300 | |
| Straight | 1-1/4" | 1/2" | 2-1/2" | Whiteside | 5645 |
| Straight | 1-1/2" | 1/2" | 2-1/2" | Whiteside | 5720 |
| Straight | 1-1/2" | 1/2" | 2-1/2" | Southeast Tool | SE5720 |
| Traditional | 1-1/4" | 1/2" | 2-1/2" | Whiteside | 5620 |
| Traditional | 1-1/4" | 1/2" | 2-1/2" | Southeast Tool | SE5620 |
MDF Door Edge Bits
|
Profile |
Description |
Shank Diameter |
Manufacturer |
Part # |
|---|---|---|---|---|
| Bead | Cuts inside edge of MDF Door Frame | 3/4" | Vortex | 7964 |
| Bead | Cleans inside edge after initial cut | 3/4" | Vortex | 7965 |
| Bevel | Cuts inside edge of MDF Door Frame | 3/4" | Vortex | 7960 |
| Bevel | Cleans inside edge after initial cut | 3/4" | Vortex | 7961 |
| Multi-Profile | Cuts the outside edge profile of MDF Door | 3/4" | Vortex | 7962 |
-
Vortex
MDF Shaker Door Bit Set, Vortex 8310-KITShaker door router bit set includes every bit you need to create MDF Shaker style doors: 830…
MSRP: $560.64$535.33 -
Vortex
MDF Shaker Door Bit, Vortex 8300-KIT2 Wing MDF shaker door router bit designed to hog out the center panel area (smaller bits sol…
$333.67 -
Vortex
MDF Door Raised Panel Bit, Ogee, Vortex 8215Router bit designed to cut the raised panel effect of an MDF door with a double Ogee profile …
$548.10 -
Vortex

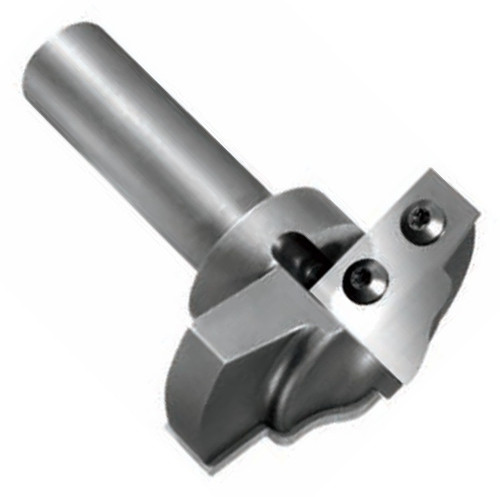

MDF Door Raised Panel Bit, Ogee Fillet, Vortex 7966Router bit designed to cut the raised panel effect of an MDF door with a double Ogee profile …
$548.10 -
Vortex
MDF Door Inside Edge Bit, Bead Corner Cleaner, Vortex 7965Router bit designed to clean the inside edge corners of an MDF door 'frame' with a bead after…
$445.45 -
Vortex
MDF Door Inside Edge Bit, Bead, Vortex 7964Router bit designed to cut the inside edge of an MDF door 'frame' with a bead profile, follow…
MSRP: $700.92$539.17 -
Vortex
MDF Door Raised Panel Bit, Cove, Vortex 7963Router bit designed to cut the raised panel effect of an MDF door with a 5/8" cove. Replaceab…
$482.81 -
Vortex
MDF Door Outer Edge Bit, Multi-Profile, Vortex 7962Router bit designed to cut the outside edge profile of an MDF door while cutting the part out…
$482.84 -
Vortex
MDF Door Inside Edge Bit, Bevel Corner Cleaner, Vortex 7961Router bit designed to clean the inside edge corners of an MDF door 'frame' at a bevel after …
$445.45 -
Vortex

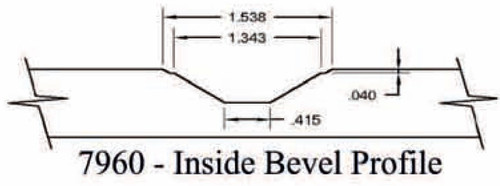

MDF Door Inside Edge Bit, Bevel, Vortex 7960Router bit designed to cut the inside edge of an MDF door 'frame' at a bevel, followed by a c…
$495.03 -
Whiteside
MDF Door Bit, Ogee Panel Cutter, 1/2" Shank, Whiteside 5725Stile & Panel, Combination Profile Router Bits, (Panel Profile Bits - Ogee), - 1/2 Shank, Carbid…
MSRP: $108.85$97.20 -
Whiteside
MDF Door Bit, Straight Panel Cutter, 1/2" Shank, Whiteside 5720Stile & Panel, Combination, Profile, Router Bits, (Panel Profile Bits - Straight), - 1/2 Shank, …
MSRP: $108.85$97.20 -
Whiteside
MDF Door Bit, Cove Panel Cutter, 1/2" Shank, Whiteside 5710Stile and Panel, Combination, Profile, Router Bits, (Panel Profile Bits - Cove), - 1/2 Shank, Carbid…
MSRP: $108.85$97.20 -
Whiteside
MDF Door Bit, Straight Stile Cutter, 1/2" Shank, Whiteside 5645Stile & Panel, Combination, Profile, Router Bits, (Stile Profile Bits - Straight), - 1/2 Shank, …
MSRP: $75.60$67.50 -
Whiteside
MDF Door Bit, Ogee Stile Cutter, 1/2" Shank, Whiteside 5630Stile & Panel, Combination, Profile, Router Bits, (Stile Profile Bits - Ogee), - 1/2 Shank, Carb…
MSRP: $75.60$67.50 -
Whiteside
MDF Door Bit, Traditional Stile Cutter, 1/2" Shank, Whiteside 5620Stile & Panel, Combination, Profile, Router Bits, (Stile Profile Bits - Traditional), - 1/2 Shan…
MSRP: $75.60$67.50 -
Whiteside
MDF Door Bit, Bead Stile Cutter, 1/2" Shank, Whiteside 5610Stile & Panel, Combination, Profile, Router Bits, (Stile Profile Bits - Bead), - 1/2 Shank, Carb…
MSRP: $69.54$62.09 -
Whiteside

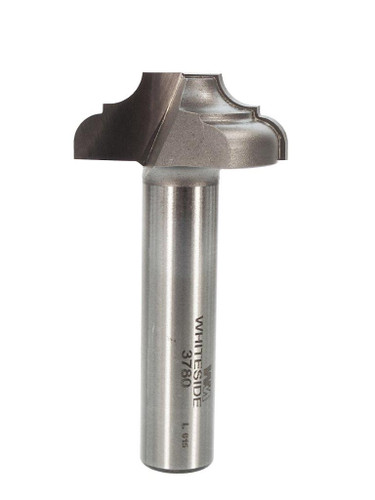

Classical Flat Bottom Bit, 13/64 Radius, 1-3/8 Lg Dia, 1/2 Shank, Whiteside 3780Classical, Flat Bottom, Router Bits - 1/2" Shank, Carbide Tipped - Whiteside 3780; 13/64" Radius , 1…
MSRP: $75.60$67.50 -
Whiteside
Classical Flat Bottom Bit, 7/64 Radius, 3/4 Lg Dia, 1/4 Shank, Whiteside 3770Classical, Flat Bottom, Router Bits - 1/4" Shank, Carbide Tipped - Whiteside 3770; 7/64" Radius , 3/…
MSRP: $51.41$45.91 -
Whiteside
Classical Round Bottom Bit, 7/32 Radius, 1-3/8 Lg Dia, 1/2 Shank, Whiteside 3750Classical, Round Bottom, Router Bits - 1/2" Shank , Carbide Tipped - Whiteside 3750; 7/32" Radius , …
MSRP: $75.60$67.50
