Metric TS-LS Joinery System, 810mm Range, Incra M-LS32-TS-WF

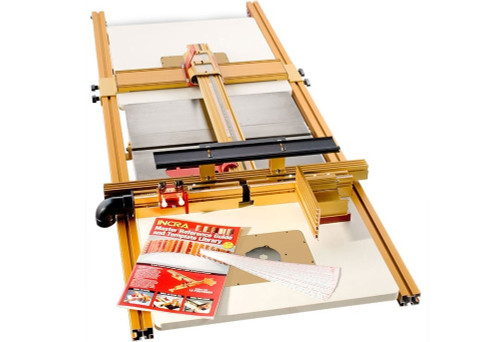

  • Incra TS-LS Joinery System
  • Incra LS Positioner Detail - Incra M-LS32-TS-WF
  • Incra LS Positioner Lead Screw Fine Adjustment
  • Incra LS Positioner Installation
  • Incra LS Postioner Base Attachment to Table Saw Rails
  • Incra Table Saw Fence Attachment at Rails
Retail:
$969.95
Our Low Price:
$823.32 (You save $146.63)
SKU:
851-M-LS32-TS-WF
Brand:
Reviews:
Availability:
This product will ship approximately 4-6 weeks from the order date. Orders will ship sooner whenever possible.
Shipping:
Calculated at checkout


Product Description


Table saw upgrade package with metric scales for saws measuring up to 28-1/2" deep. You get a complete system including 92" rails, rip fence, router fence, 810mm LS Positioner and more (router table not included).

INCRA M-TS-LS-WF Joinery Sysem - 810mm Range consists of:

  • Base Mount Unit and TS-IIIA 36" Rip Fence - Dismounts for cross-cutting operations and remounts in less than 10 seconds. This also makes it easy to use INCRA precision on both sides of the blade. The positioning range is 810mm to the right and 355mm to the left of the blade. The fence skims above the table on whisper smooth glides, eliminating all fence to table contact.

  • 72" Rails - PAIR

  • INCRA LS Positioner 810mm - The LS Positioner offers rock-solid fence travel of 810mm. Lifting the red locking lever causes the patented steel lead screw positioning system to instantly snap the fence to the dead center of any multiple of 1mm with an accuracy of 0.05mm. This allows fence positioning far beyond what's possible by eyesight alone, and fence setups are instantly repeatable. The integrated micro adjust knob allows moving between whole increments with 0.025mm resolution for total control over small fence adjustments.

  • INCRA Shop Stop - Instead of the basic stop block of typical router fences, the included INCRA Shop Stop is based on their patented incremental positioning racks to give you unparalleled accuracy and repeatability when limiting a board's travel across the router bit or setting the endpoints of stopped grooves for drawer and box bottoms.

  • Right Angle Fixture - Incra's largest Right Angle Fixture is included to keep workpieces square to the fence and square to the table for joinery operations.

  • Wonder Fence Router Table Fence (Metric) - The Wonder Fence slides into the front T-slot of the Pro-II joinery fence, and it adds adjustability to accept any size router bit and accommodates zero-clearance subfences. The Wonder Fence also adds the ability to very precisely offset the infeed and outfeed fence halves for edge jointing rough lumber or setting up for complex moulding jobs like reversible glue joints.

  • Hi-Rise Fence Cap - Keeps larger parts perfectly vertical for edge machining operations.

  • Master Reference Guide with 25-piece (metric) Template Library - The Master Reference Guide provides straightforward instructions and 25 joinery templates to slide into the positioner to provide a visual reference for each joint pattern.Those templates can produce a mind-boggling variety of joints - 9 metric box joint patterns and 16 metric dovetail patterns are included, and each one of the dovetail patterns can be cut half blind, through, sliding, or corner post.

  • 82-Minute Instructional LS Positioner DVD - This great disc is loaded with information - how to take advantage of the Wonder Fence's advanced features, cut perfect fitting rabbets and dadoes, and it has full-length instructions for box joints and the four most common styles of dovetail joints.

See the TS-LS Compatibility Chart for more information regarding the TS-LS & TS Router Table installations
