Insulated Open-Ended Spanners

Insulated Open-Ended Spanners

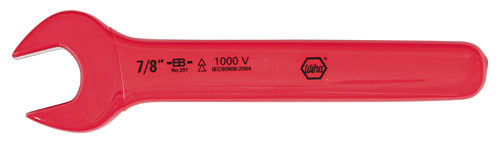

wiha-insulated-spanner.jpgWiha insulated open-end wrenches are double coated, individually tested to 10,000 volts and certified to 1000v AC or 1500v DC to meet ASTM F-1505-01, EN/IEC 60900, VDE 0680, DIN 7446 and CSA standards.

Made from high quality forged steel with a 15 degree offset handle

Inch Sizes



Metric Sizes
SizeLength (mm)Part #
1/4 57.5 20131
5/16 100 20133
3/8 105 20135
7/16 117 20136
1/2 140 20137
9/16 146 20138
5/8 158 20140
11/16 165 20141
3/4 178 20142
13/16 191 20144
7/8 192 20145
15/16 201 20146
1 213 20147
1-1/16 233 20148
1-1/8 233 20149

SizeLength (mm)Part #
6 97 20006
7 98 20007
8 104 20008
9 108 20009
10 107 20010
11 118 20011
12 129 20012
13 137 20013
14 150 20014
15 151 20015
16 164 20016
17 162 20017
18 173 20018
19 178 20019
20 190 20020
22 196 20022
24 211 20024
27 218 20027
30 235 20030
32 237 20032



Insulated Open-End Wrench Sets

 Sizes IncludedPart #
wiha-insulated-spanner-set-14pc.jpg 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24mm 20091
5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1", 1-1/16, 1-1/8" 20190
wiha-insulated-spanner-set-8pc.jpg 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4" 20192
6, 7, 8, 10, 13, 14, 17, 19mm 20093
1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1" 20094
!
