Heavy Duty Split Head Mallets

Heavy Duty Split Head Mallets

wiha-split-head-mallets.jpg • Easy replacement with standard components
• Malleable cast iron heads
• Color coded faces
• D-21 to D-80 shore hardness
• Rugged hickory handles

Malleable Cast Iron Split Head Mallets With Hickory Handle

Face Diameter (mm)FacesLength Overall (mm)Weight (Lbs)Part #

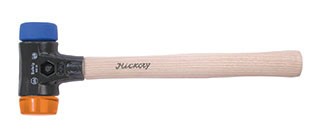

30 Hard/Soft 260 10.6oz 83230
40 Hard/Soft 280 1.4 83240
50 Hard/Soft 310 2.4 83250
60 Hard/Soft 340 3.7 83260
80 MedSoft/X-hard 400 6.5 83280
80 MedSoft/X-hard 800 7.6 83289



Malleable Cast Iron Split Head Mallet Housing With Hickory Handle

Face I.D. (mm)Length Overall (mm)Length Overall (in)Weight (lbs.)Part #
30 260 10.2 0.87 83221
40 280 11 1.5 83222
50 310 12.2 2.3 83223
60 340 13.3 3.2 83224
80 400 15.8 5.6 83225
80 800 31.5 7.2 83226



Replacement Heavy Duty Split Head Mallet Housing

Face I.D. (mm)Weight (lbs.)Part #
30 0.5 83238
40 1 83248
50 1.6 83258
60 2.7 83268
80 4.4 83288



Hickory Split Head Mallet Replacement Handles

Fits HousingLength (mm)Length (in)Weight (lbs.)Part #
83238 30mm 260 10.2 0.18 83273
83248 40mm 280 11 0.24 83274
83258 50mm 310 12.2 0.39 83275
83268 60mm 340 13.3 0.49 83276
83288 80mm 400 15.8 0.68 83277
83288 80mm 800 31.5 1.3 83279



Replacement Square Hammer Faces        wiha-split-head-mallet-face-square.jpg
TypeDiameter (mm)Part #
Soft - Blue 40 83346
Medium Hard - yellow 40 83347



Color Coded Faces

For Heavy Duty Split Head Mallets

 wiha-split-head-mallet-face-tpe.jpg wiha-split-head-mallet-face-latex.jpg wiha-split-head-mallet-face-polyurethane.jpg wiha-split-head-mallet-face-cell-acetate.jpg wiha-split-head-mallet-face-nylon.jpg
TPE Latex Rubber Polyurethane Cell Acetate Nylon
Diameter (mm)TypeShore Hardness MaterialColorPart #
80 MedSoft 45-D Latex Rubber Black 83282
80 X-Hard 80-D Nylon White 83285
30 Soft 21-D TPE Blue 83231
30 MedSoft 45-D Latex Rubber Black 83232
30 MedHard 65-D Polyurethane Yellow 83233
30 Hard 72-D Cell Acetate Orange 83234
30 X-Hard 80-D Nylon White 83235
40 Soft 21-D TPE Blue 83241
40 MedSoft 45-D Latex Rubber Black 83242
40 MedHard 65-D Polyurethane Yellow 83243
40 Hard 72-D Cell Acetate Orange 83244
40 X-Hard 80-D Nylon White 83245
50 Soft 21-D TPE Blue 83251
50 MedSoft 45-D Latex Rubber Black 83252
50 MedHard 65-D Polyurethane Yellow 83253
50 Hard 72-D Cell Acetate Orange 83254
50 X-Hard 80-D Nylon White 83255
60 Soft 21-D TPE Blue 83261
60 MedSoft 45-D Latex Rubber Black 83262
60 MedHard 65-D Polyurethane Yellow 83263
60 Hard 72-D Cell Acetate Orange 83264
60 X-Hard 80-D Nylon White 83265



Build A Mallet Split Head Mallet Sets

DescriptionPart #
15 Piece Split Head Mallet Set 83290

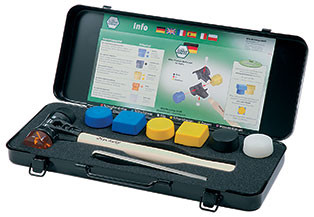

10 Piece Split Head Mallet Set 83295
!
