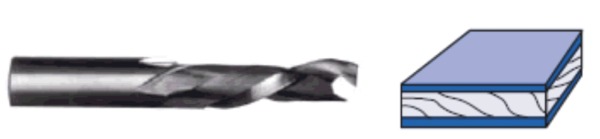

Up-Down (Compression) Spiral Router Bits

Up/Down Cut (1+1 Compression)

Solid Carbide - Single Flute

Cutting Diameter	Cutting Length	Shank Diameter	Overall Length	Part Number
1/4"	1"	1/4"	2 1/2"	UD2100
3/8"	1 1/4"	3/8"	3"	UD4125
1/2"	1 1/2"	1/2"	3 1/2"	UD5150

Place your order for Whiteside Router bits before 2:30pm ET Mon-Fri to have your order ship same Day!

Up/Down Cut (2+2 Compression)

Solid Carbide - Two Flute

Cutting Diameter	Cutting Length	Shank Diameter	Overall Length	Part Number
1/4"	1"	1/4"	2 1/2"	UD2102
3/8"	1"	3/8"	2 1/2"	*UD4102M
3/8"	1 1/4"	3/8"	3"	UD4122
1/2"	1 1/4"	1/2"	3"	UD5122
1/2"	1 1/4"	1/2"	3"	*UD5122M
1/2"	1 1/2"	1/2"	3 1/2"	UD5152
1/2"	1 5/8"	1/2"	3 1/2"	UD5162
1/2"	2"	1/2"	4"	UD5202
5/8"	1 1/2"	5/8"	4"	UD6152
3/4"	2"	3/4"	5"	UD7202

*Mortise Style Part numbers ending with an "M" have a 1/4" up cut on the end flute. This allows down shear cutting action to the top edge during shallow cuts.

Hercules 2 Flute Compression Spirals

Engineered for Maximum Bit Life in High Wear Applications

Cutting Diameter	Cutting Length	Shank Diameter	Overall Length	Part Number
3/8"	1-1/4"	3/8"	3"	HC4122
3/8"	1-1/4"	3/8"	3"	*HC4122M
1/2"	1-1/4"	1/2"	3"	HC5122
1/2"	1-1/4"	1/2"	3"	*HC5122M

*Mortise Style Part numbers ending with an "M" have a shorter Upcut for shallow dado cuts.

Ultimate Compression Spirals

Solid Carbide, for cutting Plywood and MDF

Cutting Diameter	Cutting Length	Shank Diameter	Overall Length	Part Number
3/8"	1/2"	1/2"	3"	UC5050
3/8"	3/4"	1/2"	3"	UC5075

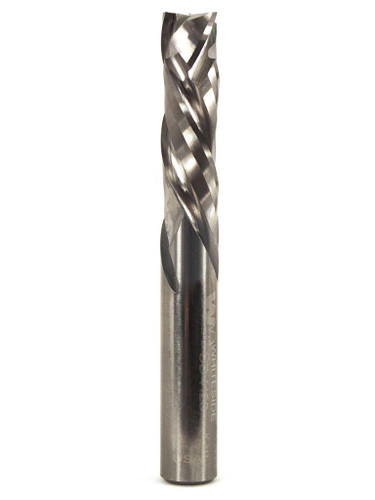

Up/Down Cut (3+3 Compression)

Solid Carbide - Three Flute

Cutting Diameter	Cutting Length	Shank Diameter	Overall Length	Part Number
3/8"	1 1/4"	3/8"	3"	UD4123M
1/2"	1 1/4"	1/2"	3"	UD5123
1/2"	1 1/4"	1/2"	3"	*UD5123M
1/2"	1 3/8"	1/2"	3 1/2"	UD5143
1/2"	1 5/8"	1/2"	3 1/2"	UD5163
1/2"	1 5/8"	1/2"	3 1/2"	*UD5163M

*Mortise Style Part numbers ending with an "M" have a 1/4" up cut on the end flute. This allows down shear cutting action to the top edge during shallow cuts.

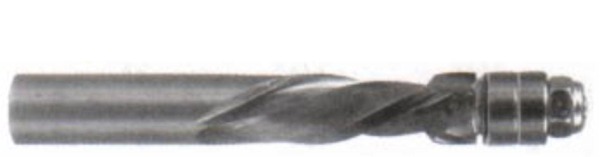

Flush Trim Up/Down Cut Spiral

Up/Down Cut (2+2 Compression)
Solid Carbide - Two Flute

Cutting Diameter	Cutting Length	Shank Diameter	Overall Length	Part Number
1/2"	1 1/2"	1/2"	4 1/4"	UDFT5152
