Square Bearing Laminate Trimmer Router Bits


Laminate Trimmers With Euro Square Bearings - Whiteside

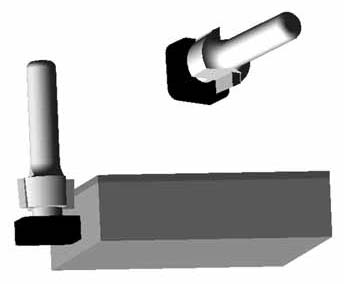

Here's a Square Deal! A quality Whiteside Trim Bit with the exclusive Euro Square Bearing. How does it work? The square bearing stops spinning as soon as it touches the workpiece. Then the side of the square simply slides along the workpiece edge. Compare this to a regular bearing tflat rolls along the edge - building up more glue and residue with every revolu- tion. Plus, the square is made fron non-stick Teflon®, so it wipes clean easily and it won't mark your workpiece. If you cut laminates, you need to try this bit.

Place your order for Whiteside Router bits before 2:30pm ET Mon-Fri to have your order ship same Day!

Cutting DiameterCutting LengthOverall LengthBearing NumberPart Number
1/4" SHANK
1/2" 1/4" 1 5/8" B3SQ 2640
3/4" 5/8" 2 1/4" B8SQ 2650
1/2" SHANK
3/4" 5/8" 2 1/4" B8SQ 2660

These bits are designed with a slight taper on the cutting diameter. This allows up or down adjustment to achieve an exact blend - even after resharpening.



 Laminate Roundover Bit with Square Bearing

RadiusCut DiameterCut LengthShankOverall LengthPart Number
1/16" 1/2" 3/16" 1/4" 1-5/8" 2631
