Dovetail Router Bits

Dovetail joints are one of the strongest joiner joints in woodworking. Dovetail joints are great for the construction of boxes, drawers, chests, and fine casework. Whiteside Dovetail router bits feature a quality piece of carbide that stays sharp and cuts cleanly, even after many uses. Whiteside offers a great selection of Quality Dovetail Bits to fit a wide range of popular Dovetailing jigs. Wether you are using Akeda, Leigh, Incra, Porter Cable, or Keller Jig, you are sure to find a quality Whiteside Dovetail Bit to fit your jig and cut beautifully.

Place your order for Whiteside Router bits before 2:30pm ET Mon-Fri to have your order ship same Day!

Akeda Dovetail Bits

Whiteside offers quality bits made to Akeda's specifications for the Akeda Dovetail Jig. Available individually or in a complete set. All our Akeda Dovetail router bits have a 1/4" Shank.

Description	Part#
Akeda 7° Dovetail Bit	DA7-438
Akeda 9° Dovetail Bit	DA9-438
Akeda 11° Dovetail Bit	DA11-438
Akeda 14° Dovetail Bit	DA14-438
Akeda 20° Dovetail Bit	DA20-438
Akeda Standard Straight Bit	1020 AKS
Akeda Oversize Straight Bit	1020 AOS
Akeda Undersize Straight Bit	1020 AUS
Akeda Box Joint Bit	1020 ABJ
Akeda 9 pc. Set	D102A

Incra Dovetail Sets

Top Quality Dovetailing Sets for use with the popular Incra System. Choose the #D101 Set (1/4" Shank) for the smaller Dovetails (1/4", 3/8", 1/2", 17/32"). Take the #605 Set (1/2" Shank) for the heavier 3/8", 1/2", 5/8", & 3/4" Dovetail bits. Both Sets also include the 1/4" and 3/8" Box Joint Bits.

Description	Part#
6 Piece Incra Set - 1/4" Shank	D101
6 Piece Incra Set - 1/2" Shank	605
All bits available individually

Leigh Dovetail Sets

Upgrade to Whiteside Quality Bits for your Leigh Jig. The smaller bits are supplied in the recommended 8mm Shanks (1/2" Adapter Collet is included). The largest sizes come in 1/2" shanks. Improved Performance Guaranteed.

Description	Part#
7 Piece Leigh Set. Includes D8-437x8, D8-687, D14-51x8, D18-50x8, 1020x8,1067, and 6400x8 Adapter.	D108
6 Piece Leigh Set for #D1600 16" Jig. All bits 8mm Shank. 6400x8 Adapter Collet to 1/2" is included. Complete with the following bits: 1020x8, D8-375x8, D8-500x8, D14-51x8, D18-50x8 .	D116
All bits available individually

Dovetail Bits

Premium Quality Dovetail Bits to meet all your Dovetailing Needs.

Large Diameter	Depth Of Cut	Shank Diameter	Overall Length	Cross Reference	Part Number
7° Angle
17/32"	3/4"	1/2"	2 1/2"	P•C #43776PC	D7-531
5/8"	7/8"	1/2"	2 5/8"	Incra™	D7-625
3/4"	7/8"	1/2"	2 5/8"	Incra™	D7-750
7/8"	7/8"	1/2"	2 1/2"	Stair Tread	D7-875
7/8"	7/8"	1/2"	2 1/2"	Stair Tread	*D7-875LH
7 1/2° Angle
1/4"	5/16"	1/4"	2 1/2"	Incra™/OmniJig® 43639	SC D75-25
8° Angle
1/4"	1/4"	1/4"	2 1/2"	Leigh #50	SC D8-250
1/4"	1/4"	8mm	2 1/2"	Leigh #50-8mm shank	SC D8-250x8
5/16"	3/8"	1/4"	2 1/4"	Leigh #60	D8-312
5/16"	3/8"	8mm	2 1/4"	Leigh #60-8mm shank	D8-312x8
3/8"	1/2"	1/4"	2 3/8"	Leigh #70	D8-375
3/8"	1/2"	8mm	2 3/8"	Leigh #70-8mm shank	D8-375x8
7/16"	5/8"	1/4"	2 3/8"	Leigh #75	D8-437
7/16"	5/8"	8mm	2 3/8"	Leigh #75-8mm shank	D8-437x8
1/2"	13/16"	1/4"	2 3/4"	Leigh #80	D8-500
1/2"	13/16"	8mm	2 3/4"	Leigh #80-8mm shank	D8-500x8
11/16"	1"	1/2"	3"	Leigh #90	D8-687
13/16"	1 1/4"	1/2"	3 1/4"	Leigh # 100	D8-812
9° Angle
5/16"	3/8"	1/4"	2 1/4"	Incra™	D9-312
3/8"	3/8"	1/4"	2"	Incra™	D9-372
3/8"	3/8"	3/8"	2"		D9-373
3/8"	3/8"	1/2"	2"		D9-375
3/8"	3/8"	1/2"	2"		*D9-375LH
3/8"	3/8"	1/2"	2 1/2"	Incra™	D9-376
3/8"	3/8"	1/2"	2 1/2"	Incra™	*D9-376LH
0.39	3/8"	1/2"	2"		D9-390
0.39	3/8"	1/2"	2"		*D9-390LH
10° Angle
1/2"	5/8"	1/4"	2 1/2"	Incra™/Leigh #101	D10-50
1/2"	5/8"	8mm	2 1/2"	Leigh #101-8mm shank	D10-50x8
1/2"	5/8"	1/2"	2 5/8"	Incra™	D10-55
14° Angle
3/8"	3/8"	1/4"	2"		D14-375
1/2"	1/2"	1/4"	2"	Incra™/OmniJig® #43705	D14-50
1/2"	1/2"	1/4"	2 3/8"	Leigh #120	D14-51
1/2"	1/2"	8mm	2 3/8"	Leigh #120-8mm shank	D14-51x8
1/2"	1/2"	1/2"	2 1/2"	Incra™/OmniJig® #43750	D14-55
17/32"	1/2"	1/4"	2"	Incra™	D14-531
3/4"	3/4"	1/2"	3"	OmniJig® #43774	D14-75
1"	7/8"	1/2"	2 1/2"		D14-100
18° Angle
1/2"	3/8"	1/4"	2 1/4"	Leigh #128	D18-50
1/2"	3/8"	8mm	2 1/4"	Leigh #128-8mm shank	D18-50x8
Straight Bits
5/16"	1"	1/4"	2 3/4"	Leigh #140	1020
5/16"	1"	8mm	2 3/4"	Leigh #140-8mm shank	1020x8
13/32"	1"	1/2"	2 1/2"	P•C #43743PC	1064A

* Left Hand

SC - Solid Carbide

All bits designated Incra™ are also compatible with the JoinTech™ system

Keller Dovetail Bits

Whiteside Machine Company offers precision router bits to match Keller's unique dovetailing system. All tools listed below are supplied with the required ball bearings.

Large Diameter	Cutting Length	Shank Diameter	Overall Length	Keller Number	Part Number
7° Angle Dovetail
11/32"	3/8"	1/4"	2 1/4"	1631	K31
7/16"	3/4"	1/4"	2 5/8"	1633	K33
5/8"	1"	3/8"	2 5/8"	2435	K35
Straight Bits
5/8"	1/2"	1/4"	2 1/4"	1641	K41
5/8"	3/4"	1/4"	2 1/2"	1643/2443	K43
7/8"	1"	3/8"	2 5/8"	2445	3015
9/16"	3/4"	1/4"	2 1/4"	1642	*3032

*Box Joint Bit

Whiteside

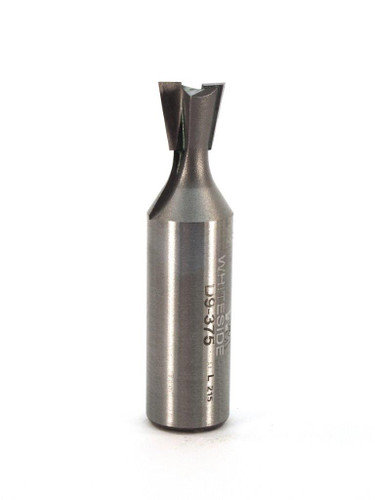

Dovetail Router Bit, 3/8 Dia, 9deg Angle, 1/2 Shank, Whiteside D9-375
Dovetail Router Bits - 1/2 Shank, 9deg Angle, Carbide Tipped - Whiteside D9-375; 3/8 Large Diameter,…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $29.96

Was:

Now: $25.47
Whiteside
Dovetail Router Bit, 3/8 Dia, 9deg Angle, 3/8 Shank, Whiteside D9-373
Dovetail Router Bits - 3/8 Shank, 9deg Angle, Carbide Tipped - Whiteside D9-373; 3/8 Large Diameter,…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $23.11

Was:

Now: $19.23
Whiteside
Dovetail Router Bit, 3/8 Dia, 9deg Angle, 1/4 Shank, Whiteside D9-372
Dovetail Router Bits - 1/4 Shank, 9deg Angle, Carbide Tipped - Whiteside D9-372; 3/8 Large Diameter,…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $27.92

Was:

Now: $23.73
Whiteside
Dovetail Router Bit, 5/16 Dia, 9deg Angle, 1/4 Shank, Whiteside D9-312
Dovetail Router Bits - 1/4 Shank, 9deg Angle, Carbide Tipped - Whiteside D9-312; 5/16 Large Diameter…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $30.80

Was:

Now: $26.18
Whiteside

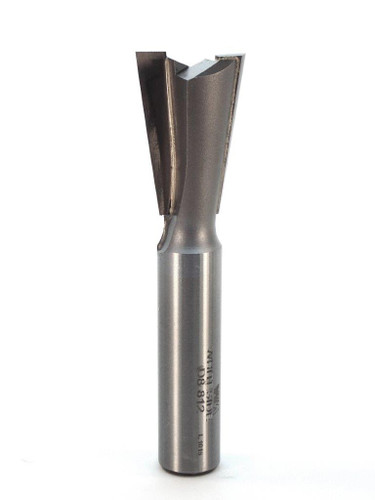

Dovetail Router Bit, 13/16 Dia, 8deg Angle, 1/2 Shank, Whiteside D8-812
Dovetail Router Bits - 1/2 Shank, 8deg Angle, Solid Carbide, Carbide Tipped - Whiteside D8-812; 13/1…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $37.11

Was:

Now: $31.54
Whiteside
Dovetail Router Bit, 11/16 Dia, 8deg Angle, 1/2 Shank, Whiteside D8-687
Dovetail Router Bits - 1/2 Shank, 8deg Angle, Solid Carbide, Carbide Tipped - Whiteside D8-687; 11/1…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $34.59

Was:

Now: $29.40
Whiteside
Dovetail Router Bit, 1/2 Dia, 8deg Angle, 8mm Shank, Whiteside D8-500x8
Dovetail Router Bits - 8 mm Shank, 8deg Angle, Solid Carbide, Carbide Tipped - Whiteside D8-5000x8; …

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $34.59

Was:

Now: $29.40
Whiteside
Dovetail Router Bit, 1/2 Dia, 8deg Angle, 1/4 Shank, Whiteside D8-500
Dovetail Router Bits - 1/4 Shank, 8deg Angle, Solid Carbide, Carbide Tipped - Whiteside D8-500; 1/2 …

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $28.55

Was:

Now: $24.27
Whiteside
Dovetail Router Bit, 7/16 Dia, 8deg Angle, 8mm Shank, Whiteside D8-437x8
Dovetail Router Bits - 8mm Shank, 8deg Angle, Solid Carbide, Carbide Tipped - Whiteside D8-437x8; 7/…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $36.12

Was:

Now: $30.70
Whiteside
Dovetail Router Bit, 7/16 Dia, 8deg Angle, 1/4 Shank, Whiteside D8-437
Dovetail Router Bits - 1/4 Shank, 8deg Angle, Solid Carbide, Carbide Tipped - Whiteside D8-437; 7/16…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $29.96

Was:

Now: $25.47
Whiteside
Dovetail Router Bit, 3/8 Dia, 8deg Angle, 8mm Shank, Whiteside D8-375x8
Dovetail Router Bits - 8mm Shank, 8deg Angle, Solid Carbide, Carbide Tipped - Whiteside D8-375x8; 3/…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $29.40

Was:

Now: $24.99
Whiteside
Dovetail Router Bit, 3/8 Dia, 8deg Angle, 1/4 Shank, Whiteside D8-375
Dovetail Router Bits - 1/4 Shank, 8deg Angle, Solid Carbide, Carbide Tipped - Whiteside D8-375; 3/8 …

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $25.49

Was:

Now: $21.67
Whiteside
Dovetail Router Bit, 5/16 Dia, 8deg Angle, 8mm Shank, Whiteside D8-312x8
Dovetail Router Bits - 8mm Shank, 8deg Angle, Solid Carbide, Carbide Tipped - Whiteside D8-312x8; 5/…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $33.60

Was:

Now: $28.56
Whiteside
Dovetail Router Bit, 5/16 Dia, 8deg Angle, 1/4 Shank, Whiteside D8-312
Dovetail Router Bits - 1/4 Shank, 8deg Angle, Solid Carbide, Carbide Tipped - Whiteside D8-312; 5/16…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $28.55

Was:

Now: $24.27
Whiteside
Dovetail Router Bit, 7/8 Dia, 7deg Angle, 1/2 Shank, Whiteside D7-875LH
Dovetail Router Bits - 1/2 Shank, 7deg Angle, Left Hand, Carbide Tipped - Whiteside D7-875LH; 7/8 La…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $55.43

Was:

Now: $47.12
Whiteside
Dovetail Router Bit, 7/8 Dia, 7deg Angle, 1/2 Shank, Whiteside D7-875
Dovetail Router Bits - 1/2 Shank, 7deg Angle, Carbide Tipped - Whiteside D7-875; 7/8 Large Diameter,…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $47.87

Was:

Now: $40.69
Whiteside
Dovetail Router Bit, 3/4 Dia, 7deg Angle, 1/2 Shank, Whiteside D7-750
Dovetail Router Bits - 1/2 Shank, 7deg Angle, Carbide Tipped - Whiteside D7-750; 3/4 Large Diameter,…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $41.99

Was:

Now: $35.69
Whiteside
Dovetail Router Bit, 5/8 Dia, 7deg Angle, 1/2 Shank, Whiteside D7-625
Dovetail Router Bits - 1/2 Shank, 7deg Angle, Carbide Tipped - Whiteside D7-625; 5/8 Large Diameter,…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $37.11

Was:

Now: $31.54
Whiteside
Dovetail Router Bit, 17/32 Dia, 7deg Angle, 1/2 Shank, Whiteside D7-531
Dovetail Router Bits - 1/2 Shank, 7deg Angle, Carbide Tipped - Whiteside D7-531; 17/32 Large Diamete…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $30.80

Was:

Now: $26.18
Whiteside
Dovetail Router Bit, 1/2 Dia, 18deg Angle, 8mm Shank, Whiteside D18-50x8
Dovetail Router Bits - 8mm Shank, 18deg Angle, 1/2" diameter, 3/8" cut length, 8mm shank, 2-1/4" ove…

MSRP:

Was:

Now: (Inc. Tax)

MSRP: $34.85

Was:

Now: $29.62
