Dovetail Router Bits
Dovetail joints are one of the strongest joiner joints in woodworking. Dovetail joints are great for the construction of boxes, drawers, chests, and fine casework. Whiteside Dovetail router bits feature a quality piece of carbide that stays sharp and cuts cleanly, even after many uses. Whiteside offers a great selection of Quality Dovetail Bits to fit a wide range of popular Dovetailing jigs. Wether you are using Akeda, Leigh, Incra, Porter Cable, or Keller Jig, you are sure to find a quality Whiteside Dovetail Bit to fit your jig and cut beautifully.
Place your order for Whiteside Router bits before 2:30pm ET Mon-Fri to have your order ship same Day!
Akeda Dovetail Bits
Whiteside offers quality bits made to Akeda's specifications for the Akeda Dovetail Jig. Available individually or in a complete set. All our Akeda Dovetail router bits have a 1/4" Shank.
| Description | Part# |
|---|---|
| Akeda 7° Dovetail Bit | DA7-438 |
| Akeda 9° Dovetail Bit | DA9-438 |
| Akeda 11° Dovetail Bit | DA11-438 |
| Akeda 14° Dovetail Bit | DA14-438 |
| Akeda 20° Dovetail Bit | DA20-438 |
| Akeda Standard Straight Bit | 1020 AKS |
| Akeda Oversize Straight Bit | 1020 AOS |
| Akeda Undersize Straight Bit | 1020 AUS |
| Akeda Box Joint Bit | 1020 ABJ |
| Akeda 9 pc. Set | D102A |
Incra Dovetail Sets |

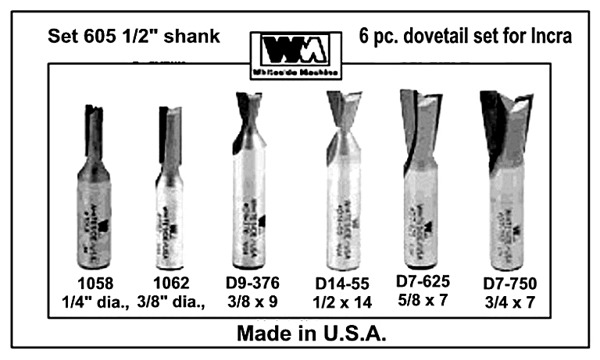

| Top Quality Dovetailing Sets for use with the popular Incra System. Choose the #D101 Set (1/4" Shank) for the smaller Dovetails (1/4", 3/8", 1/2", 17/32"). Take the #605 Set (1/2" Shank) for the heavier 3/8", 1/2", 5/8", & 3/4" Dovetail bits. Both Sets also include the 1/4" and 3/8" Box Joint Bits. |
| Description | Part# |
|---|---|
| 6 Piece Incra Set - 1/4" Shank | D101 |
| 6 Piece Incra Set - 1/2" Shank | 605 |
| All bits available individually | |
Leigh Dovetail Sets |
| Upgrade to Whiteside Quality Bits for your Leigh Jig. The smaller bits are supplied in the recommended 8mm Shanks (1/2" Adapter Collet is included). The largest sizes come in 1/2" shanks. Improved Performance Guaranteed. |
| Description | Part# |
|---|---|
| 7 Piece Leigh Set. Includes D8-437x8, D8-687, D14-51x8, D18-50x8, 1020x8,1067, and 6400x8 Adapter. | D108 |
| 6 Piece Leigh Set for #D1600 16" Jig. All bits 8mm Shank. 6400x8 Adapter Collet to 1/2" is included. Complete with the following bits: 1020x8, D8-375x8, D8-500x8, D14-51x8, D18-50x8 . | D116 |
| All bits available individually | |
Dovetail Bits |
| Premium Quality Dovetail Bits to meet all your Dovetailing Needs. |
| Large Diameter | Depth Of Cut | Shank Diameter | Overall Length | Cross Reference | Part Number |
|---|---|---|---|---|---|
| 7° Angle | |||||
| 17/32" | 3/4" | 1/2" | 2 1/2" | P•C #43776PC | D7-531 |
| 5/8" | 7/8" | 1/2" | 2 5/8" | Incra™ | D7-625 |
| 3/4" | 7/8" | 1/2" | 2 5/8" | Incra™ | D7-750 |
| 7/8" | 7/8" | 1/2" | 2 1/2" | Stair Tread | D7-875 |
| 7/8" | 7/8" | 1/2" | 2 1/2" | Stair Tread | *D7-875LH |
| 7 1/2° Angle | |||||
| 1/4" | 5/16" | 1/4" | 2 1/2" | Incra™/OmniJig® 43639 | SC D75-25 |
| 8° Angle | |||||
| 1/4" | 1/4" | 1/4" | 2 1/2" | Leigh #50 | SC D8-250 |
| 1/4" | 1/4" | 8mm | 2 1/2" | Leigh #50-8mm shank | SC D8-250x8 |
| 5/16" | 3/8" | 1/4" | 2 1/4" | Leigh #60 | D8-312 |
| 5/16" | 3/8" | 8mm | 2 1/4" | Leigh #60-8mm shank | D8-312x8 |
| 3/8" | 1/2" | 1/4" | 2 3/8" | Leigh #70 | D8-375 |
| 3/8" | 1/2" | 8mm | 2 3/8" | Leigh #70-8mm shank | D8-375x8 |
| 7/16" | 5/8" | 1/4" | 2 3/8" | Leigh #75 | D8-437 |
| 7/16" | 5/8" | 8mm | 2 3/8" | Leigh #75-8mm shank | D8-437x8 |
| 1/2" | 13/16" | 1/4" | 2 3/4" | Leigh #80 | D8-500 |
| 1/2" | 13/16" | 8mm | 2 3/4" | Leigh #80-8mm shank | D8-500x8 |
| 11/16" | 1" | 1/2" | 3" | Leigh #90 | D8-687 |
| 13/16" | 1 1/4" | 1/2" | 3 1/4" | Leigh # 100 | D8-812 |
| 9° Angle | |||||
| 5/16" | 3/8" | 1/4" | 2 1/4" | Incra™ | D9-312 |
| 3/8" | 3/8" | 1/4" | 2" | Incra™ | D9-372 |
| 3/8" | 3/8" | 3/8" | 2" | D9-373 | |
| 3/8" | 3/8" | 1/2" | 2" | D9-375 | |
| 3/8" | 3/8" | 1/2" | 2" | *D9-375LH | |
| 3/8" | 3/8" | 1/2" | 2 1/2" | Incra™ | D9-376 |
| 3/8" | 3/8" | 1/2" | 2 1/2" | Incra™ | *D9-376LH |

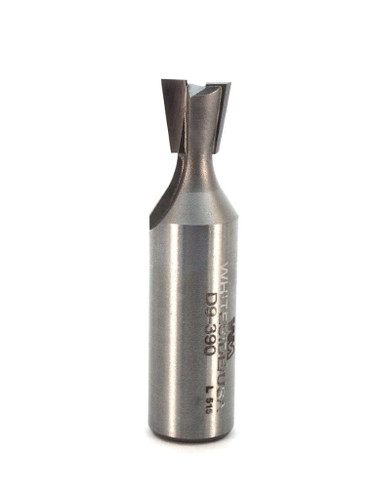

| 0.39 | 3/8" | 1/2" | 2" | D9-390 | |
| 0.39 | 3/8" | 1/2" | 2" | *D9-390LH | |
| 10° Angle | |||||
| 1/2" | 5/8" | 1/4" | 2 1/2" | Incra™/Leigh #101 | D10-50 |
| 1/2" | 5/8" | 8mm | 2 1/2" | Leigh #101-8mm shank | D10-50x8 |
| 1/2" | 5/8" | 1/2" | 2 5/8" | Incra™ | D10-55 |
| 14° Angle | |||||
| 3/8" | 3/8" | 1/4" | 2" | D14-375 | |
| 1/2" | 1/2" | 1/4" | 2" | Incra™/OmniJig® #43705 | D14-50 |
| 1/2" | 1/2" | 1/4" | 2 3/8" | Leigh #120 | D14-51 |
| 1/2" | 1/2" | 8mm | 2 3/8" | Leigh #120-8mm shank | D14-51x8 |
| 1/2" | 1/2" | 1/2" | 2 1/2" | Incra™/OmniJig® #43750 | D14-55 |
| 17/32" | 1/2" | 1/4" | 2" | Incra™ | D14-531 |
| 3/4" | 3/4" | 1/2" | 3" | OmniJig® #43774 | D14-75 |
| 1" | 7/8" | 1/2" | 2 1/2" | D14-100 | |
| 18° Angle | |||||
| 1/2" | 3/8" | 1/4" | 2 1/4" | Leigh #128 | D18-50 |
| 1/2" | 3/8" | 8mm | 2 1/4" | Leigh #128-8mm shank | D18-50x8 |
| Straight Bits | |||||
| 5/16" | 1" | 1/4" | 2 3/4" | Leigh #140 | 1020 |
| 5/16" | 1" | 8mm | 2 3/4" | Leigh #140-8mm shank | 1020x8 |
| 13/32" | 1" | 1/2" | 2 1/2" | P•C #43743PC | 1064A |
| * Left Hand |
| SC - Solid Carbide |
| All bits designated Incra™ are also compatible with the JoinTech™ system |
Keller Dovetail Bits |
| Whiteside Machine Company offers precision router bits to match Keller's unique dovetailing system. All tools listed below are supplied with the required ball bearings. |
| Large Diameter | Cutting Length | Shank Diameter | Overall Length | Keller Number | Part Number |
|---|---|---|---|---|---|
| 7° Angle Dovetail | |||||
| 11/32" | 3/8" | 1/4" | 2 1/4" | 1631 | K31 |
| 7/16" | 3/4" | 1/4" | 2 5/8" | 1633 | K33 |
| 5/8" | 1" | 3/8" | 2 5/8" | 2435 | K35 |
| Straight Bits | |||||
| 5/8" | 1/2" | 1/4" | 2 1/4" | 1641 | K41 |
| 5/8" | 3/4" | 1/4" | 2 1/2" | 1643/2443 | K43 |
| 7/8" | 1" | 3/8" | 2 5/8" | 2445 | 3015 |
| 9/16" | 3/4" | 1/4" | 2 1/4" | 1642 | *3032 |
*Box Joint Bit
-
