Hinge Boring Bits
Whiteside Boring Bits

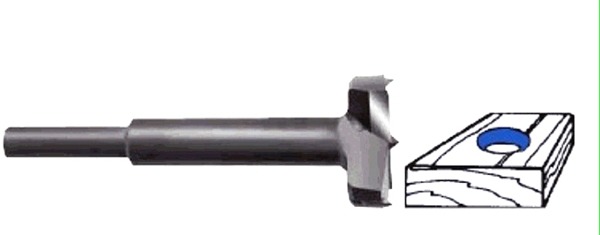

Whiteside Machine Company's Carbide Tipped Boring Bits feature a centering point and two carbide spurs to eliminate tear out. The 2 1/8" diameter bit is used mostly for door knob holes. The 35mm diameter bit is widely used for European style cabinet door hinges.
* Use in drill press or boring machine. NOT for use in routers.
| Cutting Diameter | Shank Diameter | Overall Length | Part Number |
|---|---|---|---|
| 2 1/8" | 1/2" | 6 1/8" | 6100 |
| 35mm | 3/8" | 2 3/8" | 6140 |

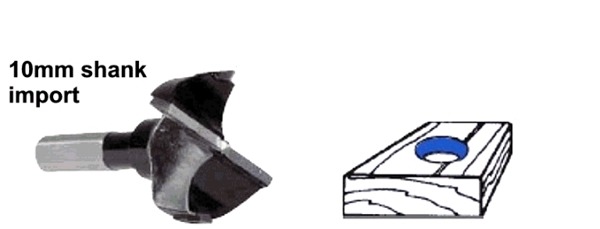

Hinge Boring Bits - Import - Whiteside
- Carbide Tipped
- 10 mm Shank
- RH and LH rotation
- Supplied with flat on shank
| Cutting Diameter (mm) | 57mm OAL Part # | 70mm OAL Part # |
|---|---|---|
| 15 | DH 15-57 (LH) | DH 15-70 (LH) |
| 15 | DH 15-57 (RH) | DH 15-70 (RH) |
| 20 | DH 20-57 (LH) | DH 20-70 (LH) |
| 20 | DH 20-57 (RH) | DH 20-70 (RH) |
| 25 | DH 25-57 (LH) | DH 25-70 (LH) |
| 25 | DH 25-57 (RH) | DH 25-70 (RH) |
| 30 | DH 30-57 (LH) | DH 30-70 (LH) |
| 30 | DH 30-57 (RH) | DH 30-70 (RH) |
| 35 | DH 35-57 (LH) | DH 35-70 (LH) |
| 35 | DH 35-57 (RH) | DH 35-70 (RH) |
-
Add to Cart The item has been addedWhiteside
RH Hinge Bit, 35mm Dia, 10mm Shank, 70mm OAL, Whiteside DH35-70Hinge Boring Bits - 10 Mm Shank - Whiteside DH 35-70 (RH); 35 mm Cutting Diameter, 70 mm Overall Len…
MSRP: $44.40$37.74 -
Add to Cart The item has been addedWhiteside
LH Hinge Bit, 35mm Dia, 10mm Shank, 70mm OAL, Whiteside DH35-70LHHinge Boring Bits - 10 Mm Shank - Whiteside DH 35-70 (LH); 35 mm Cutting Diameter, 57 mm Overall Len…
MSRP: $44.40$37.74 -
Add to Cart The item has been addedWhiteside
RH Hinge Bit, 35mm Dia, 10mm Shank, 57mm OAL, Whiteside DH35-57Hinge Boring Bits - 10 Mm Shank - Whiteside DH 35-57 (RH); 35 mm Cutting Diameter, 57 mm Overall Len…
MSRP: $40.45$34.38 -
Add to Cart The item has been addedWhiteside
LH Hinge Bit, 35mm Dia, 10mm Shank, 57mm OAL, Whiteside DH35-57LHHinge Boring Bits - 10 Mm Shank - Whiteside DH 35-57 (LH); 35 mm Cutting Diameter, 57 mm Overall Len…
MSRP: $40.45$34.38 -
Add to Cart The item has been addedWhiteside
RH Hinge Bit, 30mm Dia, 10mm Shank, 70mm OAL, Whiteside DH30-70Hinge Boring Bits - 10 Mm Shank - Whiteside DH 30-70 (RH); 30 mm Cutting Diameter, 70 mm Overall Len…
MSRP: $43.70$37.15 -
Add to Cart The item has been addedWhiteside
LH Hinge Bit, 30mm Dia, 10mm Shank, 70mm OAL, Whiteside DH30-70LHHinge Boring Bits - 10 Mm Shank - Whiteside DH 30-70 (LH); 30 mm Cutting Diameter, 57 mm Overall Len…
MSRP: $43.70$37.15 -
Add to Cart The item has been addedWhiteside
RH Hinge Bit, 30mm Dia, 10mm Shank, 57mm OAL, Whiteside DH30-57Hinge Boring Bits - 10 Mm Shank - Whiteside DH 30-57 (RH); 30 mm Cutting Diameter, 70 mm Overall Len…
MSRP: $39.80$33.83 -
Add to Cart The item has been addedWhiteside
LH Hinge Bit, 30mm Dia, 10mm Shank, 57mm OAL, Whiteside DH30-57LHHinge Boring Bits - 10 Mm Shank - Whiteside DH 30-57 (LH); 30 mm Cutting Diameter, 57 mm Overall Len…
MSRP: $39.80$33.83 -
Add to Cart The item has been addedWhiteside
RH Hinge Bit, 25mm Dia, 10mm Shank, 70mm OAL, Whiteside DH25-70Hinge Boring Bits - 10 Mm Shank - Whiteside DH 25-70 (RH); 25 mm Cutting Diameter, 70 mm Overall Len…
MSRP: $40.14$34.12 -
Add to Cart The item has been addedWhiteside
LH Hinge Bit, 25mm Dia, 10mm Shank, 70mm OAL, Whiteside DH25-70LHHinge Boring Bits - 10 Mm Shank - Whiteside DH 25-70 (LH); 25 mm Cutting Diameter, 57 mm Overall Len…
MSRP: $40.14$34.12 -
Add to Cart The item has been addedWhiteside
RH Hinge Bit, 25mm Dia, 10mm Shank, 57mm OAL, Whiteside DH25-57Hinge Boring Bits - 10 Mm Shank - Whiteside DH 25-57 (RH); 25 mm Cutting Diameter, 70 mm Overall Len…
MSRP: $38.97$33.12 -
Add to Cart The item has been addedWhiteside
LH Hinge Bit, 25mm Dia, 10mm Shank, 57mm OAL, Whiteside DH25-57LHHinge Boring Bits - 10 Mm Shank - Whiteside DH 25-57 (LH); 25 mm Cutting Diameter, 57 mm Overall Len…
MSRP: $38.97$33.12
