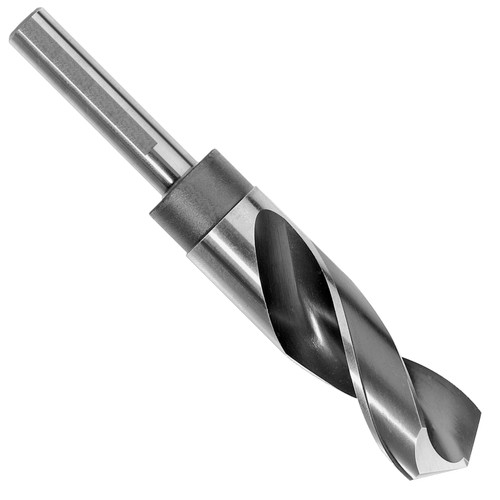

Reduced Shank - .5" Heavy Duty

Triumph Heavy Duty Reduced Shank Drill Bits are made from premium high speed steel to work better and drill cleaner even under high heat. Black oxide flute resist scratching and corrosion. 1/2 inch round shank.

		Point:	118° Point, 1/2” Round Shank
		Material:	Premium High Speed Steel
		Coating/Finish:	Black Oxide Flutes
		Other:	Silver & Deming

Size	Decimal Equivalent	Flute Length	Overall Length	Pkg Qty	Part #
33/64	0.5156	3	6	1	091733
33/64	0.5156	3	6	1	092833
17/32	0.5312	3	6	1	091734
17/32	0.5312	3	6	1	092834
35/64	0.5469	3	6	1	091735
35/64	0.5469	3	6	1	092835
9/16	0.5625	3	6	1	091736
9/16	0.5625	3	6	1	092836
37/64	0.5781	3	6	1	091737
37/64	0.5781	3	6	1	092837
19/32	0.5938	3	6	1	091738
19/32	0.5938	3	6	1	092838
39/64	0.6094	3	6	1	091739
39/64	0.6094	3	6	1	092839
5/8	0.625	3	6	1	091740
5/8	0.625	3	6	1	092840
41/64	0.6406	3	6	1	091741
41/64	0.6406	3	6	1	092841
21/32	0.6562	3	6	1	091742
21/32	0.6562	3	6	1	092842
43/64	0.6719	3	6	1	091743
43/64	0.6719	3	6	1	092843
11/16	0.6875	3	6	1	091744
11/16	0.6875	3	6	1	092844
45/64	0.7031	3	6	1	091745
45/64	0.7031	3	6	1	092845
23/32	0.7188	3	6	1	091746
23/32	0.7188	3	6	1	092846
47/64	0.7344	3	6	1	091747
47/64	0.7344	3	6	1	092847
3/4	0.75	3	6	1	091748
3/4	0.75	3	6	1	092848
49/64	0.7656	3	6	1	091749
49/64	0.7656	3	6	1	092849
25/32	0.7812	3	6	1	091750
25/32	0.7812	3	6	1	092850
51/64	0.7969	3	6	1	091751
51/64	0.7969	3	6	1	092851
13/16	0.8125	3	6	1	091752
13/16	0.8125	3	6	1	092852
53/64	0.8281	3	6	1	091753
53/64	0.8281	3	6	1	092853
27/32	0.8438	3	6	1	091754
27/32	0.8438	3	6	1	092854
55/64	0.8594	3	6	1	091755
55/64	0.8594	3	6	1	092855
7/8	0.875	3	6	1	091756
7/8	0.875	3	6	1	092856
57/64	0.8906	3	6	1	091757
57/64	0.8906	3	6	1	092857
29/32	0.9062	3	6	1	091758
29/32	0.9062	3	6	1	092858
59/64	0.9219	3	6	1	091759
59/64	0.9219	3	6	1	092859
15/16	0.9375	3	6	1	091760
15/16	0.9375	3	6	1	092860
61/64	0.9531	3	6	1	091761
61/64	0.9531	3	6	1	092861
31/32	0.9688	3	6	1	091762
31/32	0.9688	3	6	1	092862
63/64	0.9844	3	6	1	091763
63/64	0.9844	3	6	1	092863
1"	1	3	6	1	091764
1"	1	3	6	1	092864
1-1/64	1.0156	3	6	1	091765
1-1/32	1.0312	3	6	1	091766
1-1/32	1.0312	3	6	1	092866
1-3/64	1.0469	3	6	1	091767
1-1/16	1.0625	3	6	1	091768
1-1/16	1.0625	3	6	1	092868
1-3/32	1.0938	3	6	1	091770
1-3/32	1.0938	3	6	1	092870
1-1/8	1.125	3	6	1	091772
1-1/8	1.125	3	6	1	092872
1-5/32	1.1562	3	6	1	091774
1-5/32	1.1562	3	6	1	092874
1-3/16	1.1875	3	6	1	091776
1-3/16	1.1875	3	6	1	092876
1-7/32	1.2188	3	6	1	091778
1-7/32	1.2188	3	6	1	092878
1-1/4	1.25	3	6	1	091780
1-1/4	1.25	3	6	1	092880
1-9/32	1.2812	3	6	1	091782
1-5/16	1.3125	3	6	1	091784
1-5/16	1.3125	3	6	1	092884
1-3/8	1.375	3	6	1	091788
1-3/8	1.375	3	6	1	092888
1-7/16	1.4375	3	6	1	091792
1-7/16	1.4375	3	6	1	092892
1-1/2	1.5	3	6	1	091796
1-1/2	1.5	3	6	1	092896
