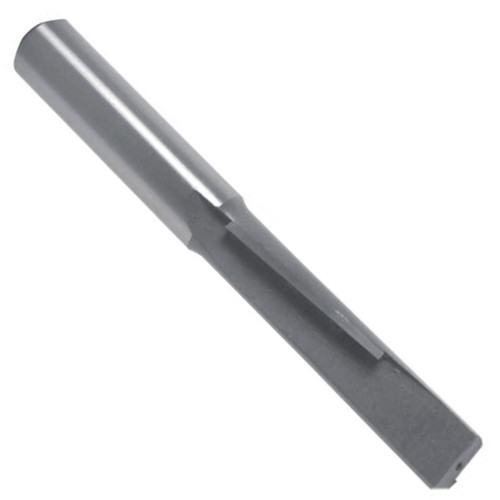

Stagger tooth router bits combine the high chip ejection of a single flute bit with the balance of a 2-flute design. Available in a compression (opposite shear) configuration for two sided melamine and laminates as well as regular straight flutes.
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
---|---|---|---|---|---|
1/4" | 1-1/4" | 1/4" | 3-1/2" | Whiteside | 1200 |
3/8" | 1-1/2" | 1/2" | 3-1/2" | Southeast | SE1201 |
3/8" | 1-1/2" | 1/2" | 3-1/8" | Whiteside | 1201 |
1/2" | 1-1/2" | 1/2" | 3-1/2" | Southeast Tool | SE1202 |
1/2" | 1-1/2" | 1/2" | 3-1/8" | Whiteside | 1202 |
1/2" | 1-1/2" | 1/2" | 3-1/2" | Whiteside | 1250 |
1/2" | 2" | 1/2" | 4-1/4" | Southeast Tool | SE1203 |
1/2" | 2" | 1/2" | 4" | Southeast Tool | SE1252 |
1/2" | 2" | 1/2" | 4" | Whiteside | 1252 |
1/2" | 2-1/8" | 1/2" | 4" | Whiteside | 1203 |
1/2" | 2-1/2" | 1/2" | 5-1/2" | Southeast Tool | SE1203-212 |
1/2" | 2-5/8" | 1/2" | 5-1/2" | Southeast Tool | SE1256 |
1/2" | 2-5/8" | 1/2" | 5-1/2" | Whiteside | 1205 |
3/4" | 2" | 3/4" | 4" | Southeast Tool | SE1270 |
3/4" | 2" | 3/4" | 4" | Whiteside | 1270 |
3/4" | 2" | 5/8" | 5" | Southeast Tool | SE1261 |
3/4" | 2" | 5/8" | 4" | Whiteside | 1260 |
