Dovetail Router Bits
 |
Dovetail joinery is the hallmark of fine woodworking and exemplifies quality, craftsmanship and attention to detail. We carry every dovetail router bit imaginable including upcut, downcut and straight flute for both hand-held woodworking routers and automated dovetailing machines in both right and left rotations. New to dovetailing? You can be creating beautiful dovetail joints just like this in no time with the incredible Incra LS Positioner System. Available as an add-on for your existing table saw or dedicated router table we've got the full line including complete Router Table Sets. |
3 Deg Angle Dovetail Bit
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 7/8" | 5/8" | 1/2" | 2-1/2" | Southeast Tool | SE1601 |
7 Deg Angle Dovetail Bit
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Rotation |
Manufacturer |
Part # |
|---|---|---|---|---|---|---|
| 17/32" | 3/4" | 1/2" | 2-1/2" | Right | Whiteside | D7-531 |
| 5/8" | 7/8" | 1/2" | 2-5/8" | Right | Whiteside | D7-625 |
| 5/8" | 7/8" | 1/2" | 2-5/8" | Right | Southeast Tool | SE1625 |
| 3/4" | 7/8" | 1/2" | 2-5/8" | Right | Whiteside | D7-750 |
| 3/4" | 7/8" | 1/2" | 2-3/4" | Right | Southeast Tool | SE1635 |
| 3/4" | 7/8" | 1/2" | 2-3/4" | Left | Southeast Tool | SE1635LH |
| 7/8" | 7/8" | 1/2" | 2-1/2" | Right | Whiteside | D7-875 |
| 7/8" | 7/8" | 1/2" | 2-1/2" | Left | Whiteside | D7-875LH |
| 7/8" | 7/8" | 1/2" | 2-3/4" | Right | Southeast Tool | SE1645 |
| 7/8" | 7/8" | 1/2" | 2-3/4" | Left | Southeast Tool | SE1645LH |
Keller 7 Deg Angle Dovetail Bit
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Manufacturer |
Part # |
|---|---|---|---|---|
| 11/32" | 3/8" | 1/4" | Whiteside | K31 |
| 7/16" | 3/4" | 1/4" | Whiteside | K33 |
| 5/8" | 1" | 3/8" | Whiteside | K35 |
7-1/2 Deg Angle Dovetail Bit
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 1/4" | 5/16" | 1/4" | 2-1/2" | Whiteside | D75-25 |
| 1/4" | 5/16" | 1/4" | 2" | Southeast Tool | SCDT7525 |
8 Deg Angle Dovetail Bit
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 1/4" | 1/4" | 1/4" | 2-1/2" | Whiteside | D8-250 |
| 1/4" | 1/4" | 8mm | 2-1/2" | Whiteside | D8-250x8 |
| 5/16" | 3/8" | 1/4" | 2-1/4" | Southeast Tool | SE1661 |
| 5/16" | 3/8" | 1/4" | 2-1/4" | Whiteside | D8-312 |
| 5/16" | 3/8" | 8mm | 2-1/4" | Whiteside | D8-312x8 |
| 3/8" | 1/2" | 1/4" | 2-3/8" | Southeast Tool | SE1662 |
| 3/8" | 1/2" | 1/4" | 2-3/8" | Whiteside | D8-375 |
| 3/8" | 1/2" | 8mm | 2-3/8" | Whiteside | D8-375x8 |
| 7/16" | 5/8" | 1/4" | 2-3/8" | Southeast Tool | SE1663 |
| 7/16" | 5/8" | 1/4" | 2-3/8" | Whiteside | D8-437 |
| 7/16" | 5/8" | 8mm | 2-3/8" | Whiteside | D8-437x8 |
| 1/2" | 13/16" | 1/4" | 2-3/4" | Southeast Tool | SE1664 |
| 1/2" | 13/16" | 1/4" | 2-3/4" | Whiteside | D8-500 |
| 11/16" | 1" | 1/2" | 3" | Whiteside | D8-687 |
| 11/16" | 1" | 1/2" | 3" | Southeast Tool | SE1666 |
| 13/16" | 1-1/4" | 1/2" | 3-1/4" | Whiteside | D8-812 |
| 13/16" | 1-1/4" | 1/2" | 3-1/4" | Southeast Tool | SE1668 |
9 Deg Angle Dovetail Bit
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Rotation |
Manufacturer |
Part # |
|---|---|---|---|---|---|---|
| 5/16" | 3/8" | 1/4" | 2-1/4" | Right | Whiteside | D9-312 |
| 3/8" | 3/8" | 1/4" | 2" | Right | Whiteside | D9-372 |
| 3/8" | 3/8" | 1/4" | 2-1/4" | Right | Southeast Tool | SE1605 |
| 3/8" | 3/8" | 3/8" | 2" | Right | Whiteside | D9-373 |
| 3/8" | 3/8" | 3/8" | 2" | Right | Southeast Tool | SE1613 |
| 3/8" | 3/8" | 1/2" | 2" | Right | Whiteside | D9-375 |
| 3/8" | 3/8" | 1/2" | 2" | Left | Whiteside | D9-375LH |
| 3/8" | 3/8" | 1/2" | 2-1/2" | Right | Whiteside | D9-376 |
| 3/8" | 3/8" | 1/2" | 2-1/2" | Left | Whiteside | D9-376LH |
| 3/8" | 3/8" | 1/2" | 2-1/2" | Right | Southeast Tool | SE1615 |
| 3/8" | 3/8" | 1/2" | 2-1/2" | Left | Southeast Tool | SE1615LH |
| .39" | 3/8" | 1/2" | 2" | Right | Whiteside | D9-390 |
| .39" | 3/8" | 1/2" | 2" | Left | Whiteside | D9-390LH |
| .39" | 3/8" | 1/2" | 2" | Right | Southeast Tool | SE1680 |
| .39" | 3/8" | 1/2" | 2" | Left | Southeast Tool | SE1680LH |
9 Degree Dovetail for Dodds Machine
|
Cutting Diameter |
Shank Diameter |
Overall Length |
Rotation |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| .550" | 5/16-24 Threaded Shank | 2" | Left | Southeast Tool | SE1690L |
| .550" | 5/16-24 Threaded Shank | 2" | Right | Southeast Tool | SE1690R |
10 Degree Dovetail Bits
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 1/2" | 5/8" | 1/4" | 2-1/2" | Southeast Tool | SE1672 |
| 1/2" | 5/8" | 1/4" | 2-1/2" | Whiteside | D10-50 |
| 1/2" | 5/8" | 8mm | 2-1/2" | Whiteside | D10-50X8 |
| 1/2" | 5/8" | 1/2" | 2-5/8" | Soutehast Tool | SE1674 |
14 Degree Dovetail Bits
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 3/8" | 3/8" | 1/4" | 2" | Whiteside | D14-375 |
| 3/8" | 3/8" | 1/4" | 2" | Southeast Tool | SE1611 |
| 1/2" | 1/2" | 1/4" | 2" | Southeast Tool | SE1610 |
| 1/2" | 1/2" | 1/4" | 2-3/8" | Southeast Tool | SE1622 |
| 1/2" | 1/2" | 1/4" | 2" | Whiteside | D14-50 |
| 1/2" | 1/2" | 1/4" | 2-3/8" | Whiteside | D14-51 |
| 1/2" | 1/2" | 8mm | 2-3/8" | Whiteside | D14-51X8 |
| 1/2" | 1/2" | 1/2" | 2-1/2" | Southeast Tool | SE1620 |
| 1/2" | 1/2" | 1/2" | 2-1/2" | Whiteside | D14-55 |
| 17/32" | 1/2" | 1/4" | 2" | Whiteside | D14-531 |
| 3/4" | 3/4" | 1/2" | 3" | Southeast Tool | SE1630 |
| 3/4" | 3/4" | 1/2" | 3" | Whiteside | D14-75 |
| 1" | 7/8" | 1/2" | 2-1/2" | Southeast Tool | SE1640 |
| 1" | 7/8" | 1/2" | 2-1/2" | Whiteside | D14-100 |
18 Degree Dovetail Bits
|
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Manufacturer |
Part # |
|---|---|---|---|---|---|
| 1/2" | 3/8" | 1/4" | 2-1/4" | Southeast Tool | SE1680 |
| 1/2" | 3/8" | 1/4" | 2-1/4" | Whiteside | D18-50 |
| 1/2" | 3/8" | 8mm | 2-1/4" | Whiteside | D18-50X8 |
Downcut Dovetail Bits
|
Angle |
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Rotation |
Manufacturer |
Part # |
|---|---|---|---|---|---|---|---|
| 10deg | 14mm | .394" | 14mm | 60mm | Right | Vortex | 2660 |
| 10deg | 14mm | .394" | 14mm | 60mm | Left | Vortex | 2660L |
| 10deg | 14mm | .622" | 14mm | 60mm | Right | Vortex | 2670 |
| 10deg | 14mm | .622" | 14mm | 60mm | Left | Vortex | 2670L |
Upcut Dovetail Bits
|
Angle |
Cutting Diameter |
Cutting Length |
Shank Diameter |
Overall Length |
Rotation |
Manufacturer |
Part # |
|---|---|---|---|---|---|---|---|
| 10deg | 14mm | .354" | 14mm | 60mm | Right | Vortex | 2620 |
| 10deg | 14mm | .354" | 14mm | 60mm | Left | Vortex | 2620L |
| 10deg | 14mm | .394" | 14mm | 60mm | Right | Vortex | 2630 |
| 10deg | 14mm | .394" | 14mm | 60mm | Left | Vortex | 2630L |
| 10deg | 14mm | .622" | 14mm | 60mm | Right | Vortex | 2640 |
| 10deg | 14mm | .622" | 14mm | 60mm | Left | Vortex | 2640L |
| 10deg | 14mm | .394" | 12mm | 60mm | Left | Vortex | 2680 |
-
Southeast Tool
Dovetail Router Bit, 8deg Angle, 1/2 Dia, 1/4 Shank, Southeast Tool SE1664Dovetail Router Bits - 8deg Angle, Carbide Tipped - Southeast Tool SE1664; 1/2 Cutting diameter, 13/…
MSRP: $23.16$20.06 -
Southeast Tool
Dovetail Router Bit, 8deg Angle, 7/16 Dia, 1/4 Shank, Southeast Tool SE1663Dovetail Router Bits - 8deg Angle, Carbide Tipped - Southeast Tool SE1663; 7/16 Cutting diameter, 5/…
MSRP: $23.89$20.69 -
Southeast Tool
Dovetail Router Bit, 8deg Angle, 3/8 Dia, 1/4 Shank, Southeast Tool SE1662Dovetail Router Bits - 8deg Angle, Carbide Tipped - Southeast Tool SE1662; 3/8 Cutting diameter, 1/2…
MSRP: $21.08$18.26 -
Southeast Tool
Dovetail Router Bit, 8deg Angle, 5/16 Dia, 1/4 Shank, Southeast Tool SE1661Dovetail Router Bits - 8deg Angle, Carbide Tipped - Southeast Tool SE1661; 5/16 Cutting diameter, 3/…
MSRP: $22.46$19.46 -
Southeast Tool
LH Dovetail Router Bit, 7deg Angle, 7/8 Dia, 1/2 Shank, Southeast Tool SE1645LHDovetail Router Bits - 7deg Angle, Carbide Tipped - Southeast Tool SE1645LH; 7/8 Cutting diameter, 7…
MSRP: $44.94$38.93 -
Southeast Tool
Dovetail Router Bit, 7deg Angle, 7/8 Dia, 1/2 Shank, Southeast Tool SE1645Dovetail Router Bits - 7deg Angle, Carbide Tipped - Southeast Tool SE1645; 7/8 Cutting diameter, 7/8…
MSRP: $39.32$34.07 -
Southeast Tool
Dovetail Router Bit, 14deg Angle, 1" Dia, 1/2 Shank, Southeast Tool SE1640Dovetail Router Bits - 14deg Angle, Carbide Tipped - Southeast Tool SE1640; 1 Cutting diameter, 7/8 …
MSRP: $36.60$31.70 -
Southeast Tool
LH Dovetail Router Bit, 7deg Angle, 3/4 Dia, 1/2 Shank, Southeast Tool SE1635LHDovetail Router Bits - 7deg Angle, Carbide Tipped - Southeast Tool SE1635LH; 3/4 Cutting diameter, 7…
MSRP: $46.80$40.55 -
Southeast Tool
Dovetail Router Bit, 7deg Angle, 3/4 Dia, 1/2 Shank, Southeast Tool SE1635Dovetail Router Bits - 7deg Angle, Carbide Tipped - Southeast Tool SE1635; 3/4 Cutting diameter, 7/8…
MSRP: $31.19$27.01 -
Southeast Tool
Dovetail Router Bit, 14deg Angle, 3/4 Dia, 1/2 Shank, Southeast Tool SE1630Dovetail Router Bits - 14deg Angle, Carbide Tipped - Southeast Tool SE1630; 3/4 Cutting diameter, 3/…
MSRP: $25.27$21.89 -
Southeast Tool
Dovetail Router Bit, 7deg Angle, 5/8 Dia, 1/2 Shank, Southeast Tool SE1625Dovetail Router Bits - 7deg Angle, Carbide Tipped - Southeast Tool SE1625; 5/8 Cutting diameter, 7/8…
MSRP: $25.01$21.67 -
Southeast Tool
Dovetail Router Bit, 14deg Angle, 1/2 Dia, 1/4 Shank, Southeast Tool SE1622Dovetail Router Bits - 14deg Angle, Carbide Tipped - Southeast Tool SE1622; 1/2 Cutting diameter, 1/…
MSRP: $24.01$20.80 -
Southeast Tool
Dovetail Router Bit, 14deg Angle, 1/2 Dia, 1/2 Shank, Southeast Tool SE1620Dovetail Router Bits - 14deg Angle, Carbide Tipped - Southeast Tool SE1620; 1/2 Cutting diameter, 1/…
MSRP: $24.11$20.89 -
Southeast Tool
LH Dovetail Router Bit, 9deg Angle, .390 Dia, 1/2 Shank, Southeast Tool SE1618LHDovetail Router Bits - 9deg Angle, Carbide Tipped - Southeast Tool SE1618LH; .390 Cutting diameter, …
MSRP: $27.39$23.74 -
Southeast Tool
Dovetail Router Bit, 9deg Angle, .390 Dia, 1/2 Shank, Southeast Tool SE1618Dovetail Router Bits - 9deg Angle, Carbide Tipped - Southeast Tool SE1618; .390 Cutting diameter, 3/…
MSRP: $24.59$21.31 -
Southeast Tool
LH Dovetail Router Bit, 9deg Angle, 3/8 Dia, 1/2 Shank, Southeast Tool SE1615LHDovetail Router Bits - 9deg Angle, Carbide Tipped - Southeast Tool SE1615LH; 3/8 Cutting diameter, 3…
MSRP: $26.40$22.87 -
Southeast Tool
Dovetail Router Bit, 9deg Angle, 3/8 Dia, 1/2 Shank, Southeast Tool SE1615Dovetail Router Bits - 9deg Angle, Carbide Tipped - Southeast Tool SE1615; 3/8 Cutting diameter, 3/8…
MSRP: $23.59$20.44 -
Southeast Tool
Dovetail Router Bit, 9deg Angle, 3/8 Dia, 3/8 Shank, Southeast Tool SE1613Dovetail Router Bits - 9deg Angle, Carbide Tipped - Southeast Tool SE1613; 3/8 Cutting diameter, 3/8…
MSRP: $24.59$21.31 -
Southeast Tool

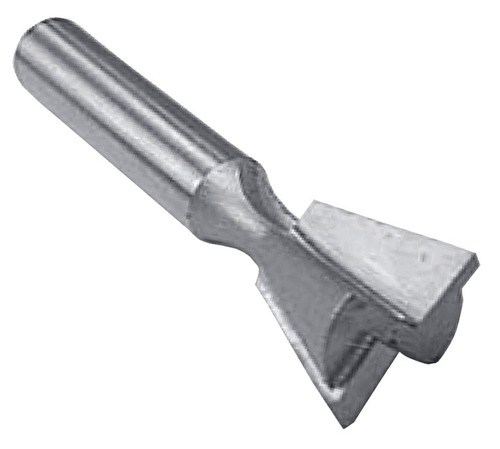

Dovetail Router Bit, 14deg Angle, 3/8 Dia, 1/4 Shank, Southeast Tool SE1611Dovetail Router Bits - 14deg Angle, Carbide Tipped - Southeast Tool SE1611; 3/8 Cutting diameter, 3/…
MSRP: $24.59$21.31 -
Southeast Tool
Dovetail Router Bit, 14deg Angle, 1/2 Dia, 1/4 Shank, Southeast Tool SE1610Dovetail Router Bits - 14deg Angle, Carbide Tipped - Southeast Tool SE1610; 1/2 Cutting diameter, 1/…
MSRP: $22.92$19.86
