Machine Coolant Hose Systems

Keep your machine coolant headed in the right direction with flexible coolant hose and coolant nozzles by Swiss made MaxiFlex



Made in Switzerland



Product Features:

  • Flexible coolant hose system for cooling and cleaning in sawing, drilling, turning, milling, grinding and EDM applications 1/4” or 1/2”
  • Dimensionally stable through tight fitting components. Will not alter under pressure or machine vibrations
  • Resistant to chemicals and solvents, non-conductive
  • Compatible with competitive systems
  • Coolant nozzles are ideally suited for positioning and distributing fluids & air
 Hose
Size
DescriptionPart #

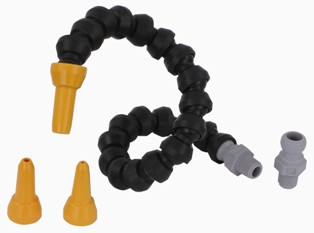

wiha-34490.jpg 1/4" Maxiflex Starter Kit 2 Threaded Connectors R 1/4" & R 1/8" 3 Cylindrical Nozzles 1/16", 1/8", 7/32" 22 Segments - 11" 34490
wiha-34401.jpg 1/4" Bulk Segments 1/4" - 28 pc. segments 34401
wiha-34000.jpg 1/4" Segments 1/4" - 22 segments 11" 34402
wiha-34404.jpg 1/4" 1/16" Nozzle 1/4" - Nozzle Ø 1.6mm - 1/16" 34404
wiha-34406.jpg 1/4" 1/8" Nozzle 1/4" - Nozzle Ø 3.2mm - 1/8" 34406
wiha-34408.jpg 1/4" 7/32" Nozzle 1/4" - Nozzle Ø 5.6mm - 7/32" 34408
wiha-34410.jpg 1/4" Straight Flat Nozzle 1/4" - Flat Nozzle 24mm wide. 34410
wiha-34412.jpg 1/4" Straight Multi Hole Nozzle 1/4" - Multi Hole Nozzle. 34412
wiha-34414.jpg 1/4" 1/16" Nozzle 90deg Bend 1/4" - Angular Nozzle Ø 1.6mm-1/16" 34414
wiha-34416.jpg 1/4" 1/8" Nozzle 90deg Bend 1/4" - Angular Nozzle Ø 3.2mm-1/8" 34416
wiha-34418.jpg 1/4" 7/32" Nozzle 90deg Bend 1/4" - Angular Nozzle Ø 5.6mm-7/32" 34418
wiha-34420.jpg 1/4" Multi Hole Spray Bar 1/4" - Right Angle Multi Hole Nozzle. 34420
wiha-34432.jpg 1/4" Adapter for LcLn-1/4" 34432
wiha-34434.jpg 1/4" Male Double End Segment 34434
wiha-34436.jpg 1/4" Female Double End Segment 34436
wiha-34426.jpg 1/4" BSPT Threaded Connector - 1/8" 34422
1/4" BSPT Threaded Connector - 1/4" 34424
1/4" NPT Threaded Connector - 1/8" 34426
1/4" NPT Threaded Connector - 1/4" 34428
wiha-34430.jpg 1/4" 1/4" Y-Junction 34430

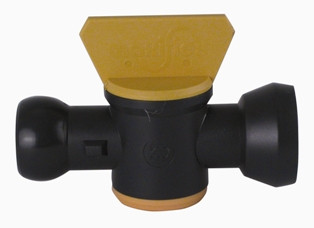

wiha-34438.jpg 1/4" In Line Valve 34438
wiha-34440.jpg 1/4" Segment Clip 34440
wiha-34442.jpg 1/4" Separation Wedge 34442

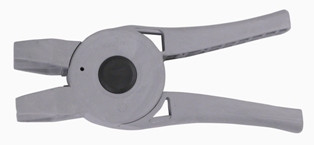

wiha-34444.jpg 1/4" Assembly Pliers 34444
wiha-34090.jpg 1/2" Maxiflex Starter Kit 2 Threaded Connectors R 1/2" & 3/8" NPT Straight, 90deg Bend & Multi Hole Nozzles 12 Segments - 12.6" 34090
wiha-34401.jpg 1/2" Bulk Segments 1/2" - 28 pc. segments. 34001
wiha-34000.jpg 1/2" Segments 1/2" - Pack with 12 segments 11" 34000
wiha-34046.jpg 1/2" 1/2" Pipe Segment. 34046
wiha-34048.jpg 1/2" 1/2" Segment Clamp Including Screws. 34048
wiha-34002.jpg 1/2" 1/2" Straight Nozzle 1/2" - Nozzles Ø 10mm. 34002
wiha-34008.jpg 1/2" Straight Multi Hole Nozzle 1/2"-Multi Hole Nozzle. 34008
wiha-34004.jpg 1/2" Straight Flat Nozzle 1/2" - Flat Nozzle 30mm wide. 34004
wiha-34006.jpg 1/2" Straight Flat Nozzle 1/2" - Flat Nozzle 60mm wide. 34006
wiha-34012.jpg 1/2" Nozzle 90deg Bend 1/2" - Angular Nozzle Ø 7mm. 34012
wiha-34010.jpg 1/2" Nozzle 90deg Bend 1/2" - Angular Nozzle Ø 10mm. 34010
wiha-34014.jpg 1/2" Multi Hole Angular Nozzle 1/2" Right Angle Side Spray Nozzle. 34014
wiha-34028.jpg 1/2" Reducer Adapter 1/2" to 1/4" 34028
wiha-34030.jpg 1/2" Adapter - 1/2" LcLn 34030
wiha-34034.jpg 1/2" Female Double End Segment 34034
wiha-34036.jpg 1/2" Male Double End Segment 34036
wiha-34426.jpg 1/2" BSPT Threaded Connector - 1/8" 34016
1/2" BSPT Threaded Connector - 1/4" 34018
1/2" NPT Threaded Connector - 1/8" 34020
1/2" NPT Threaded Connector - 1/4" 34022
wiha-34024.jpg 1/2" Y-Junction 34024
wiha-34026.jpg 1/2" Y Reducer Junction 1/2"-1/4" 34026
wiha-34038.jpg 1/2" In Line Valve 34038
wiha-34440.jpg 1/2" Segment Clip 34040
wiha-34442.jpg 1/2" Separation Wedge 34042
wiha-34444.jpg 1/2" Assembly Pliers 34044
