Welding Table Clamps

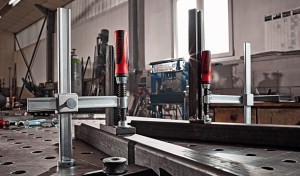

Bessey Welding Table Clamps feature a heavy-duty custom design and 3 handle variations and variable throat depth variations. The profile rails and sliding arms are tempered for strong and durable clamping. Each Bessey Welding Table clamp features a trapazoidal threaded spindle and toolfree pressure plate replacement. Choose from various designs to meet tough or difficult welding applications.
Features:
- Bessey's TWV28 series has an adjustable throat depth and 3 handle options
- Bessey's TW28 series has 3 handle options and 2 throat depth options.
- Bessey's TWM28 serires has a heat resistant pressure plate with a sintered steel insert that can pivot up to 35 degres
- The TW28GRS gripping arm features a spindle located outside of the working area
Welding Table Clamp- Series TWV28
Precise individual clamping with variable height and throat depth adjustment. Designed for 28mm Matrix welding tables. Choose from an ergonomic 2-component plastic handle, T-Bar handle, or lever handle with ratcheting mechanism for controlled, fast and vibraton-proof clamping.
| Clamping Capacity | Throat Depth | Handle Style | Rail Profile | Clamping Force | Approx. Weight | SKU |
|---|---|---|---|---|---|---|
| 12" | 1 9/16" - 6 7/8" | Composite | 1 3/32" - 7/16" | 5500 lbs | 4.89 lbs | TWV28-30-17-2K |
| 12" | 1 9/16" - 6 7/8" | T-Bar | 1 3/32" - 7/16" | 5500 lbs | 4.65 lbs | TWV28-30-17K |
| 12" | 4 5/16" - 6 7/8" | Lever | 1 3/32" - 7/16" | 5500 lbs | 5.47 lbs | TWV28-30-17H |
*Note: Clamping force is calculated at a height of 2-3 Inches on a solid all steel welding table platform.
Welding Table Clamp- Series TW28
Precise, individual clamping with variable height and fixed throat depth. Designed for 28mm matrix welding tables. Features tempered profile rail and drop forged sliding arm for strength where it is needed most.
| Clamping Capacity | Throat Depth | Handle Style | Rail Profile | Clamping Force | Approx. Weight | SKU |
|---|---|---|---|---|---|---|
| 12" | 4 3/4" | Composite | 1 3/32" - 7/16" | 4500 lbs | 3.7 lbs | TW28-30-12-2K |
| 12" | 5 1/2" | Composite | 1 3/32" - 7/16" | 5000 lbs | 3.75 lbs | TW28-30-14-2K |
| 12" | 4 3/4" | T-Bar | 1 3/32" - 7/16" | 4500 lbs | 3.6 lbs | TW28-30-12K |
| 12" | 5 1/2" | T-Bar | 1 3/32" - 7/16" | 5000 lbs | 3.65 lbs | TW28-30-14K |
| 12" | 4 3/4" | Lever | 1 3/32" - 7/16" | 4500 lbs | 4.5 lbs | TW28-30-12H |
| 12" | 5 1/2" | Lever | 1 3/32" - 7/16" | 5000 lbs | 4.6 lbs | TW28-30-14H |
*Note: Clamping force is calculated at a height of 2-3 Inches on a solid all steel welding table platform.
Welding Table Clamp- Series TWM28
| Clamping Capacity | Throat Depth | Handle Style | Rail Profile | Clamping Force | Approx. Weight | SKU |
|---|---|---|---|---|---|---|
| 11 13/16" | 4 11/16" | T-Bar | 1 3/32" - 7/16" | 6500 lbs | 3.92 lbs | TWM28-30-12 |

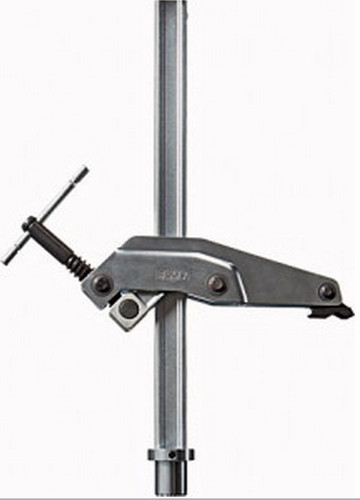

Welding Table Clamp- Series TW28GRS
| Clamping Capacity | Throat Depth | Handle Style | Rail Profile | Clamping Force | Approx. Weight | SKU |
|---|---|---|---|---|---|---|
| 11 13/16" | 4 11/16" | T-Bar | 1 3/32" - 7/16" | 5000 lbs | 4.92 lbs | TW28GRS30-12 |
-
