CSM Saw Terms and Ordering Information


TO ORDER A STANDARD SAW:

Specify 1) Diameter, 2) Eye Size, 3) Number of teeth, 4) Catalogue style and number if available.  State side clearance, dish angle, and back angle.

EXAMPLE: Sides .035" x 2o X 3o

TO ORDER A SPECIAL SAW:

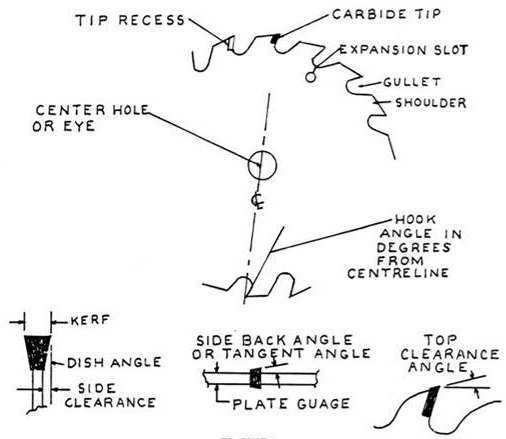

Specify 1) Diameter, 2) Number of Teeth, 3) Eye Size,  4) Plate Gauge, 5) Kerf Width, 6) Hook Angle,  7} Side Angles, 8) Number of Expansion Slots,  9) Pin Holes or Bolt Holes, with the size of hole and the bolt circle they are to be drilled on, and 10) The side of the saw countersunk holes are on.  (Furnish a rubbing of holes and tooth style if possible.)
