Square End Mills

Choose from a great selection of Quality Caribde End Mills in uncoated, TiN coated, HTC Progressive coated or HTC Hard Coated.  A huge selection of Square End Mills to meet your specific cutting needs.  A great selection of 2 flute, 3 flute or 4 flute Square End Mills in standard length.  See coating chart to select the right coating for your application.

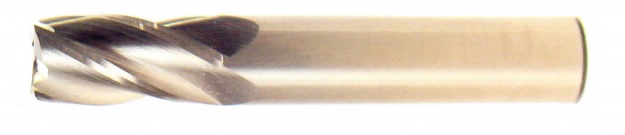

Solid Square End Mills, Standard Length- Uncoated


Cutting DiameterFlute LengthOverall Length2 Flute Part#3 Flute Part#4 Flute Part#
1/8" Shank
1/64" 1/16" 1-1/2" 873-120-2015 873-120-3015 873-120-4015
1/32" 3/32" 1-1/2" 873-120-2031 873-120-3031 873-120-4031
3/64" 1/8" 1-1/2" 873-120-2046 873-120-3046 873-120-4046
1/16" 3/16" 1-1/2" 873-120-2062 873-120-3062 873-120-4062
5/64" 1/4" 1-1/2" 873-120-2078 873-120-3078 873-120-4078
3/32" 3/8" 1-1/2" 873-120-2093 873-120-3093 873-120-4093
7/64" 3/8" 1-1/2" 873-120-2109 873-120-3109 873-120-4109
1/8" 1/2" 1-1/2" 873-120-2125 873-120-3125 873-120-4125
3/16" Shank
9/64" 9/16" 2" 873-120-2140 873-120-3140 873-120-4140
5/32" 9/16" 2" 873-120-2156 873-120-3156 873-120-4156
11/64" 9/16" 2" 873-120-2171 873-120-3171 873-120-4171
3/16" 5/8" 2" 873-120-2187 873-120-3187 873-120-4187
1/4" Shank
13/64" 5/8" 2-1/2" 873-120-2203 873-120-3203 873-120-4203
7/32" 5/8" 2-1/2" 873-120-2218 873-120-3218 873-120-4218
15/64" 3/4" 2-1/2" 873-120-2234 873-120-3234 873-120-4234
1/4" 3/4" 2-1/2" 873-120-2250 873-120-3250 873-120-4250
5/16" Shank
17/64" 7/8" 2-1/2" 873-120-2265 873-120-3265 873-120-4265
9/32" 7/8" 2-1/2" 873-120-2281 873-120-3281 873-120-4281
19/64" 7/8" 2-1/2" 873-120-2296 873-120-3296 873-120-4296
5/16" 7/8" 2-1/2" 873-120-2312 873-120-3312 873-120-4312
3/8" Shank
21/64" 7/8" 2-1/2" 873-120-2328 873-120-3328 873-120-4328
11/32" 7/8" 2-1/2" 873-120-2343 873-120-3343 873-120-4343
23/64" 7/8" 2-1/2" 873-120-2359 873-120-3359 873-120-4359
3/8" 7/8" 2-1/2" 873-120-2375 873-120-3375 873-120-4375
7/16" Shank
25/64" 7/8" 2-1/2" 873-120-2390 873-120-3390 873-120-4390
13/32" 7/8" 2-1/2" 873-120-2406 873-120-3406 873-120-4406
27/64" 7/8" 2-1/2" 873-120-2421 873-120-3421 873-120-4421
7/16" 1" 2-1/2" 873-120-2437 873-120-3437 873-120-4437
1/2" Shank
29/64" 1" 3" 873-120-2453 873-120-3453 873-120-4453
15/32" 1" 3" 873-120-2468 873-120-3468 873-120-4468
31/64" 1" 3" 873-120-2484 873-120-3484 873-120-4484
1/2" 1" 3" 873-120-2500 873-120-3500 873-120-4500
9/16" Shank
33/64" 1-1/4" 3-1/2" 873-120-2515 873-120-3515 873-120-4515
17/32" 1-1/4" 3-1/2" 873-120-2531 873-120-3531 873-120-4531
35/64" 1-1/4" 3-1/2" 873-120-2546 873-120-3546 873-120-4546
9/16" 1-1/4" 3-1/2" 873-120-2562 873-120-3562 873-120-4562
5/8" Shank
37/64" 1-1/4" 3-1/2" 873-120-2578 873-120-3578 873-120-4578
19/32" 1-1/4" 3-1/2" 873-120-2593 873-120-3593 873-120-4593
39/64" 1-1/4" 3-1/2" 873-120-2609 873-120-3609 873-120-4609
5/8" 1-1/4" 3-1/2" 873-120-2625 873-120-3625 873-120-4625
3/4" Shank
41/64" 1-1/2" 4" 873-120-2640 873-120-3640 873-120-4640
21/32" 1-1/2" 4" 873-120-2656 873-120-3656 873-120-4656
43/64" 1-1/2" 4" 873-120-2671 873-120-3671 873-120-4671
11/16" 1-1/2" 4" 873-120-2687 873-120-3687 873-120-4687
45/64" 1-1/2" 4" 873-120-2703 873-120-3703 873-120-4703
23/32" 1-1/2" 4" 873-120-2718 873-120-3718 873-120-4718
47/64" 1-1/2" 4" 873-120-2734 873-120-3734 873-120-4734
3/4" 1-1/2" 4" 873-120-2750 873-120-3750 873-120-4750
7/8" Shank
49/64" 1-1/2" 4" 873-120-2765 873-120-3765 873-120-4765
25/32" 1-1/2" 4" 873-120-2781 873-120-3781 873-120-4781
51/64" 1-1/2" 4" 873-120-2796 873-120-3796 873-120-4796
13/16" 1-1/2" 4" 873-120-2812 873-120-3812 873-120-4812
53/64" 1-1/2" 4" 873-120-2828 873-120-3828 873-120-4828
27/32" 1-1/2" 4" 873-120-2843 873-120-3843 873-120-4843
55/64" 1-1/2" 4" 873-120-2859 873-120-3859 873-120-4859
7/8" 1-1/2" 4" 873-120-2875 873-120-3875 873-120-4875
1" Shank
57/64" 1-1/2" 4" 873-120-2890 873-120-3890 873-120-4890
29/32" 1-1/2" 4" 873-120-2906 873-120-3906 873-120-4906
59/64" 1-1/2" 4" 873-120-2921 873-120-3921 873-120-4921
15/16" 1-1/2" 4" 873-120-2937 873-120-3937 873-120-4937
61/64" 1-1/2" 4" 873-120-2953 873-120-3953 873-120-4953
31/32" 1-1/2" 4" 873-120-2968 873-120-3968 873-120-4968
63/64" 1-1/2" 4" 873-120-2984 873-120-3984 873-120-4984
1" 1-1/2" 4" 873-120-2100 873-120-3100 873-120-4100
    There are no products in this category.
